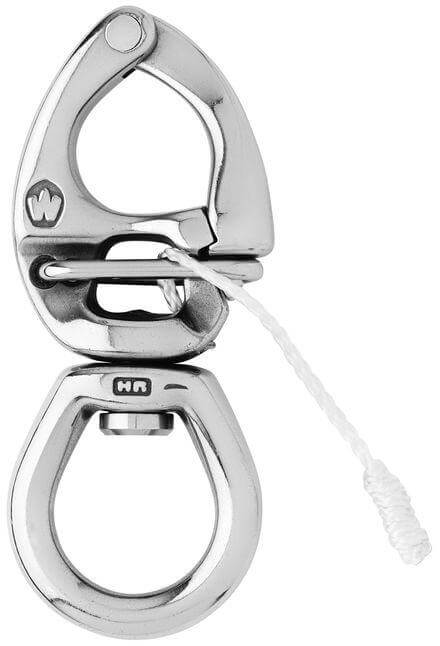

    Wichard HR Snap Shackle – Swivel, Large Bail, Length 145 mm


    The Wichard HR Swivel Snap Shackle with Large Bail in the 145 mm size is a heavy-duty quick-release fitting designed for very high load running rigging applications on larger sailing yachts. Manufactured in France from HR (High Resistance) stainless steel, it offers exceptional strength, fatigue resistance, and long-term corrosion protection in demanding offshore environments.

    As the largest size in the Large Bail range, this 145 mm model is intended for applications where maximum working load and secure attachment are critical. The Large Bail accommodates thick ropes, soft shackles, and webbing strops with ease, while the integrated swivel prevents torsional loading and ensures correct alignment under load.

    The robust quick-release plunger mechanism allows positive disengagement even when the shackle is loaded, providing a vital safety function when rapid release is required in high-load situations. With a Safe Working Load of 2800 kg, this snap shackle is ideally suited to primary sheets, traveller systems, and major control lines on performance cruisers and racing yachts.

    Key features
    • HR stainless steel construction for maximum strength and corrosion resistance
    • Large bail for attachment to thick ropes, soft shackles, and webbing
    • Integrated swivel to eliminate torsional loading under high tension
    • Quick-release mechanism operable under load
    • Maximum load capacity within the Large Bail range
    Typical applications
    • Primary sheets and heavily loaded control systems
    • Traveller and high-load trimming hardware
    • Performance cruising and racing yachts
    • Safety-critical applications requiring rapid release under extreme load

    Safe Working Load: 2800 kg

    Overall length: 145 mm


    Especificaciones

    Boat
    Estilo Swivel Bail (Large)
    Load
    SWL (kg) 2800
    NBL (kg) 6300
    Dimensions
    A (mm) 30
    B (mm) 35.5
    Longitud total (mm) 145
    Material
    Material Stainless Steel
    Grado del material AISI 630 (17-4 / HR)
    Compatibility
    Tipo de asa Large swivel eye
    Weight
    Peso (g) 396
