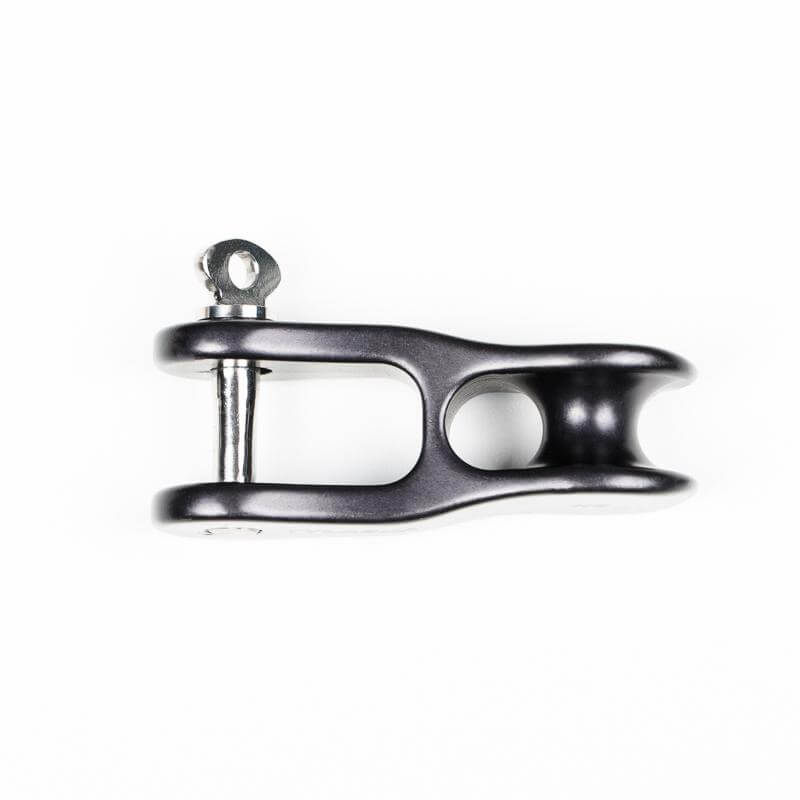

Specifications for Tylaska H5 Grillete de driza de aluminio
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 8 |
| Boat | |
| Eslora de barco recomendada - Máx (ft) | 30 |
| Eslora de barco recomendada - Mín (ft) | 20 |
| Load | |
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
| A (mm) | 65.3 |
| B (mm) | 25.4 |
| C (mm) | 4.6 |
| D (mm) | 35.6 |
| E (mm) | 23.1 |
| F (mm) | 16.1 |
| G (mm) | 9.5 |
| H (mm) | 19.1 |
| I (mm) | 19.1 |
| J (mm) | 6.6 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Peso (g) | 37 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 8 |
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 30 |
| Eslora de barco recomendada - Mín (ft) | 20 |
| Load | |
|---|---|
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
|---|---|
| A (mm) | 65.3 |
| B (mm) | 25.4 |
| C (mm) | 4.6 |
| D (mm) | 35.6 |
| E (mm) | 23.1 |
| F (mm) | 16.1 |
| G (mm) | 9.5 |
| H (mm) | 19.1 |
| I (mm) | 19.1 |
| J (mm) | 6.6 |
| Material | |
|---|---|
| Material | 17-4PH |
| Weight | |
|---|---|
| Peso (g) | 37 |
