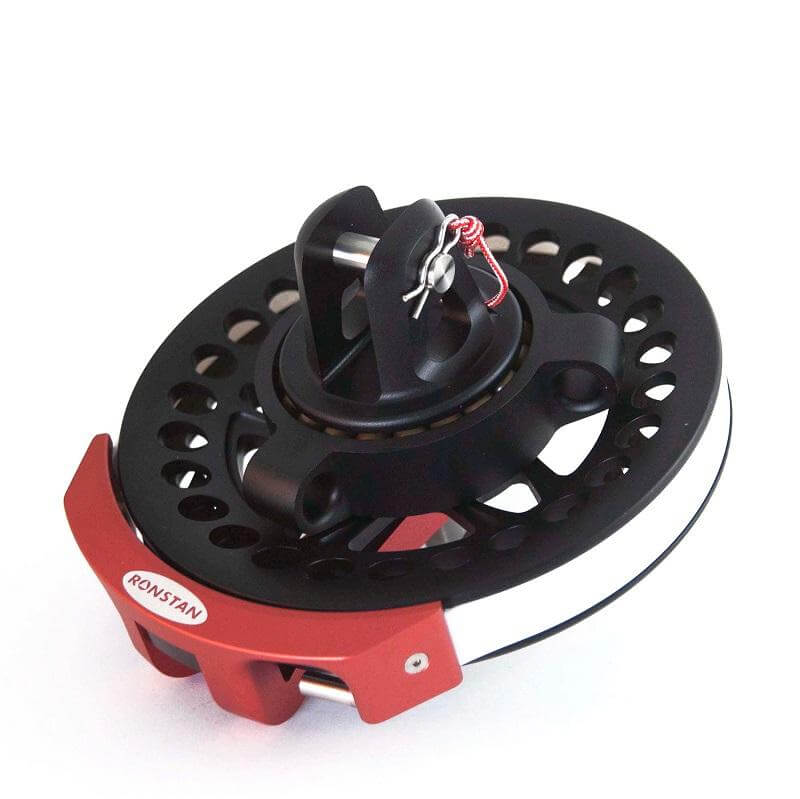

Specifications for Ronstan Enrollador Serie 160 - Tambor, top-down
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat | |
| Eslora de barco recomendada - Máx (ft) | 46 |
| Load | |
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| Dimensions | |
| A (mm) | 155.1 |
| B (mm) | 22.5 |
| C (mm) | 93.5 |
| D (mm) | 131.5 |
| E (mm) | 33.4 |
| F (mm) | 18.7 |
| G (mm) | 9.9 |
| H (mm) | 10 |
| I (mm) | 160 |
| J (mm) | 175 |
| K (mm) | 38.9 |
| L (mm) | 11 |
| Ø del tambor (mm) | 160 |
| Ø del pasador de horquilla (mm) | 10 |
| Ancho de horquilla (mm) | 18.7 |
| Weight | |
| Peso (g) | 964 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Ronstan Generation 2 – Rotation stop
|
|
|
|
Ronstan Generation 2 – installation of furling line
|
|
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S160 Gen 2 Top Down Furler Technical Drawing
|
