Specifications for Motón de driza UBI Maior para 2:1 - SWL 5.0T
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 16 |
| Boat | |
| Load | |
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Dimensions | |
| A (mm) | 22 |
| B (mm) | 58 |
| Ø del pasador (mm) | 14 |
| Ø de roldana (mm) | 50 |
| Material | |
| Material | Aluminium |
| Grado del material | 6082-T6 |
| Weight | |
| Peso (g) | 380 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

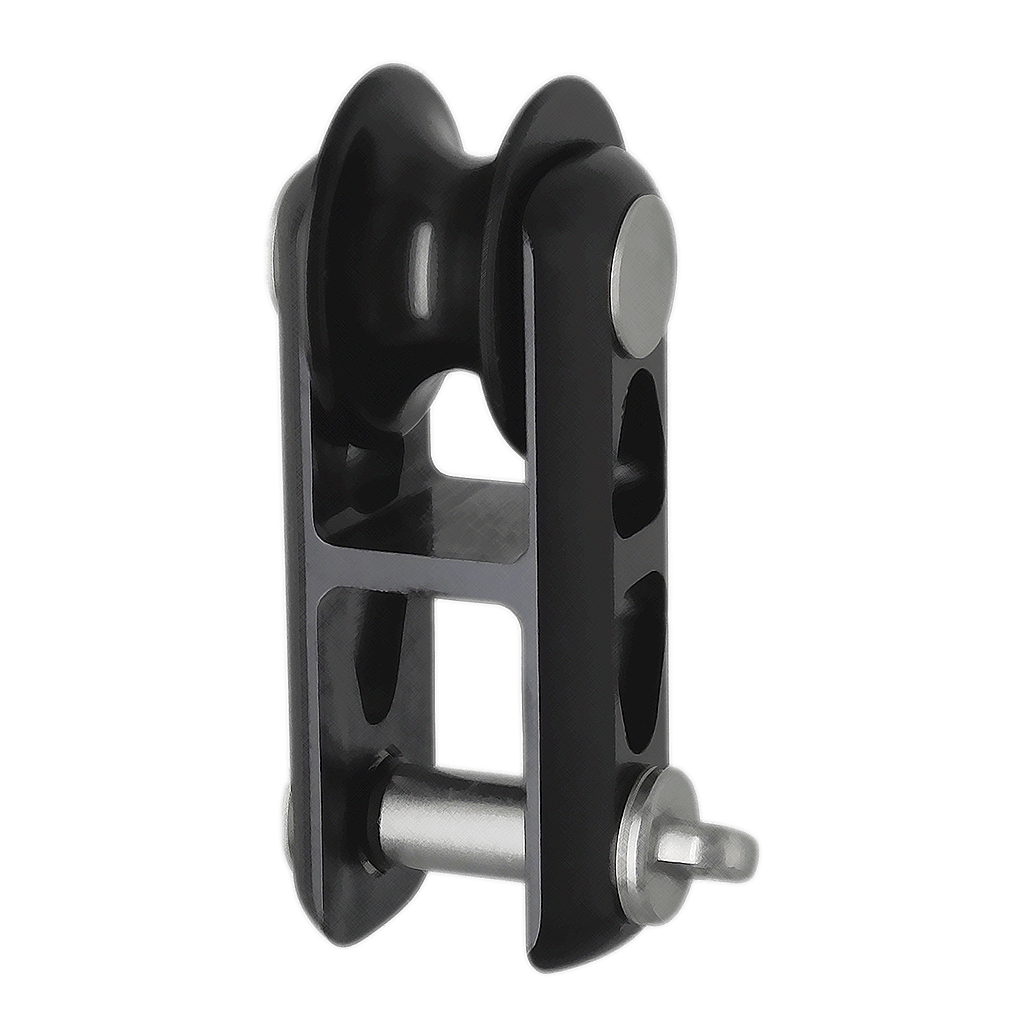

These Halyard blocks from Uni Maior act as a 2:1 purchase system on the halyard, halving the load of the hoist. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 16 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Dimensions | |
|---|---|
| A (mm) | 22 |
| B (mm) | 58 |
| Ø del pasador (mm) | 14 |
| Ø de roldana (mm) | 50 |
| Material | |
|---|---|
| Material | Aluminium |
| Grado del material | 6082-T6 |
| Weight | |
|---|---|
| Peso (g) | 380 |
