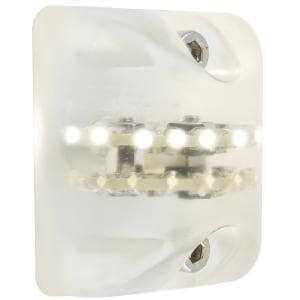

Mantagua TINY 2 NM Masthead (Steaming) Light – Vertical (White 225°)
The Mantagua TINY Range is purpose-built for small yachts, day boats, and racing yachts under 12 metres, offering a compact, ultra-lightweight, and highly efficient navigation light solution. Designed for simplicity and durability, the range delivers full COLREG compliance while keeping power consumption and installation requirements to a minimum — ideal for smaller electrical systems and lightweight rigging setups.
The TINY 2 NM Masthead Light provides a 225° forward-facing white beam with a 2 nautical mile visibility range, meeting COLREG requirements for power-driven vessels and sailing yachts under motor. Although officially defined as a “masthead light” under COLREG regulations, it is more commonly known as a steaming light, as it is typically mounted partway up the mast rather than at the masthead.
Compact and fully sealed in epoxy resin, this light offers exceptional resistance to vibration, shock, and saltwater exposure. With an IP67 waterproof rating, it provides long-lasting reliability in the toughest marine environments. Operating on 12 VDC, the light consumes just 1.2 W, delivering bright, consistent illumination with extremely low power draw — ideal for small or performance yachts.
Supplied with 10 metres of pre-fitted cable, the TINY Masthead (Steaming) Light is simple to install and fully VHF/AIS compatible, ensuring no interference with onboard communication or navigation systems.
Key features:
- Compact vertical-mount LED masthead (steaming) light for boats under 12 m
- White 225° beam, 2 NM visibility (COLREG compliant)
- Also known as a steaming light – mounted partway up the mast, not at the masthead
- Fully epoxy resin-sealed – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight design: approx. 60 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 12 VDC
- Very low power draw (1.2 W) – ideal for small boat electrical systems
- Supplied with 10 m of cable for easy installation
- VHF/AIS friendly – no interference with onboard systems
- Maintenance-free and highly durable construction for long service life
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 9-30 |
| Tipo de alimentación | dc. |
| Potencia (W) | 1.2 |
| Ángulo de haz (grados) | 225 |
| Intensidad luminosa (cd) | >5.4 |
| Visibilidad (NM) | 2 |
| Resistencia al agua | IP67 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Altura (mm) | 45 |
| Profundidad total (mm) | 27 |
| Ancho total (mm) | 35 |
| Material | |
|---|---|
| Material | Epoxy resin |
| Weight | |
|---|---|
| Peso (g) | 60 |
| Garantía (años) | 2 |
