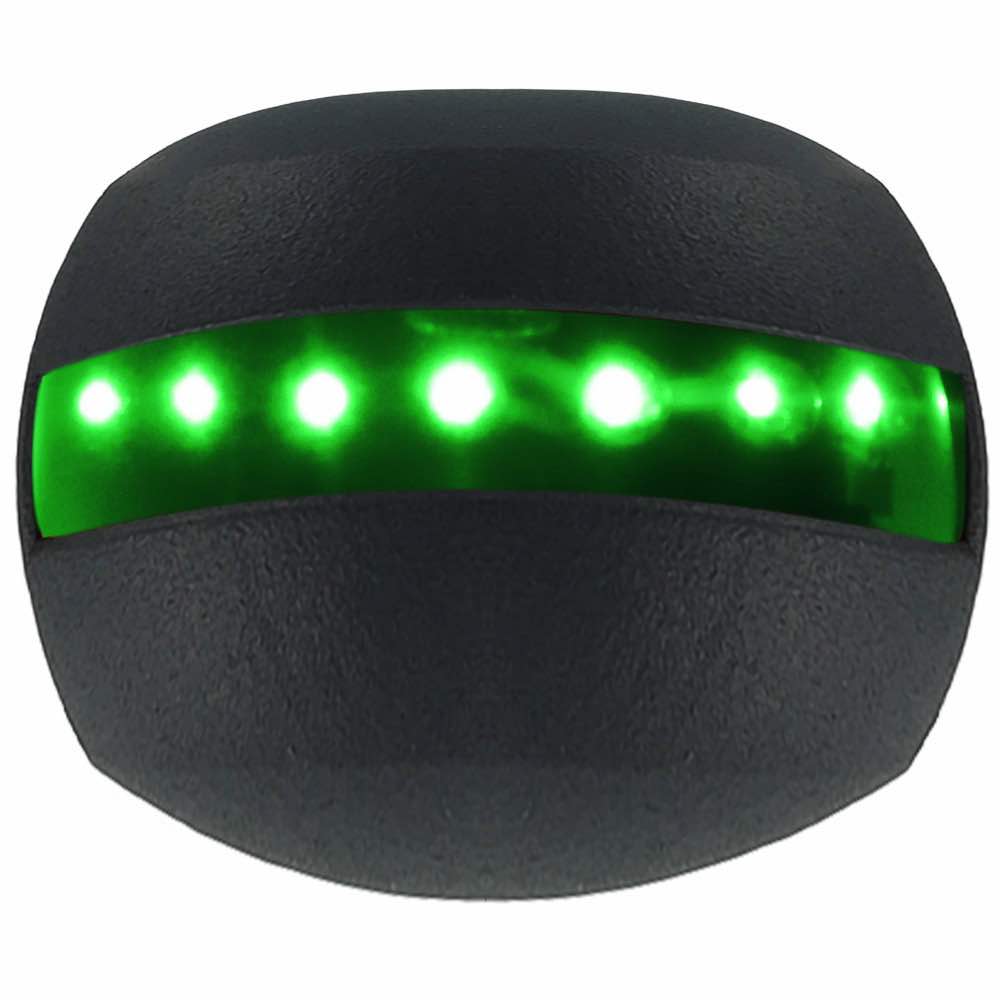

Mantagua RACING 2NM Luz de navegación de estribor - Vertical (Verde 112.5°)
Mantagua RACING 2 NM Starboard Navigation Light – Vertical (Green 112.5°)
The Mantagua RACING Range is purpose-built for offshore and inshore racing yachts, where every gram, watt, and millimetre of profile matters. Designed to meet COLREG standards for vessels under 20 metres, these lights combine race-proven durability, low weight, and exceptional efficiency — ideal for high-performance sailing.
The RACING 2 NM Starboard Navigation Light emits a 112.5° green beam with a 2 nautical mile visibility range, ensuring compliant and highly visible illumination for the starboard side of the vessel. Its vertical mounting configuration is designed for installation on pushpits, rails, or transoms, providing a low-drag, compact profile perfectly suited to competitive yachts where aerodynamics and aesthetics are key.
Each Mantagua RACING light integrates dual independent LED circuits with separate power feeds, offering redundancy required under offshore race regulations. The fully resin-sealed construction ensures complete waterproofing and vibration resistance, providing dependable operation even in extreme racing conditions.
This model is available in two finish options — a black cover or a white cover — allowing it to blend seamlessly with the yacht’s deck hardware or design scheme.
Rated IP67 waterproof, this light operates on 9–30 VDC, consumes only 0.8 W, and is fully VHF/AIS compatible, guaranteeing no interference with onboard systems or communications.
Key features:
- Vertical-mount LED starboard navigation light for racing yachts
- Green 112.5° beam, 2 NM visibility (COLREG compliant)
- Dual LED circuits with separate power feeds for redundancy and race compliance
- Compact, aerodynamic design – ideal for pushpit or transom mounting
- Available with black or white cover options
- Fully resin-sealed housing – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight: approx. 140 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with onboard systems
- Extremely low power draw (0.8 W) – perfect for energy-efficient race yachts
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 9-30 |
| Tipo de alimentación | dc. |
| Potencia (W) | 0.8 |
| Ángulo de haz (grados) | 112.5 |
| Intensidad luminosa (cd) | >5.4 |
| Visibilidad (NM) | 2 |
| Resistencia al agua | IP67 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Altura (mm) | 55 |
| Profundidad total (mm) | 34 |
| Ancho total (mm) | 68 |
| Material | |
|---|---|
| Material | Epoxy resin |
| Undefined | |
|---|---|
| Color* | Black o White |
| Weight | |
|---|---|
| Peso (g) | 140 |
| Garantía (años) | 2 |
