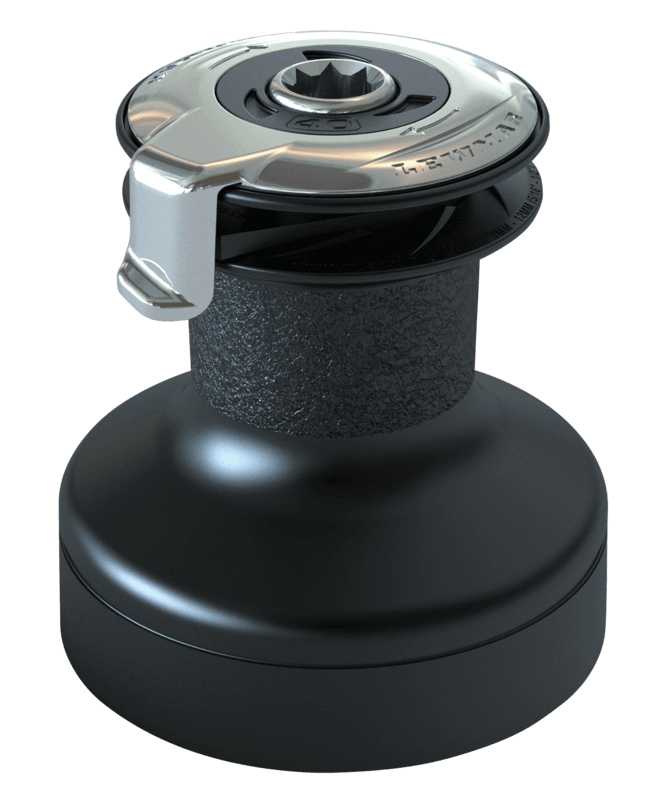

Specifications for Lewmar 45 2 velocidades Winche autoblocante EVOⓇ de aleación negra
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Autocazante |
| Load | |
| SWL (kg) | 1200 |
| Dimensions | |
| B (mm) | 168 |
| D (mm) | 87 |
| H (mm) | 177.7 |
| L (mm) | 84 |
| Ø de base (mm) | 168 |
| Ø del tambor (mm) | 87 |
| Altura (mm) | 177.7 |
| Altura de entrada del cabo (mm) | 84 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.4 |
| Relación de engranajes 2 (X : 1) | 7.6 |
| Velocidades (manual) | 2 velocidades |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 233 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 73 |
| Relación de potencia 1 (X : 1) | 13.9 |
| Relación de potencia 2 (X : 1) | 44.8 |
| Material | |
| Material | Aluminio |
| Undefined | |
| Tamaño | 45 |
| Weight | |
| Peso (g) | 7100 |
| Garantía (años) | 7 años |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
|
Lewmar Evo Winch
Overview of the EVO winch from Lewmar
|
|
|
30-50 EVO EXPLODE.pdf
Exploded Technical Drawing
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
|
|
|
Lewmar_EVO_B13124_Iss_2-3.pdf
|
|
|
|
Evo winch service-B2304iss9_2-2.pdf
|
