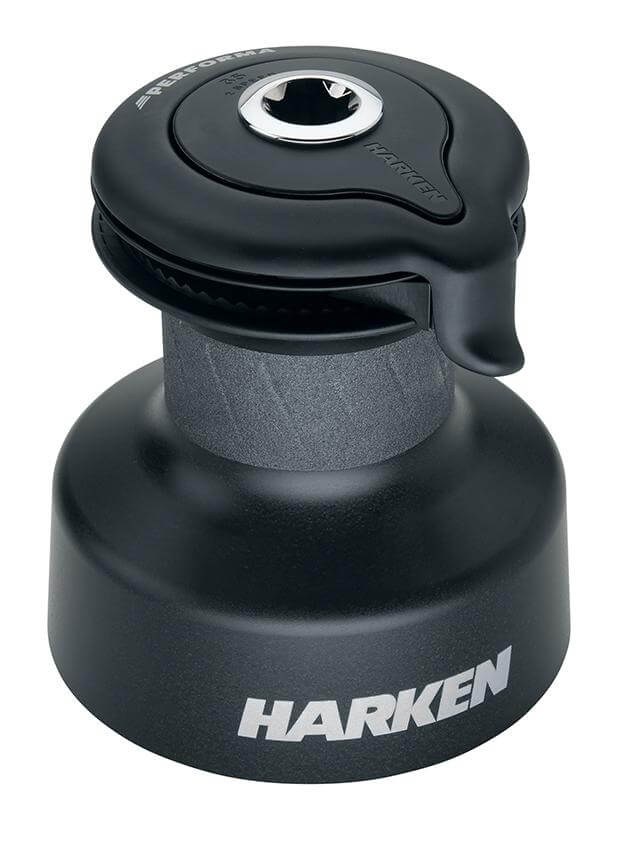

Specifications for Harken 35 2-Speed S/T Performa™ Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 12 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Self-Tailing |
| Load | |
| SWL (kg) | 650 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 149 |
| C (mm) | 170 |
| D (mm) | 79 |
| Ø de base (mm) | 149 |
| Ø del tambor (mm) | 80 |
| Altura (mm) | 170 |
| Altura de entrada del cabo (mm) | 79 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.13 |
| Relación de engranajes 2 (X : 1) | 5.65 |
| Velocidades (manual) | 2-Speed |
| Relación de potencia 1 (X : 1) | 13.5 |
| Relación de potencia 2 (X : 1) | 35.9 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Tamaño | 35 |
| Weight | |
| Peso (g) | 3600 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 12 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 650 |
| Dimensions | |
|---|---|
| A (mm) | 80 |
| B (mm) | 149 |
| C (mm) | 170 |
| D (mm) | 79 |
| Ø de base (mm) | 149 |
| Ø del tambor (mm) | 80 |
| Altura (mm) | 170 |
| Altura de entrada del cabo (mm) | 79 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 2.13 |
| Relación de engranajes 2 (X : 1) | 5.65 |
| Velocidades (manual) | 2-Speed |
| Relación de potencia 1 (X : 1) | 13.5 |
| Relación de potencia 2 (X : 1) | 35.9 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Tamaño | 35 |
| Weight | |
|---|---|
| Peso (g) | 3600 |
