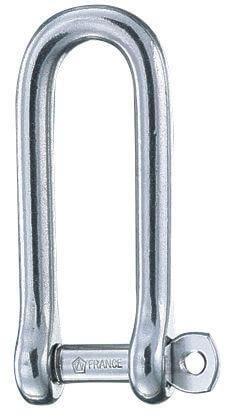

Specifications for Grillete en D Wichard - Dia 8 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 1000 |
| NBL (kg) | 3600 |
| Dimensions | |
| A (mm) | 62 |
| B (mm) | 16 |
| C (mm) | 9 |
| D (mm) | 17 |
| E (mm) | 8 |
| F (mm) | 82 |
| G (mm) | 43 |
| Ø del pasador (mm) | 9 |
| Material | |
| Material | Acero inoxidable |
| Grado del material | AISI 316L |
| Weight | |
| Peso (g) | 92 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| NBL (kg) | 3600 |
| Dimensions | |
|---|---|
| A (mm) | 62 |
| B (mm) | 16 |
| C (mm) | 9 |
| D (mm) | 17 |
| E (mm) | 8 |
| F (mm) | 82 |
| G (mm) | 43 |
| Ø del pasador (mm) | 9 |
| Material | |
|---|---|
| Material | Acero inoxidable |
| Grado del material | AISI 316L |
| Weight | |
|---|---|
| Peso (g) | 92 |
