B&G Zeus 3S Download Centre
|

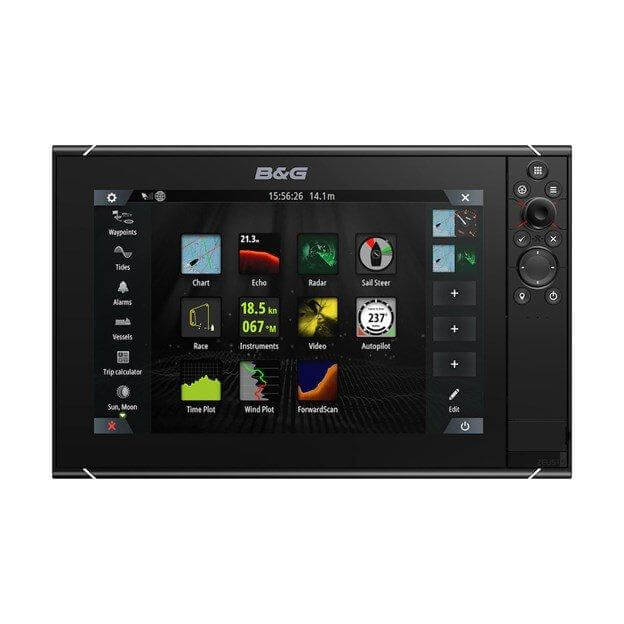

The Zeus 3S 12” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 12-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
Box includes:
Zeus³/3S 12 Sun Cover
Power Cable, 4-Pin
NSS12 evo3/3S & Zeus³/3S 12 Edge Bezels
NSS12 evo3/3S & Zeus³/3S 12 Mounting Bracket
NSS12 evo3/3S & Zeus³/3S 12 Dash Mount Kit
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 10 - 31.2 |
| Potencia máx (W) | 28 |
| Resolución de pantalla | 800 x 1280 |
| Frecuencia de refresco (Hz) | 10 |
| Ángulo de visión (grados) | 80 |
| Resistencia al agua | IPX7 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Profundidad total (mm) | 98 |
| Altura total (mm) | 225 |
| Ancho total (mm) | 352 |
| Weight | |
|---|---|
| Peso (g) | 3100 |
| Garantía (años) | 2 |
