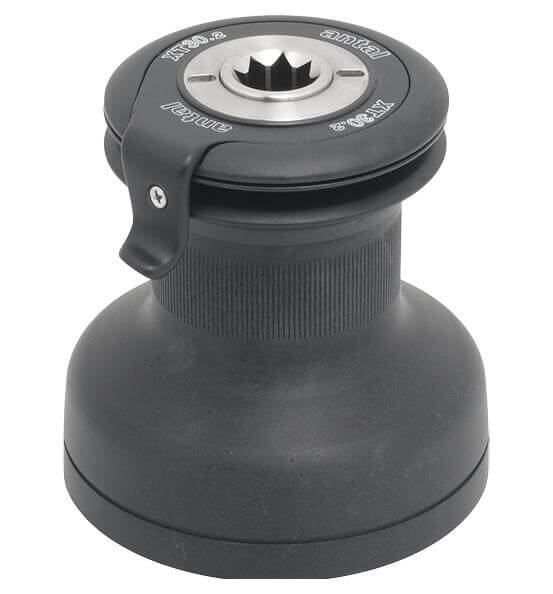

Specifications for Antal 30 winche autocazante de aluminio de 2 velocidades
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Cabo recomendado - Ø mín (mm) | 6 |
| Boat | |
| Estilo | Autocazante |
| Dimensions | |
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 73 |
| Altura (mm) | 135 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1 |
| Relación de engranajes 2 (X : 1) | 4.1 |
| Velocidades (manual) | 2 velocidades |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 229 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 58 |
| Relación de potencia 1 (X : 1) | 7 |
| Relación de potencia 2 (X : 1) | 28 |
| Material | |
| Material | Aluminio |
| Undefined | |
| Tamaño | 30 |
| Weight | |
| Peso (g) | 2900 |
| Garantía (años) | 3 años |
Two Speed Winch: Direct, Reduced
The two smallest models (XT16.2 and XT30.2) have one reduced speed, giving a slow but powerful gear and addition of a direct speed, giving a faster recovery gear, which, combined with reduced weight and an automatic self-tailing for very thin lines, makes these models the best choice for racing.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Cabo recomendado - Ø mín (mm) | 6 |
| Boat | |
|---|---|
| Estilo | Autocazante |
| Dimensions | |
|---|---|
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 73 |
| Altura (mm) | 135 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 1 |
| Relación de engranajes 2 (X : 1) | 4.1 |
| Velocidades (manual) | 2 velocidades |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 229 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 58 |
| Relación de potencia 1 (X : 1) | 7 |
| Relación de potencia 2 (X : 1) | 28 |
| Material | |
|---|---|
| Material | Aluminio |
| Undefined | |
|---|---|
| Tamaño | 30 |
| Weight | |
|---|---|
| Peso (g) | 2900 |
| Garantía (años) | 3 años |
