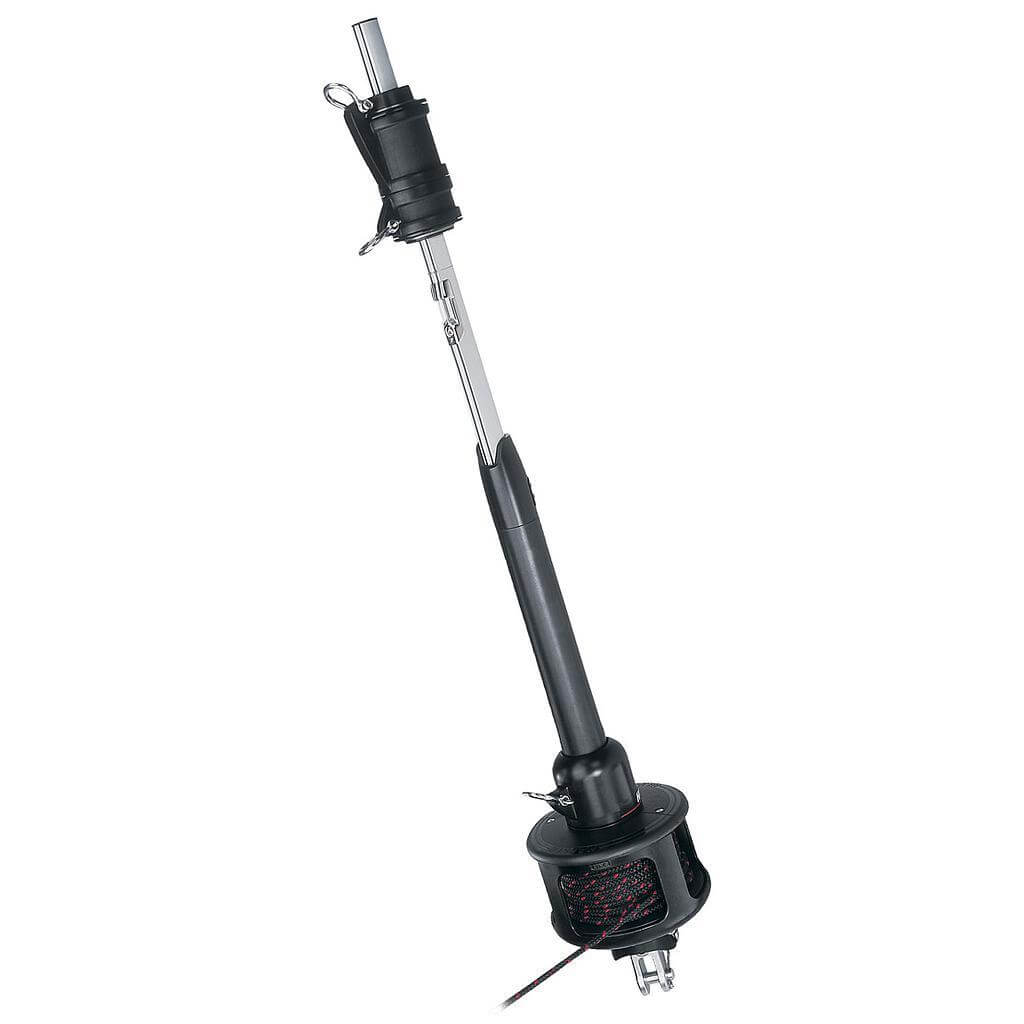

Specifications for Harken MKIV Unit 2 Furling System
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 46 |
| Recommended Boat size - Min (ft) | 35 |
| Dimensions | |
| A (mm) | 143 |
| B (mm) | 231 |
| C (mm) | 66 |
| D (mm) | 208 |
| E (mm) | 97 |
| F (mm) | 1187 - 1314 |
| G (mm) | 306 - 384 |
| H (mm) | 276 - 348 |
| I (mm) | 85 - 164 |
| J (mm) | 32 |
| K (mm) | 36 |
| Drum Ø (mm) | 208 |
| Pin Ø (mm) | 19.1 |
| Wire Ø Max (mm) | 10 |
| Furling | |
| Extrusion length (mm) | 2130 |
| Extrusion Ø (mm) | 32 |
| Extrusion reference | 7412.30 |
| Extrusion weight (g/m) | 740 |
| Headstay length Max (mm) | 20510 |
| Headstay length Std. (mm) | 16120 |
| Luff groove (Single/Double) | Double |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Rod dash size Max | -22 |
| Rod Ø Max (mm) | 9.53 |
| Weight | |
| Weight (g) | 15195 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 2_DE.pdf
Deutsche Fock Reffen & Rollen Installations Handbuch für H-7412.10 (Unit 2)
|
|
|
|
MKIV Unit 2_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7412.10 (Unit 2)
|
|
|
|
Harken_MKIV_JibFurler_catalogue_2020_EN.pdf
|
