Facnor FX+7000 Click furler set - Bottom up, drum & swivel

Sale

Facnor FX+7000 Click furler set - Bottom up, drum & swivel

$ 4,535.68 4535.68 USD $ 4,774.40

4,145.52 €

5% Off

Spring Sale

Days

Hours

Mins

Secs

Recommended line - Max Ø (mm)
Brand
Boat size (ft)
Range
SWL (kg)
- 7000
NBL (kg)
- 14000
Drum Ø (mm)
Jaw pin Ø (mm)
Jaw width (mm)
- 26
Pin-Pin (mm)
Weight (g)

This combination does not exist.

Unit(s)

ADD TO CART

Code zero furling sets

Facnor FX+7000 Click furler set - Bottom up, drum & swivel

~~$ 4,774.40~~ $ 4,535.68

5% Off

Add to Cart

MPN:

N/A

Brand: Facnor

30-day money-back*

14-day returns*

Express shipping available

*Exclusions apply. See our Refund Policy.

Description

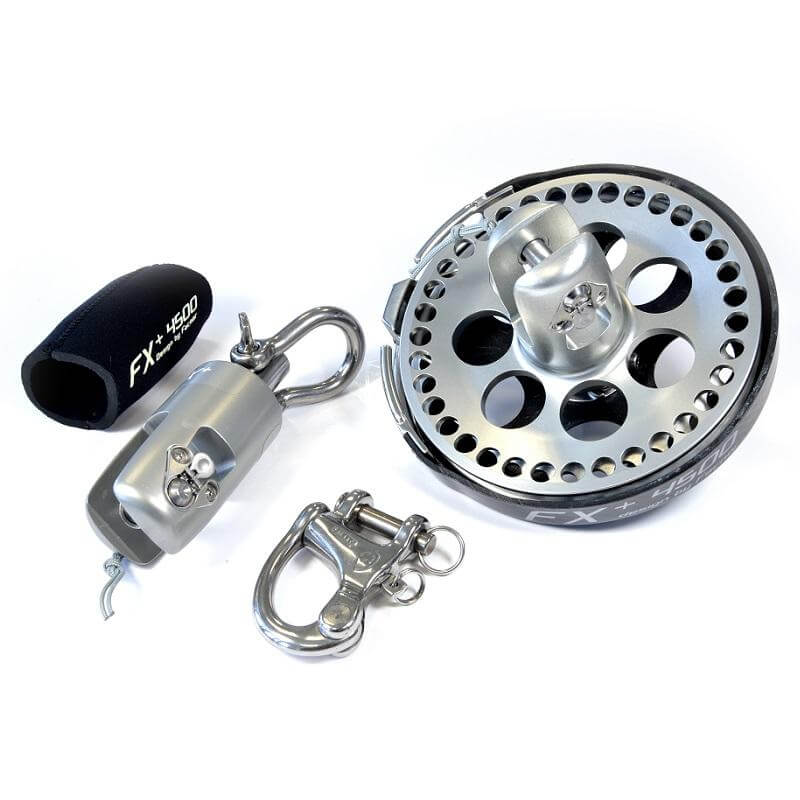

The FX+ range of continuous line furlers enable code zero's and gennakers to be hoisted and furled easily, quickly and safely. The FX+ range has been designed to be ultra-compact in order to maximise sail luff length. Removable furling lines, captive quick release pins, lightweight carbon fibre bodies and robust bearing mechanisms further simplify their use and minimise maintenance. The Facnor FX+7000 Click Furling Pack includes the FX+7000 Click Furling drum with snap shackle, the FX+7000 Swivel with HR Shackle and a neoprene swivel protective cover. The FX+7000-Click Furling drum is identical to the standard FX+7000 drum but with the ratchet mechanism pre-installed. This self-locking device prevents the sail from accidentally unfurling if the line is released mid-furl or during hoisting and lowering. The ratchet works with both clockwise and anti-clockwise rotation. This mechanism should not be used for reefing!

Specifications

Specifications for Facnor FX+7000 Click furler set - Bottom up, drum & swivel

Ropes
Recommended line - Max Ø (mm)	10
Boat
Load
SWL (kg)	7000
NBL (kg)	14000
Dimensions
Drum Ø (mm)	212
Jaw pin Ø (mm)	14
Jaw width (mm)	26
Weight
Weight (g)	2271

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	F_Facnor Catalogue 2019-2020 EN_001.pdf Facnor Products Catalogue 2019-2020
	F-FX+_Facnor Technical Brochure Furlers Spare Parts EN_001.pdf Facnor FX+ Furlers Spare Parts Datasheet
	Facnor_FX+_Instruction_Manual.pdf Facnor FX & FXT Installation and User Manual EN

Specifications

Ropes
Recommended line - Max Ø (mm)	10

Boat

Load
SWL (kg)	7000
NBL (kg)	14000

Dimensions
Drum Ø (mm)	212
Jaw pin Ø (mm)	14
Jaw width (mm)	26

Weight
Weight (g)	2271
