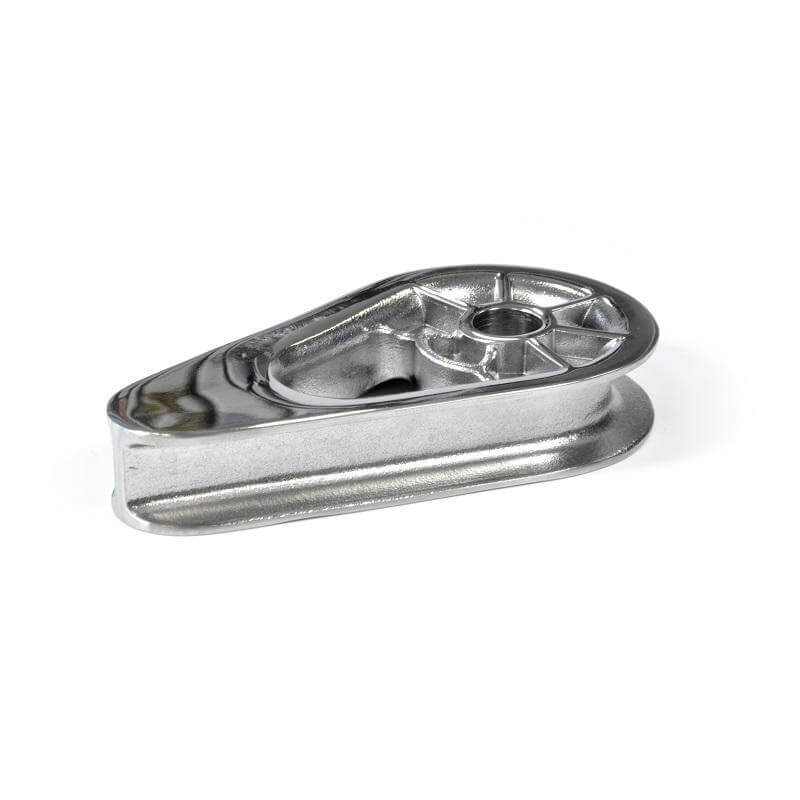

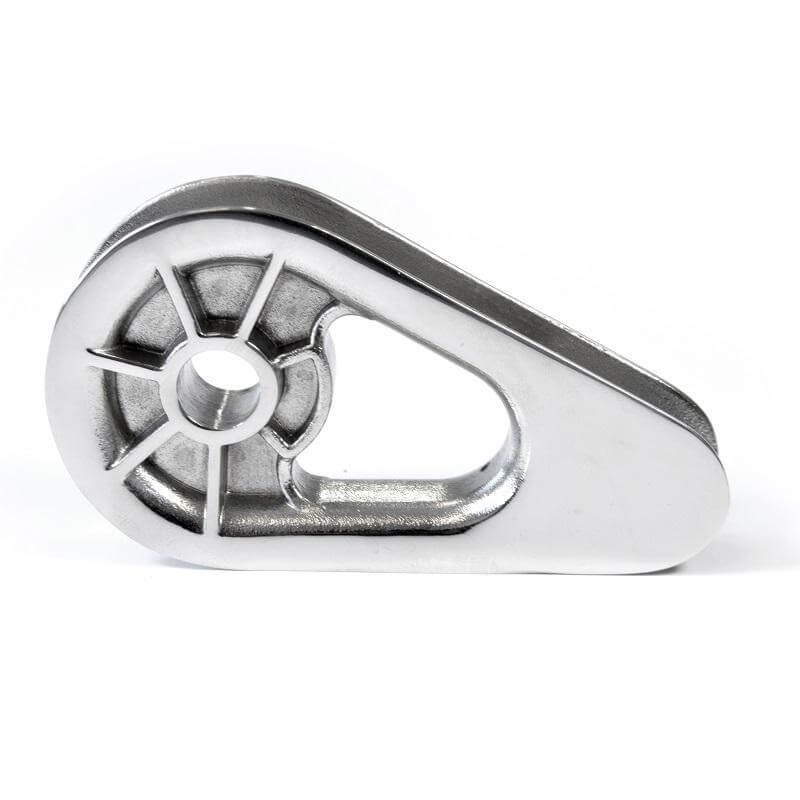

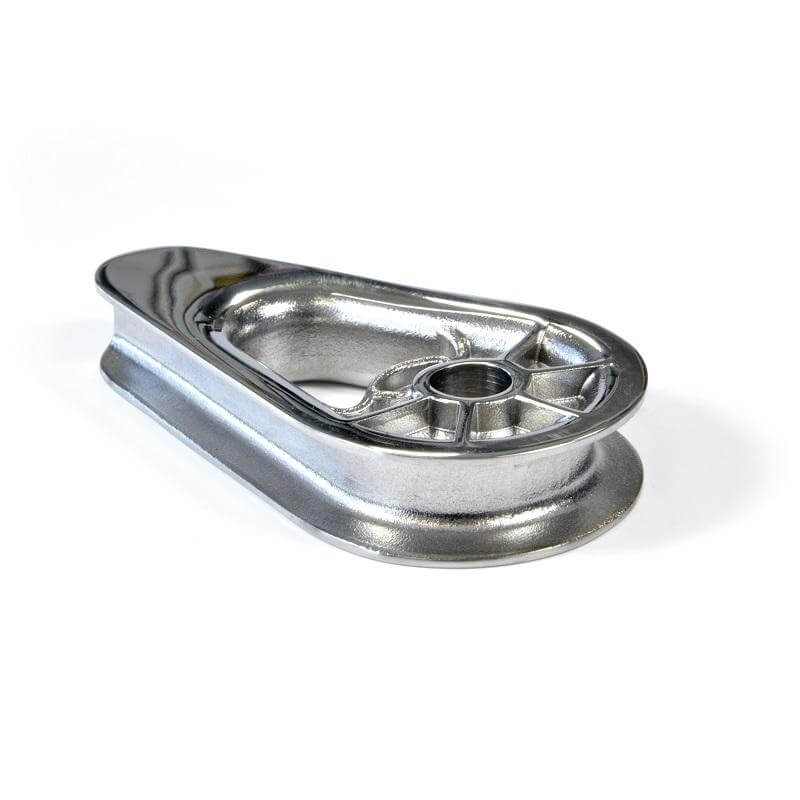

The Facnor FX+2500 Thimble is made from stainless steel and suitable for use with a torsional rope up to 12mm diameter and designed to perfectly interface the jaws of the Facnor FX+2500 drum and swivel. Remember to buy two - one for each end of the cable!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Fitting width (mm) | 17 |
| Pin Ø (mm) | 10 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Weight (g) | 132 |
