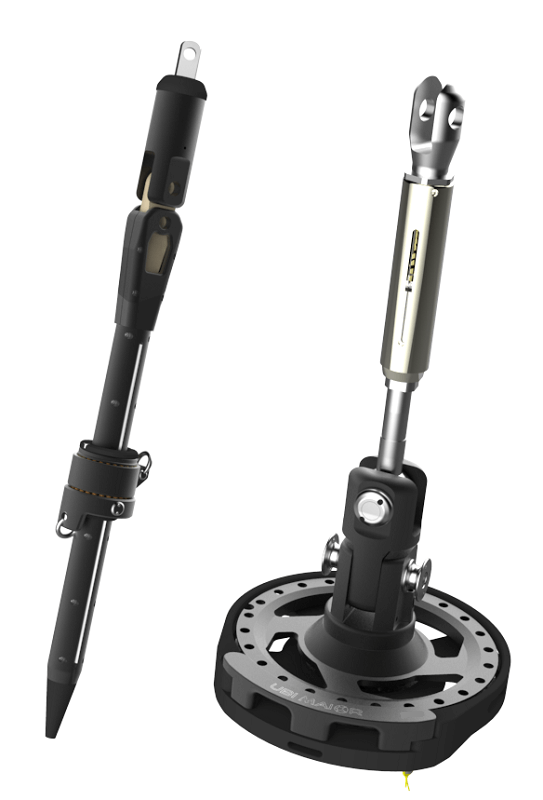

UBI Maior Jiber-TX 22 Furler - Continuous: drum, shaft & halyard swivel

UM-JB-TX_UBI Maior Jiber-TX Furler_001.jpg

UM-JB-TX_UBI Maior Jiber-TX Furler_002.jpg

UM-JB-TX_UBI Maior Jiber-TX Furler_003.jpg

UBI Maior Jiber-TX 22 Furler - Continuous: drum, shaft & halyard swivel

$ 5,839.84 5839.84 USD $ 6,147.20

5,337.50 €

5% Off

Spring Sale

Days

Hours

Mins

Secs

Brand
Recommended Boat size - Max (ft)
- 45
Recommended Boat size - Min (ft)
- 37
SWL (kg)
- 5000
NBL (kg)
- 10000
Drum Ø (mm)
Jaw pin Ø (mm)
Jaw width (mm)
- 23
Pin Ø (mm)
Wire Ø Max (mm)
Rod dash size Max
Weight (g)

This combination does not exist.

Unit(s)

ADD TO CART

Continuous line furlers ,

Manual genoa furlers

UBI Maior Jiber-TX 22 Furler - Continuous: drum, shaft & halyard swivel

~~$ 6,147.20~~ $ 5,839.84

5% Off

Add to Cart

MPN:

N/A

Brand: UBI Maior

30-day money-back*

14-day returns*

Express shipping available

*Exclusions apply. See our Refund Policy.

Description

The JIBER is a unique jib furler system developed by Ubi Maior (patented) and designed for sailors looking for both the performance of a racing foil (tuff-luff) and ease of a furler. The JIBER system employs a structural furler setup, where the entire forestay rotates during furling. This means there is no need for the heavy aluminium extruded foils of a traditional furler. However, most structural furlers have their own drawback: the head of the sail should be lashed at the top for proper furling performance which requires sending a person up the mast to hoist and lower the jib! The JIBER solves this issue with a short javelin fitted to the top of the forestay. The jib is hoisted on a swivelling shuttle which locks onto the javelin at the top and transfers the furling torque to the head of the sail. The JIBER exists for both rod and textile forestays. When combined with a suitable performance forestay the JIBER allows for reefing of the sail just like a traditional furler, while avoiding all that extra weight in the rig. The absence of aluminium foils also improves the aerodynamic performance of the jib, allowing the boat the sail higher and faster. The smaller dimensions of the furler makes room for bigger sails while the halyard tension can be adjusted continuously, as in a traditional jib furler. The JB22FR-TX includes a continuous line drum, the shaft and halyard swivel (shuttle). Note: The Jiber-TX can be sold separately (javelin and shuttle only) and can be fitted on any compatible structural furler with an Armare torsional cable, allowing every boat to be equipped like a modern ocean racer!

Specifications

Specifications for UBI Maior Jiber-TX 22 Furler - Continuous: drum, shaft & halyard swivel

Boat
Recommended Boat size - Max (ft)	45
Recommended Boat size - Min (ft)	37
Load
SWL (kg)	5000
NBL (kg)	10000
Dimensions
Drum Ø (mm)	200
Jaw pin Ø (mm)	13.8
Jaw width (mm)	23
Pin Ø (mm)	16
Wire Ø Max (mm)	9.5
Rigging
Rod dash size Max	22
Weight
Weight (g)	3500

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	JIBER INSTALLATION FORM.pdf
	UM-JB22-TX_UBI Maior Manual For Assembly_001.pdf UBI Maior JB22 Flat Drum Manual For Assembly April 2017 Version 05
	UM-JB_Ubi Maior Jiber Guidilines for Sailmaker_001.pdf Ubi Maior Jiber Sails installation Guidelines for Sailmaker April 2017 Version 05

Specifications

Boat
Recommended Boat size - Max (ft)	45
Recommended Boat size - Min (ft)	37

Load
SWL (kg)	5000
NBL (kg)	10000

Dimensions
Drum Ø (mm)	200
Jaw pin Ø (mm)	13.8
Jaw width (mm)	23
Pin Ø (mm)	16
Wire Ø Max (mm)	9.5

Rigging
Rod dash size Max	22

Weight
Weight (g)	3500
