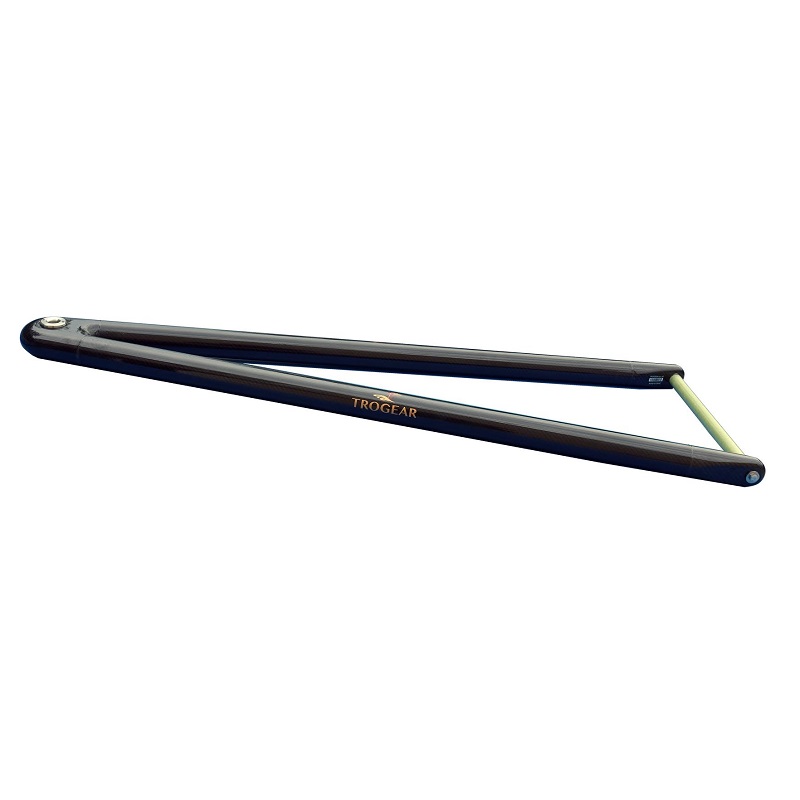

Trogear AS40 Bowsprit, titanium shaft, QR pins

TR-AS40-CQR_Trogear Bowspirit Carbon Shaft_002.jpg

TR-AS_Trogear Bowsprit Shaft In Use_002.jpg

TR-AS_Trogear Bowsprit Shaft In Use_003.jpg

Sale

Trogear AS40 Bowsprit, titanium shaft, QR pins

$ 2,194.29 2194.29 USD $ 2,438.11

2,110.00 €

10% Off

Brand
Recommended Boat size - Max (ft)
- 40
Recommended Boat size - Min (ft)
- 30
Style
SWL (kg)
- 1814
NBL (kg)
- 3628
Outside Ø (mm)
Total length (mm)
Material
Weight (g)
Warranty (yrs)

This combination does not exist.

Unit(s)

ADD TO CART

Bowsprits

Trogear AS40 Bowsprit, titanium shaft, QR pins

~~$ 2,438.11~~ $ 2,194.29

10% Off

Add to Cart

MPN:

N/A

Brand: Trogear

30-day money-back

14-day returns

Express shipping available

Description

Using a carbon fibre A-frame with a UV-resistant, clear polyurethane finish, Trogear adjustable bowsprits are lightweight, strong and easy to use. The Trogear’s solid, triangular design offers the best weight-to-strength ratio on the market, is easy to install and can be removed if necessary. Uniquely designed with a hinged installation and adjustable bobstay, it can be placed upright to attach sails or stow at the dock. The luff tension of the sail is adjustable from the cockpit via a control line. The AS40 is an ideal retrofit solution for your sailboat and facilitates flying asymmetrical spinnakers and Code 0s. It is suitable for boats up to 40 feet, , with maximum 186M2 asymmetric sail and 150M2 Code 0. The inside width at the hinge is 327mm and the hinge diameter is 25.4mm. Mounting options include: - Through hull - U-bracket set for deck mounting - Carbon fibre side mounts for below deckline installation - Catamaran mounting brackets This product includes the parts needed for through hull installation: - Titanium hinge shaft - Stainless steel marine grade quick release pins - G10 fibreglass hinge tube Bobstay rigging parts are not included. Note that the given working load is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay to the bowsprit. This product comes with a 3 year warranty.

Specifications

Specifications for Trogear AS40 Bowsprit, titanium shaft, QR pins

Boat
Recommended Boat size - Max (ft)	40
Recommended Boat size - Min (ft)	30
Style	Folding
Load
SWL (kg)	1814
NBL (kg)	3628
Dimensions
Outside Ø (mm)	51.25
Total length (mm)	1260
Material
Material	Titanium
Weight
Weight (g)	1900
Warranty (yrs)	3

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	Smartsailing Guide - Trogear Bowsprit Overview.pdf
	Trogear Installation Questionnaire.pdf
	Trogear-Bow-Roller-Bracket-Specs-web.pdf
	TR-Trogear Bowsprit AS40-50 technical drawing.pdf
	TR-Trogear Bowsprit_Adj-bobstay-rigging-9-18.pdf Trogear Adjustable Bobstay - a simple rigging diagram
	TR-Trogear Bowsprit Through Hull Installation Manual EN_001.pdf Trogear Bowsprit Through Hull Installation Manual
	TR-Trogear Bowsprit Instructions for Use EN_001.pdf Trogear Bowsprit User Guidelines
	1-SPEC table-only.pdf Trogear Bowsprit Datasheet
	Trogear-datasheet-2020.pdf Trogear Bowsprit 20'-70' Boats Datasheet

Specifications

Boat
Recommended Boat size - Max (ft)	40
Recommended Boat size - Min (ft)	30
Style	Folding

Load
SWL (kg)	1814
NBL (kg)	3628

Dimensions
Outside Ø (mm)	51.25
Total length (mm)	1260

Material
Material	Titanium

Weight
Weight (g)	1900
Warranty (yrs)	3
