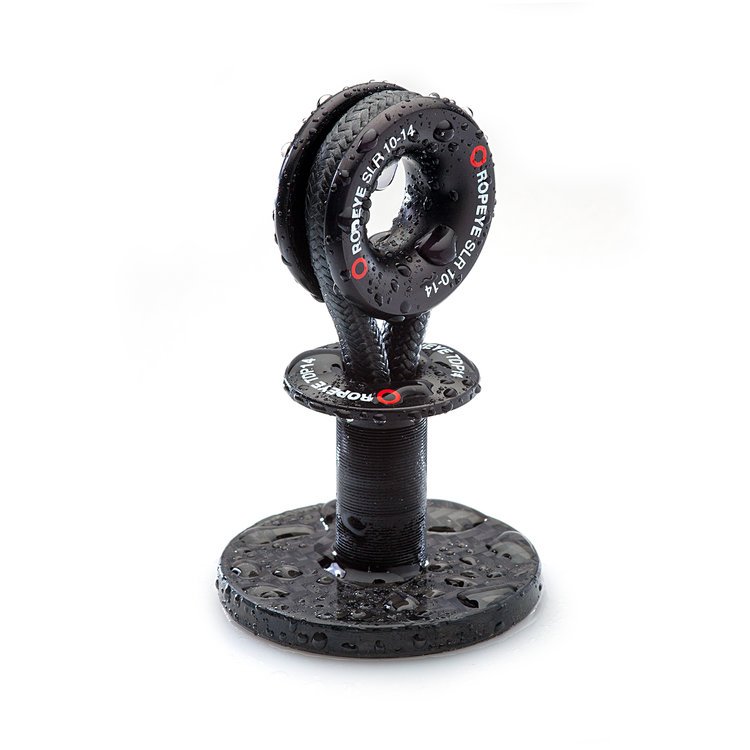

Ropeye Loop 80 Padeye – High-Strength & Lightweight Through-Deck Solution
NOTE: This product is sold as the Loop/pad only - TDP deck bushings and and SLR rope thimbles must be purchased separately
The Ropeye Loop 80 Padeye is a lightweight and durable alternative to traditional metal padeyes, designed for through-deck installations. When used with the Ropeye TDP deck bushing and Ropeye SLR rope thimble, it creates a high-strength, low-profile soft attachment point. Engineered for vertical loads, it offers a secure anchoring solution while significantly reducing rigging weight.
Available in three line sizes – 4mm, 5mm, and 6mm – the Ropeye Loop 80 is offered with either a carbon or glass fibre base, allowing sailors to select the best option for their performance and durability needs.
Key Features:
✔ Lightweight & High-Strength – Optimised for extreme loads while minimising weight.
✔ Designed for Through-Deck Applications – Must be used with a Ropeye TDP deck bushing to protect both the loop and the deck from wear.
✔ Optimised for SLR Rope Thimbles – The use of a Ropeye SLR thimble is recommended to prevent premature wear and enhance longevity.
✔ Customisable Options – Available in 4mm, 5mm, and 6mm line sizes, with either a carbon or glass fibre base for tailored performance.
✔ Reliable Performance – Scientifically and practically tested to ensure maximum durability under heavy loads.
✔ 20° Maximum Loading Angle – Designed for optimal performance under vertical loads, with a maximum deflection angle of 20 degrees.
Applications:
- High-performance soft padeye replacement for traditional metal fittings.
- Ideal for securing blocks, control lines, and soft rigging attachments.
- Used in racing yachts and lightweight performance setups where weight savings are crucial.
Installation:
- Drill the installation hole to the correct size.
- Clean the area with acetone for optimal adhesion.
- Insert the Ropeye TDP deck bushing to protect the loop and deck from abrasion.
- Apply adhesive and press the Ropeye Loop 80 into place.
- Attach the Ropeye SLR rope thimble to the loop for enhanced durability.
- Wait 24 hours before applying any load to allow for proper curing.
Warranty: The Ropeye Loop 80 Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
