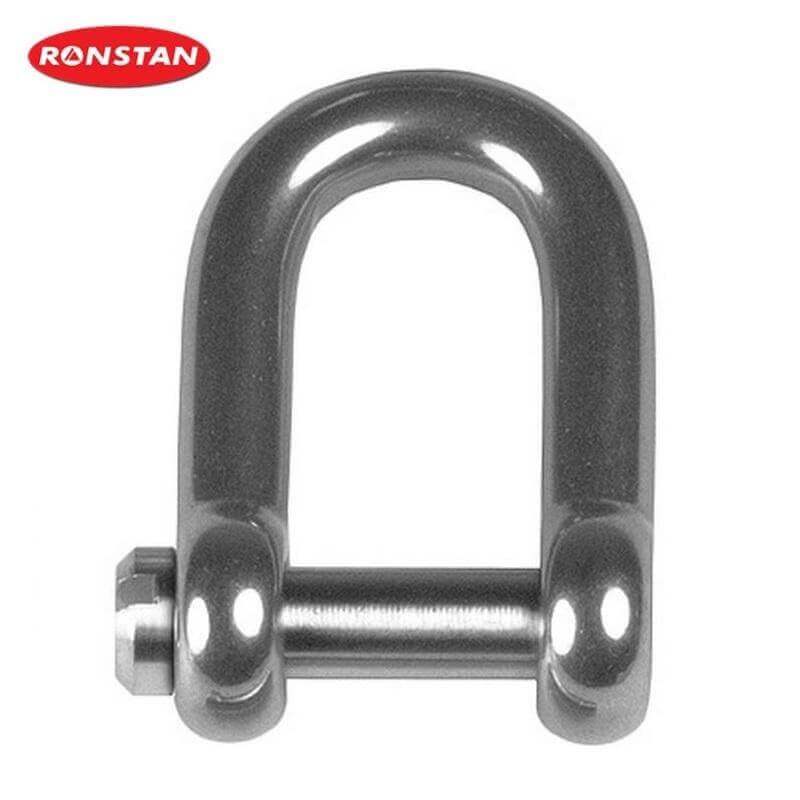

Specifications for Ronstan Series 120 furler - HR shackle
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 2200 |
| NBL (kg) | 4400 |
| Dimensions | |
| A (mm) | 30 |
| B (mm) | 8 |
| C (mm) | 26 |
| D (mm) | 18 |
| Pin Ø (mm) | 8 |
| Material | |
| Material | 17-4PH SS |
| Weight | |
| Weight (g) | 55 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 120 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS212000_Ronstan S120 Gen 2 Furler Drawing_001.PDF
Ronstan Series 120 Gen 2 Furler Drawing
|
|
|
|
R-RS212000_Ronstan S120 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 120 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS_Ronstan Furlers Accessories Compatibility_001.pdf
Ronstan Furlers Accessories Compatibility
|
|
|
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S120 Gen 2 Top Down Furler Technical Drawing
|
