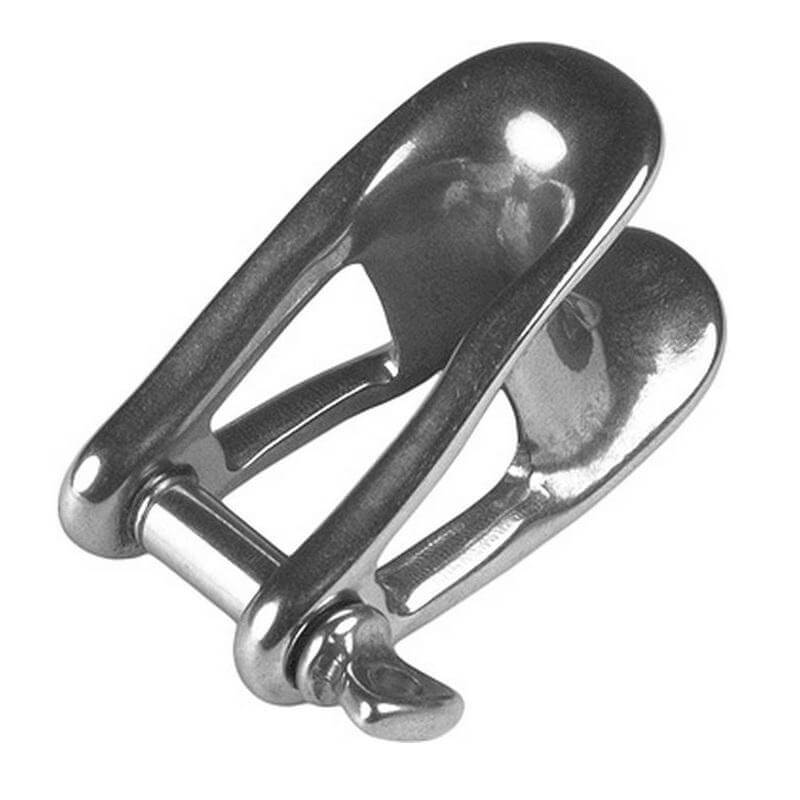

Specifications for Ronstan Series 120 2:1 friction shackle
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 8 |
| Boat | |
| Load | |
| SWL (kg) | 1760 |
| NBL (kg) | 4100 |
| Dimensions | |
| A (mm) | 28 |
| B (mm) | 8 |
| C (mm) | 18 |
| D (mm) | 50 |
| Pin Ø (mm) | 8 |
| Material | |
| Material | AL6061 |
| Weight | |
| Weight (g) | 96 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 120 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS212000_Ronstan S120 Gen 2 Furler Drawing_001.PDF
Ronstan Series 120 Gen 2 Furler Drawing
|
|
|
|
R-RS212000_Ronstan S120 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 120 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS_Ronstan Furlers Accessories Compatibility_001.pdf
Ronstan Furlers Accessories Compatibility
|
|
|
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S120 Gen 2 Top Down Furler Technical Drawing
|
Ronstan's range of continuous line furling systems puts great performance and reliability within the reach of cruising and racing sailors alike. This AL6061 anodised aluminium fairlead can replace the shackle on the furler to provide a 2:1 purchase on the furler attachment. The tack line is dead ended at the deck or end of the bowsprit, runs up around the 2:1 fairlead, back down to a block, and back along the deck to a rope clutch. This configuration is a popular way of adjusting tension in the torsion rope, and hence the luff of the sail.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 8 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1760 |
| NBL (kg) | 4100 |
| Dimensions | |
|---|---|
| A (mm) | 28 |
| B (mm) | 8 |
| C (mm) | 18 |
| D (mm) | 50 |
| Pin Ø (mm) | 8 |
| Material | |
|---|---|
| Material | AL6061 |
| Weight | |
|---|---|
| Weight (g) | 96 |
