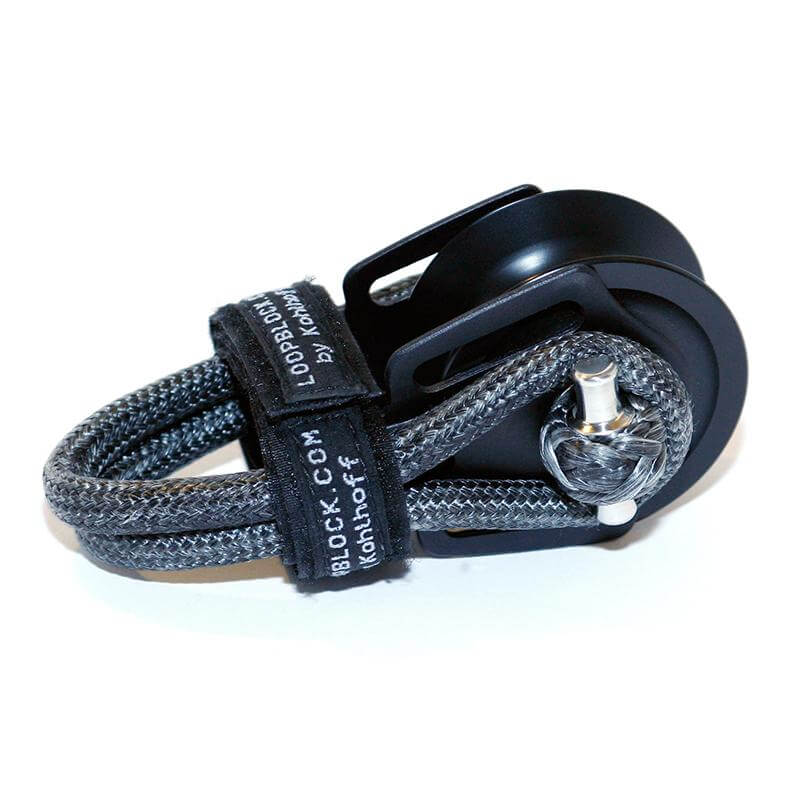

KOHLHOFF LOOP® Blocks are compact and lightweight multi-purpose snatch blocks with a Dyneema® loop fastening and aluminium sheave. The loop is covered with an extra Dyneema® braid to improve abrasion resistance, is terminated in a dogbone plus a velcro strap for security and always remains easy to unfasten, even after full loading. This long loop version increases the range of use and allows the block to articulate. The ball bearing block has a two stage bearing: at lower loads the ball bearing minimises friction and at higher loads the plain bearing comes into effect.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 50 |
| Recommended Boat size - Min (ft) | 40 |
| Load | |
|---|---|
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| Blocks | |
|---|---|
| Bearing type | Ball bearing |
| Ratchet | No |
| Dimensions | |
|---|---|
| Sheave Ø (mm) | 60 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 243 |
