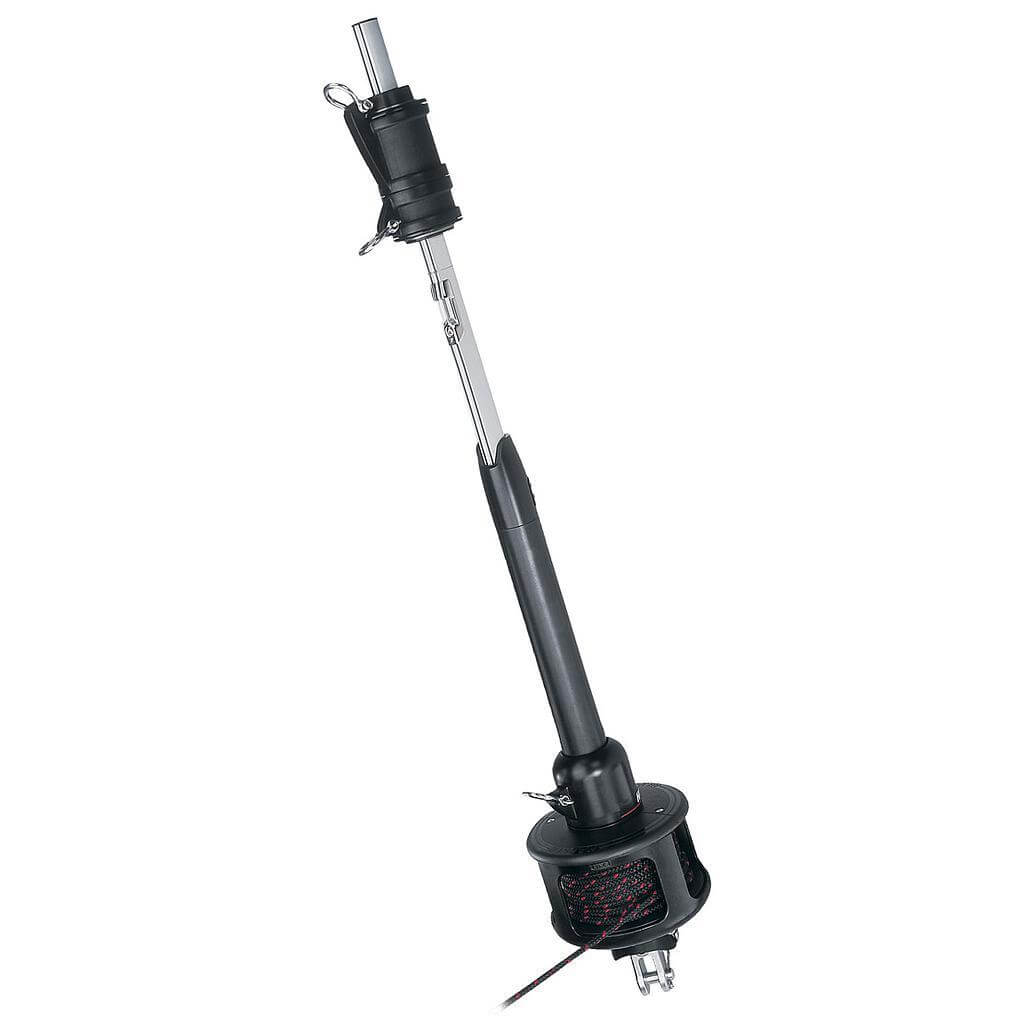

Specifications for Harken MKIV Unit 3 Furling System
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 60 |
| Recommended Boat size - Min (ft) | 45 |
| Dimensions | |
| A (mm) | 186 |
| B (mm) | 296 |
| C (mm) | 86 |
| D (mm) | 247 |
| E (mm) | 121 |
| F (mm) | 1286 |
| G (mm) | 467 |
| H (mm) | 420 |
| I (mm) | 188 |
| J (mm) | 38 |
| K (mm) | 43 |
| Drum Ø (mm) | 247 |
| Pin Ø (mm) | 22.2 |
| Wire Ø Max (mm) | 12 |
| Furling | |
| Extrusion length (mm) | 2130 |
| Extrusion Ø (mm) | 38 |
| Extrusion reference | 7413.30 |
| Extrusion weight (g/m) | 985 |
| Headstay length Max (mm) | 24890 |
| Headstay length Std. (mm) | 22760 |
| Luff groove (Single/Double) | D |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Rod dash size Max | -30 |
| Rod Ø Max (mm) | 11.1 |
| Weight | |
| Weight (g) | 40823 |
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 3:4_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7413.10 (Unit 3), H-7414.10 (Unit 4)
|
|
|
|
Harken_MKIV_JibFurler_catalogue_2020_EN.pdf
|
MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.
For occasional racers, the MKIV line is engineered with ease, durability, and winning in mind. The split drum can be removed easily for use with racing sails, providing the longest possible luff length. Independent halyard and tack swivels furl sail center before head and tack for improved sail shape when reefed, whilst being lightweight, an advantage when hoisted as it reduces pitching and heeling. Stainless steel feeder allows fast singlehanded hoist and sail changes, with the precision-extruded, double-groove foils for smooth sail handling.
To complete this set a toggle assembly is required.
Compatible toggles for MKIV Unit 3
7413.20 3/4
7413.20 7/8
7313.21 3/4
7313.21 7/8
Specifications
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 60 |
| Recommended Boat size - Min (ft) | 45 |
| Dimensions | |
|---|---|
| A (mm) | 186 |
| B (mm) | 296 |
| C (mm) | 86 |
| D (mm) | 247 |
| E (mm) | 121 |
| F (mm) | 1286 |
| G (mm) | 467 |
| H (mm) | 420 |
| I (mm) | 188 |
| J (mm) | 38 |
| K (mm) | 43 |
| Drum Ø (mm) | 247 |
| Pin Ø (mm) | 22.2 |
| Wire Ø Max (mm) | 12 |
| Furling | |
|---|---|
| Extrusion length (mm) | 2130 |
| Extrusion Ø (mm) | 38 |
| Extrusion reference | 7413.30 |
| Extrusion weight (g/m) | 985 |
| Headstay length Max (mm) | 24890 |
| Headstay length Std. (mm) | 22760 |
| Luff groove (Single/Double) | D |
| Luff rope Ø (mm) | 5 |
| Rigging | |
|---|---|
| Rod dash size Max | -30 |
| Rod Ø Max (mm) | 11.1 |
| Weight | |
|---|---|
| Weight (g) | 40823 |
