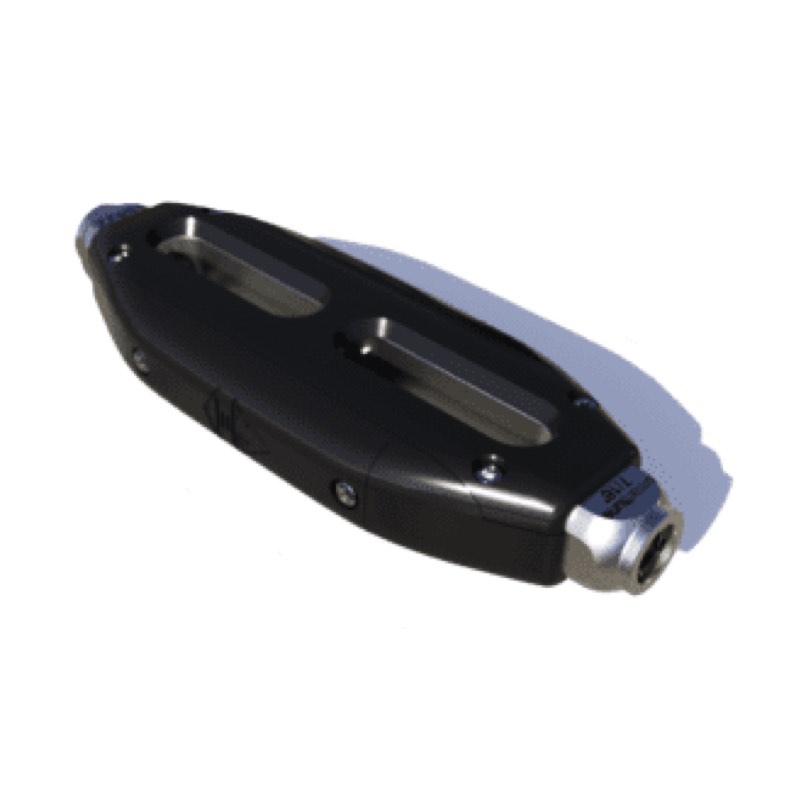

Cyclops Marine smarttune 7/16" Wireless Load Sensor

$ 1,723.81 1723.81 USD $ 1,723.81

1,495.71 €

Spring Sale

Days

Hours

Mins

Secs

Battery life
Battery type
Water resistance
Brand
SWL (kg)
- 1600
NBL (kg)
- 5000
Total height (mm)
Total length (mm)
Total width (mm)
Thread size
Material
Weight (g)
Warranty (yrs)

This combination does not exist.

Unit(s)

ADD TO CART

Digital load cell

Cyclops Marine smarttune 7/16" Wireless Load Sensor

$ 1,723.81

Add to Cart

MPN:

N/A

Brand: Cyclops Marine

30-day money-back*

14-day returns*

Express shipping available

*Exclusions apply. See our Refund Policy.

Cyclops Marine smarttune 7/16" – Wireless Load Sensor

The Cyclops Marine smarttune 7/16" is a high-precision wireless load sensor, designed to replace standard turnbuckles and deliver real-time rigging load data with ±1% accuracy. Engineered for performance keelboats, club racers, and offshore yachts, it allows sailors to fine-tune rig tension for repeatable, optimised sail trim and peak performance. With seamless wireless integration, a rugged marine-grade design, and simple installation, the smarttune 7/16" is an essential upgrade for sailors looking to maximise efficiency and safety.

Key Features & Benefits

✅ Precision Load Monitoring – Measures loads with ±1% accuracy of the Maximum Working Load (MWL), ensuring accurate rigging adjustments for peak performance.

✅ Quick & Easy Installation – Replaces an existing turnbuckle with no complex modifications, making it a straightforward upgrade.

✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, allowing live load monitoring and data logging.

✅ Extended Battery Life – Provides up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring reliable long-term use.

✅ Wireless Charging – Charges via a Cyclops wireless charging pad, with LED indicators displaying charge status.

✅ Marine-Grade Durability – Built with an IP68-rated waterproof housing, designed to endure harsh marine environments.

✅ Customisable Data Frequency – Factory-set at 1Hz, with the option for custom frequency settings.

Technical Specifications

Calibrated Load: 3 tonnes
Material: 316L stainless steel body, brass-threaded inserts
Accuracy: ±1% of MWL between 0-40°C
Battery Life: Up to 8,000 hours in extended use mode
IP Rating: IP68

How the smarttune 7/16" Fits into Your Sailing Setup

The smarttune 7/16" is ideal for club racers, performance keelboats, and offshore yachts, making it perfect for:

✔ Shrouds and sidestays – Maintain precise, repeatable rig tension for optimal sail efficiency.

✔ Backstays and forestays – Fine-tune mast bend and sail shape for changing conditions.

✔ Race tuning – Track and refine settings for consistent high-speed performance.

Safety and Reliability

Overload Protection: Do not exceed 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.

Enhance Your Sailing Performance with Real-Time Load Data

The Cyclops Marine smarttune 7/16" transforms rig tuning with instant, wireless load intelligence, making it an essential tool for performance sailors. Whether optimising rig settings for racing or ensuring safe rig tension, this precision-engineered sensor provides the data needed to sail faster and smarter.

Upgrade your rigging today and take control with real-time load intelligence.

Specifications

Specifications for Cyclops Marine smarttune 7/16" Wireless Load Sensor

Electrics
Battery life	5 months
Battery type	2x AAA
Water resistance	IP67
Boat
Load
SWL (kg)	1600
NBL (kg)	5000
Dimensions
Total height (mm)	26
Total length (mm)	165
Total width (mm)	61
Rigging
Thread size	7/16"
Material
Material	Nitronic 60
Weight
Weight (g)	390
Warranty (yrs)	2

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	Cyclops Marine smarttune2 _ User Guide V3-EN.pdf
	Smarttune In-use Smarttune paired with B&G nemesis using the smart fittings gateway by Cyclops Marine
	smarttune range drawing.pdf
	12 Smarttune product drawing.pdf Technical Drawing
	CM_Cyclops_Marine_App_InstructionsV3.pdf Manual

Specifications

Electrics
Battery life	5 months
Battery type	2x AAA
Water resistance	IP67

Boat

Load
SWL (kg)	1600
NBL (kg)	5000

Dimensions
Total height (mm)	26
Total length (mm)	165
Total width (mm)	61

Rigging
Thread size	7/16"

Material
Material	Nitronic 60

Weight
Weight (g)	390
Warranty (yrs)	2
