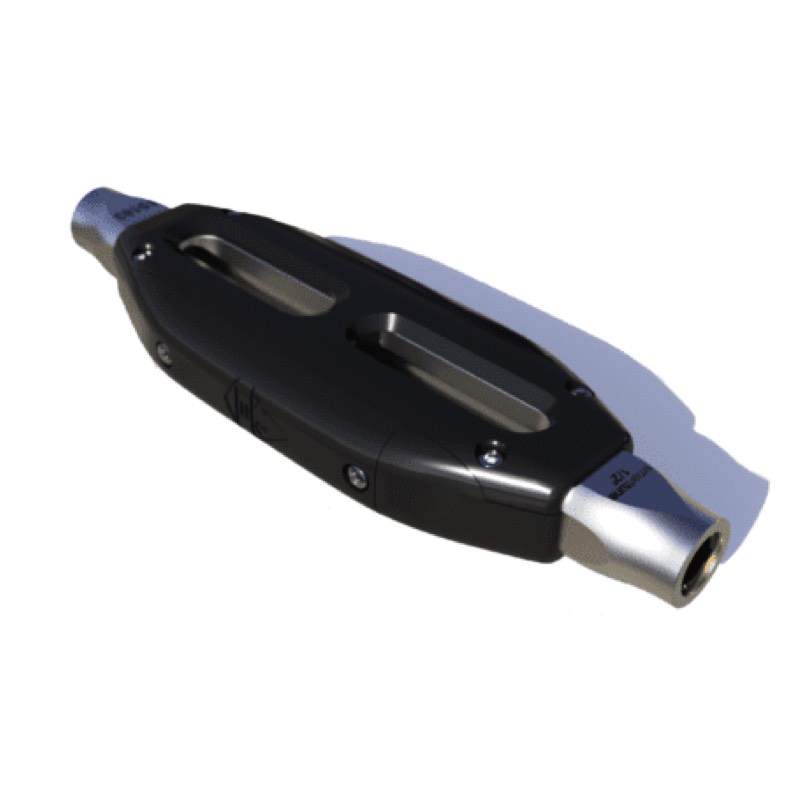

Cyclops Marine smarttune 1/2" – Wireless Load Sensor

The Cyclops Marine smarttune 1/2" is a high-precision wireless load sensor, designed to replace standard turnbuckles and provide real-time rigging load data with ±1% accuracy. Optimised for performance keelboats, club racers, and small offshore yachts, it enables sailors to fine-tune rig tension for repeatable, optimised sail trim and maximum performance. With seamless wireless integration, easy installation, and a rugged marine-grade design, the smarttune 1/2" is an essential upgrade for sailors looking to gain a competitive edge.

Key Features & Benefits

✅ Precision Load Monitoring – Measures loads with ±1% accuracy of the Maximum Working Load (MWL), allowing for data-driven rigging adjustments.

✅ Quick & Easy Installation – Replaces an existing turnbuckle with no complex modifications, making it simple to retro-fit.

✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, enabling live load monitoring and data logging.

✅ Extended Battery Life – Operates for up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring long-term reliability.

✅ Wireless Charging – Charges effortlessly using a Cyclops wireless charging pad, with LED indicators for charge status.

✅ Rugged & Waterproof – Built with an IP68-rated waterproof housing, ensuring durability in the harshest marine environments.

✅ Customisable Data Frequency – Factory-set at 1Hz, with the option for custom frequency settings.

Technical Specifications

Calibrated Load: 4 tonnes
Material: 316L stainless steel body, brass-threaded inserts
Accuracy: ±1% of MWL between 0-40°C
Battery Life: Up to 8,000 hours in extended use mode
IP Rating: IP68

How the smarttune 1/2" Fits into Your Sailing Setup

The smarttune 1/2" is ideal for performance keelboats, club racers, and small offshore yachts, making it a perfect fit for:

✔ Shrouds and sidestays – Maintain repeatable rig tension for optimised performance.

✔ Backstays and forestays – Ensure precise mast bend and sail trim adjustments.

✔ Race tuning – Track and refine load settings for consistent, high-speed sailing.

Safety and Reliability

Overload Protection: Avoid exceeding 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.

Unlock Performance with Real-Time Load Data

The Cyclops Marine smarttune 1/2" transforms rig tuning by providing instant, wireless load intelligence, making it an essential tool for performance-focused sailors. Whether fine-tuning rig settings for racing or ensuring safe rig tension, this precision-engineered sensor delivers the data needed to sail faster and smarter.

Upgrade your rigging today and gain a competitive edge with real-time load intelligence.

Specifications

Specifications for Cyclops Marine smarttune 1/2" Wireless Load Sensor

Electrics
Battery life	5 months
Battery type	2x AAA
Water resistance	IP67
Boat
Load
SWL (kg)	2000
NBL (kg)	6000
Dimensions
Total height (mm)	26
Total length (mm)	165
Total width (mm)	61
Rigging
Thread size	1/2"
Material
Material	Nitronic 60
Weight
Weight (g)	390
Warranty (yrs)	2

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	Cyclops Marine smarttune2 _ User Guide V3-EN.pdf
	Smarttune In-use Smarttune paired with B&G nemesis using the smart fittings gateway by Cyclops Marine
	smarttune range drawing.pdf
	12 Smarttune product drawing.pdf Technical Drawing
	CM_Cyclops_Marine_App_InstructionsV3.pdf Manual

Specifications

Electrics
Battery life	5 months
Battery type	2x AAA
Water resistance	IP67

Boat

Load
SWL (kg)	2000
NBL (kg)	6000

Dimensions
Total height (mm)	26
Total length (mm)	165
Total width (mm)	61

Rigging
Thread size	1/2"

Material
Material	Nitronic 60

Weight
Weight (g)	390
Warranty (yrs)	2
