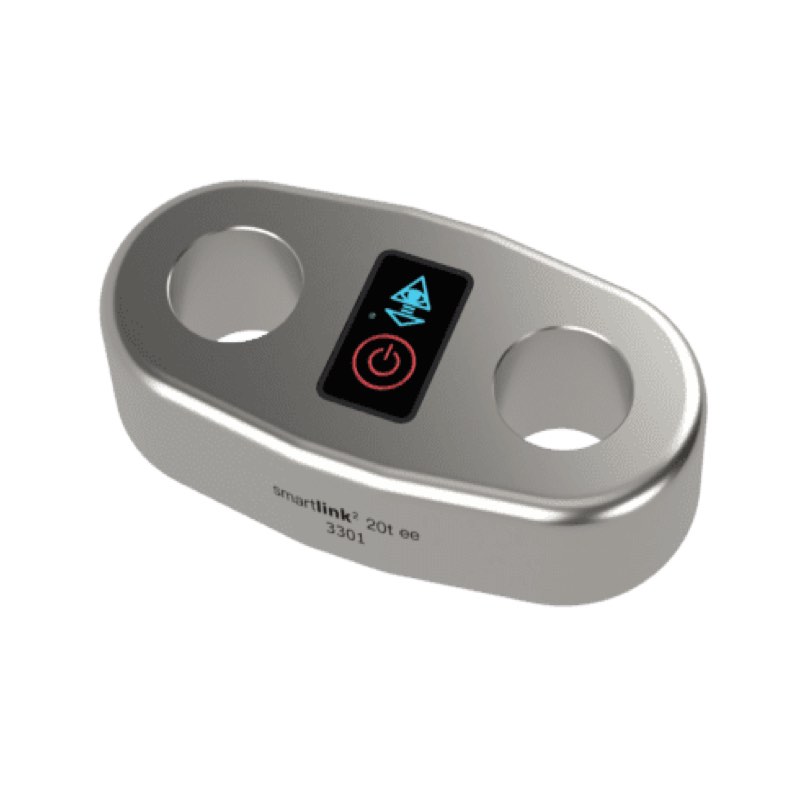

Cyclops Marine smartlink² EE 20t – Wireless Load Sensor
The Cyclops Marine smartlink² EE 20t is the ultimate high-load wireless load sensor, purpose-built for superyachts, offshore raceboats, and high-performance cruising yachts. With a working load limit of 20 tonnes and ±1% load accuracy, it delivers precise, real-time load data to help sailors optimise rigging tension, protect valuable equipment, and maximise performance. Built from titanium for unmatched strength and minimal weight, the smartlink² EE 20t is designed to handle the most demanding sailing conditions.
Key Features & Benefits
✅ Optimised for Extreme Loads – Measures loads with ±1% accuracy of the working load limit (WLL), ensuring accurate and reliable data for high-stress applications.
✅ Durable & Lightweight Titanium Design – Constructed from Ti6Al4V titanium, the sensor weighs just 770g, offering exceptional strength-to-weight performance for heavy-duty rigging.
✅ Wireless Integration – Connects effortlessly via Bluetooth to the Cyclops Marine app or integrates with onboard marine electronics using the smartfittings gateway, providing real-time monitoring and detailed data logging.
✅ Pin-to-Pin Rigging Compatibility – Designed for pin-to-pin or eye-to-eye setups, making it ideal for use with standard shackles in high-load configurations.
✅ Built for Harsh Marine Conditions – Features an IP68-rated waterproof housing, ensuring reliable performance in saltwater and offshore environments.
✅ Extended Battery Life – Operates for up to 8,000 hours in extended use mode and 2 years in powered-off mode, offering exceptional longevity for long-distance offshore racing and cruising.
✅ Wireless Charging – Easy and convenient charging with the included wireless charger and LED status indicators to ensure optimal power management.
Technical Specifications
- Working Load Limit (WLL): 20 tonnes
- Dimensions: 156.9 x 80 x 40 mm
- Material: Titanium body, PC/ABS housing
- Accuracy: ±1% of WLL between -10°C and +40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smartlink² EE 20t Fits into Your Sailing Setup
The smartlink² EE 20t is specifically designed for large yachts and superyachts, making it ideal for applications such as:
✔ Forestays and backstays – Monitor and optimise rig tension for safe and efficient mast control.
✔ High-load runners and vangs – Ensure precise sail control under heavy loads.
✔ Offshore racing halyards – Prevent overloading in extreme sailing conditions.
Safety and Reliability
- Overload Protection: Always keep loads within the 150% WLL limit, as exceeding this may damage the sensor and void the warranty.
- Calibration: Reset as necessary after extended use or high-impact events to maintain precise accuracy.
Optimise Your Sailing Performance
The Cyclops Marine smartlink² EE 20t is the ultimate load-monitoring solution for sailors pushing the limits of their rigging. Designed for superyachts and high-performance offshore campaigns, it combines precision, strength, and advanced wireless integration to help you sail faster, safer, and more efficiently.
Upgrade your rigging today and take control with real-time load intelligence.
