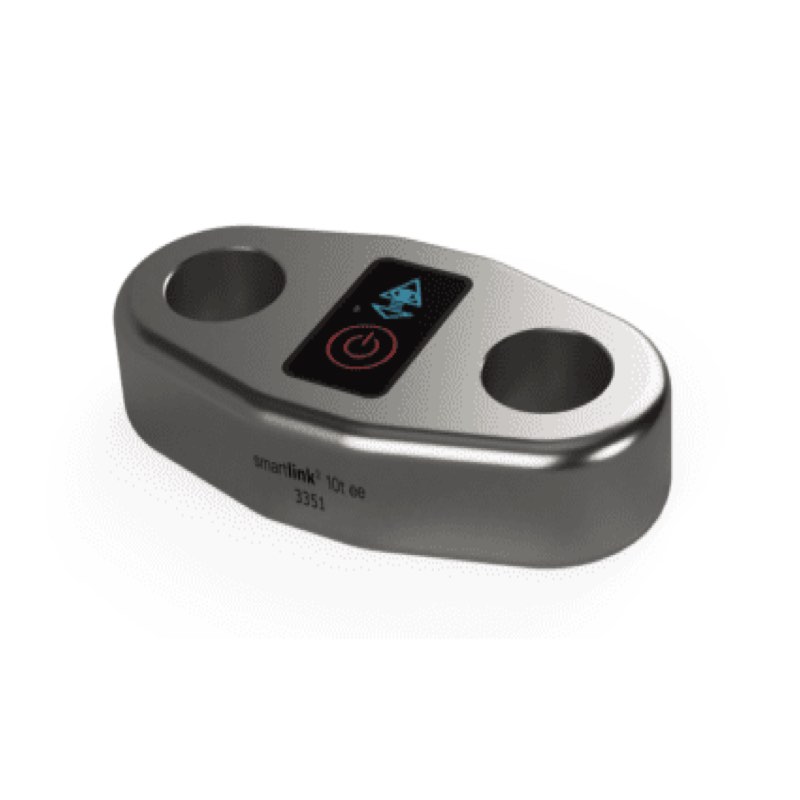

Cyclops Marine smartlink² EE 10t – Wireless Load Sensor
The Cyclops Marine smartlink² EE 10t is a high-capacity wireless load sensor, designed for large keelboats, cruiser-racers, and mid-sized race yachts. Capable of handling working loads up to 10 tonnes, this advanced sensor provides real-time load data with ±1% accuracy, enabling sailors to fine-tune rigging, optimise sail trim, and ensure the safety of their equipment. Engineered from lightweight titanium, the smartlink² EE 10t combines strength, durability, and precision to meet the demands of competitive sailing.
Key Features & Benefits
✅ Optimised for Heavy Loads – Measures loads with ±1% accuracy of the working load limit (WLL), delivering precise, reliable data for high-tension applications.
✅ Lightweight & Durable Design – Constructed from Ti6Al4V titanium, the sensor weighs just 710g, minimising added weight while offering exceptional durability for demanding sailing conditions.
✅ Seamless Wireless Integration – Connects effortlessly via Bluetooth to the Cyclops Marine app or integrates with onboard electronics using the smartfittings gateway, providing real-time monitoring and data logging.
✅ Pin-to-Pin Rigging Compatibility – Designed to work seamlessly with pin-to-pin or eye-to-eye rigging setups, ensuring accurate and secure load distribution when used with standard shackles.
✅ Built for Harsh Conditions – Features an IP68-rated waterproof housing, making it fully capable of withstanding exposure to saltwater and other harsh marine environments.
✅ Extended Battery Life – Delivers up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring reliability for long offshore campaigns and cruising.
✅ Wireless Charging – Simplifies recharging with a wireless charging system and LED indicators to show charge status.
Technical Specifications
- Working Load Limit (WLL): 10 tonnes
- Dimensions: 140 x 72 x 28 mm
- Material: Titanium body, PC/ABS housing
- Accuracy: ±1% of WLL between -10°C and +40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smartlink² EE 10t Fits into Your Sailing Setup
The smartlink² EE 10t is perfect for larger yachts and raceboats, making it an excellent choice for applications such as:
✔ Forestays and backstays – Monitor rig tension to optimise mast shape and sail performance.
✔ Vangs and runners – Fine-tune sail control for maximum efficiency in changing wind conditions.
✔ High-load halyards – Prevent overloading and maintain structural integrity under heavy tension.
Safety and Reliability
- Overload Protection: Always keep loads within the 150% WLL limit, as exceeding this may cause sensor damage and void the warranty.
- Calibration: Recalibrate as needed after extended use or high-impact events to maintain precision.
Optimise Your Sailing Performance
The Cyclops Marine smartlink² EE 10t is a game-changing solution for competitive sailors and performance-focused cruisers. Combining unparalleled accuracy, rugged construction, and seamless wireless integration, this sensor provides the insights needed to push your rigging and sail performance to new heights.
Upgrade your setup today and take control with real-time load intelligence.
