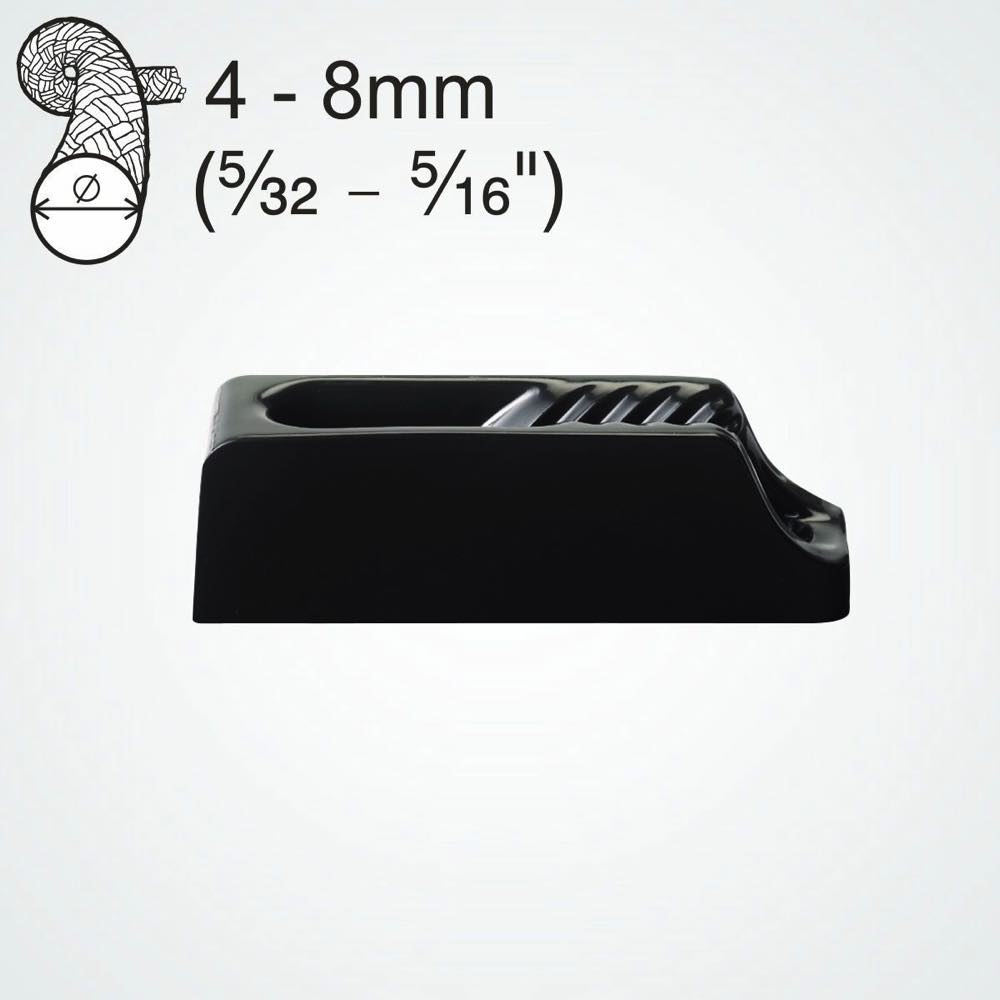

Clamcleat CL231 Midi Nylon Rope Cleat With Integral Fairlead for 4-8mm Lines
Clamcleat CL231 Midi Nylon Rope Cleat with Integral Fairlead for 4–8mm Lines

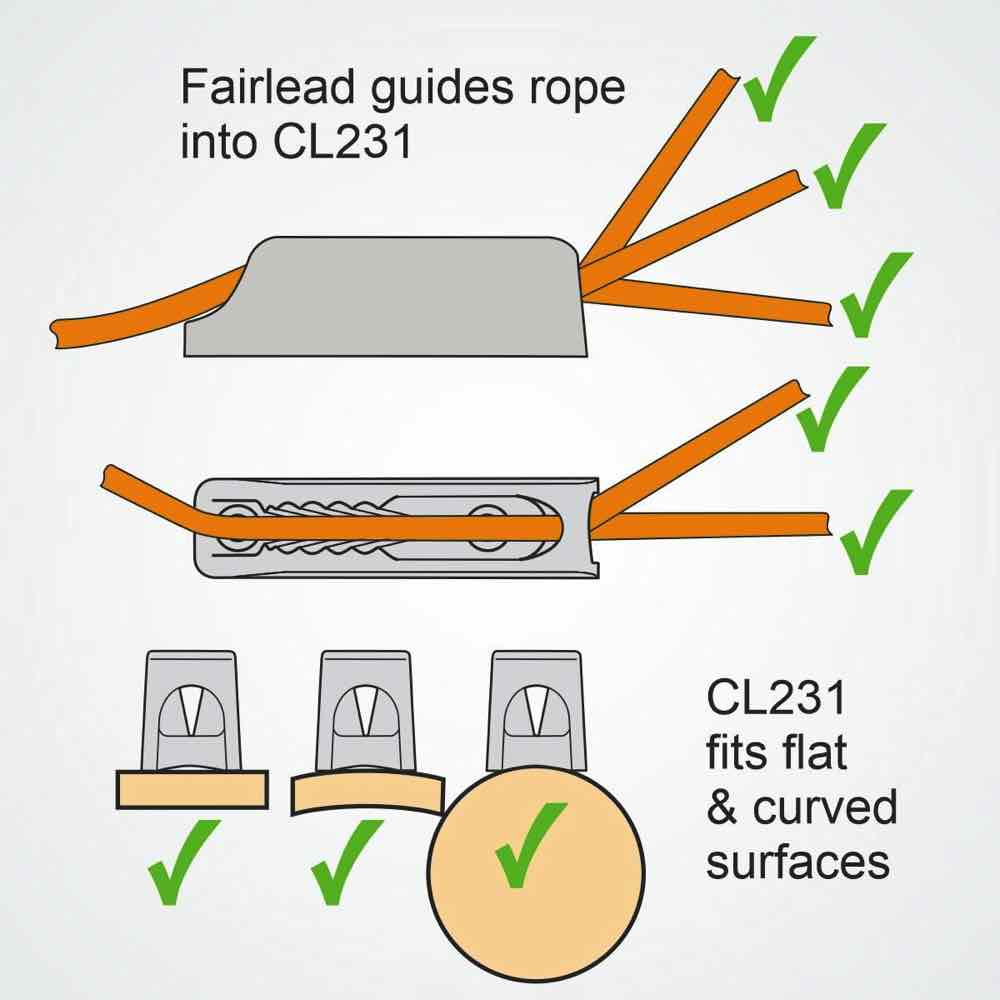

The Clamcleat CL231 Midi Nylon Rope Cleat is a strong, lightweight, and versatile cleat designed for ropes from 4–8mm. Moulded from durable black nylon, it features an integral fairlead that guides the rope smoothly into the teeth from angles of up to 90°, ensuring easy engagement and reliable grip.
Its compact shape and matching hole centres make it directly interchangeable with the CL209 (nylon) and CL254 (aluminium) models, both of which share the same mounting pattern. The CL231 can be securely fitted to flat or curved surfaces using bolts or screws, making installation simple across a wide range of applications.
Commonly used for sunshade tensioning, dinghy control lines, and general outdoor rigging, the CL231 provides excellent performance and value where a fairlead is preferred for easier rope handling.
Related models:
- CL209 – Nylon cleat without a fairlead (same hole centres).
- CL254 – Aluminium cleat without a fairlead (same hole centres).
- CL228 – Larger nylon version with a fairlead for thicker ropes.
- CL272 and CL203 – Smaller nylon fairlead cleats for thinner lines.
Compact, weatherproof, and easy to install, the CL231 is a reliable all-purpose cleat that combines smooth rope control with the resilience of high-quality nylon construction.
Specifications
| Width (mm) | 22 |
| Fixing hole Ø (mm) | 5 |
| Length (mm) | 88 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 4 |
| Fixing hole spacing (mm) | 54 |
| Material | Nylon |
| Height (mm) | 26 |
| Weight (g) | 30 |
