Rope clutches

Rope clutches are used to hold halyards, reefing lines, furling lines and control lines under load, allowing the winch to be released for another function. Selecting the correct rope clutch depends on rope diameter, working load, rope construction, mounting position and whether the line needs to be adjusted under load. This category includes single, double and triple rope clutches, plus cams, bases, handles and service parts.

Rope clutches for halyards, reefing lines and control lines

Rope clutches are a key part of modern sailing deck layouts, particularly on yachts where halyards, reefing lines and sail-control systems are led aft to the cockpit. Their function is simple but critical: a rope clutch grips a loaded line so the winch can be unloaded and used for another line. On cruising yachts this keeps sail handling efficient and controlled. On performance yachts, correct clutch selection also helps reduce rope damage, line slip and unnecessary friction in high-load systems.

A rope clutch is normally installed between the deck organiser and the winch. The line passes through the clutch body and is held by a cam, jaw, wedge or textile gripping mechanism, depending on the model. When the clutch handle is closed, the gripping surface compresses the rope sufficiently to hold the load. When the handle is opened, the line can be eased, trimmed or transferred back onto the winch. Because the clutch is part of the loaded rope path, it should be selected as a load-bearing component rather than a general deck fitting.

Choosing rope clutches by rope diameter

The first selection point for rope clutches is rope diameter. Each clutch model has a defined working range, for example 6–10mm, 8–12mm or 10–14mm. The rope should sit within the manufacturer’s recommended range, but it is not always best to choose the largest available clutch. A line that is too small for the clutch may not deflect or compress enough to generate reliable holding power. This is one of the common reasons for halyard slip.

As a general rule, the selected clutch should match the actual rope diameter under working conditions, not only the nominal size printed on the rope specification. Older ropes can flatten, compact or become polished. High-modulus ropes with Dyneema or other HMPE cores may also behave differently from traditional polyester double braid. The cover construction, firmness of the rope and surface friction all affect how securely the clutch can hold the line.

For this reason, when replacing an existing clutch, it is worth checking both the rope diameter and the condition of the rope cover. If the halyard has been upgraded to a smaller, lower-stretch line, the original clutch may no longer be the correct size, even if it previously held an older polyester rope without issue.

Antal Rope Clutch

Choosing by load and application

Rope diameter is only one part of the selection. The clutch also needs an appropriate safe working load or holding capacity for the application. A mainsail halyard, genoa halyard, code sail halyard, reefing line and vang control may all require different clutch sizes, even if the rope diameters are similar.

Halyards and reefing lines generally need higher holding performance than lightly loaded control lines. A code zero halyard or staysail halyard on a performance yacht may see particularly high static and dynamic loads, especially with low-stretch rope. In these cases, the clutch should be selected with a suitable load margin and with careful attention to rope construction.

For heavily loaded halyards, sailors may also need to consider whether a conventional cam clutch is the right solution, or whether a higher-load jammer, textile clutch or specialist holding device is more appropriate. A rope clutch is normally preferred where the line needs to be adjusted, released or transferred to a winch during normal operation. A jammer is generally used where higher holding security is required and the line is not expected to be released without first taking the load back onto a winch.

Rope clutches vs jammers and cleats

The terms rope clutch, jammer and cleat are sometimes used loosely, but they are not the same. A cam cleat is normally used for smaller control lines and lower loads where fast hand adjustment is required. A rope clutch is designed for higher loaded lines and is commonly used ahead of a winch. A rope jammer is generally used for higher holding loads and is less suitable for frequent adjustment.

For most yachts with lines led aft, rope clutches offer the best balance between holding power, winch sharing and controlled release. Single rope clutches are useful for isolated lines or retrofit installations. Double and triple rope clutches are normally used in line banks for halyards, reefing lines and control systems led through organisers to the coachroof or cockpit winches.

Rope construction, Dyneema and halyard slipping

One of the most common reasons sailors replace rope clutches is halyard slip. This can be caused by several factors: the rope may be too small for the clutch, the clutch cam or base may be worn, the rope cover may be polished, or the load may exceed the clutch’s holding capability. Modern ropes can make this more noticeable. A Dyneema or HMPE-core halyard may have much lower stretch than the original polyester line, which can increase peak loads at the clutch.

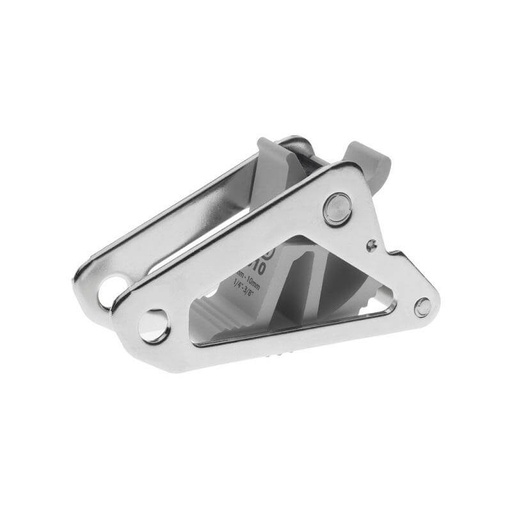

The clutch grips the outer cover of the rope, not the core directly. This makes cover construction very important. A high-strength core with a soft, slippery or worn cover may not hold well in a standard clutch. In some cases, a different rope cover, a ceramic-coated cam, a higher-load clutch or a textile clutch may be more suitable. If the rope slips only under peak load, the cause may not be the clutch alone; it may be the interaction between clutch, rope diameter, rope cover and load path.

Visible rope damage at the clutch is also a warning sign. Excessive cover glazing, flattening or localised wear can indicate that the clutch is overloaded, incorrectly sized, misaligned or in need of service.

Rope clutch installation and deck layout

Correct installation is critical to the performance of rope clutches. The line should enter and exit the clutch as straight as possible, with fair alignment from deck organiser to clutch and from clutch to winch. Excessive side loading can increase friction, reduce holding efficiency and accelerate wear on both the rope and clutch mechanism.

When installing a new rope clutch, check the footprint, fixing size, deck thickness, backing plate and access below deck. The mounting surface must be strong enough to take the line load transferred through the clutch body. On cored decks, the core should be protected from compression and water ingress using appropriate drilling, sealing and reinforcement methods.

Side-mounting options are available for some clutch models, but they should only be used where the manufacturer supports that installation. For multi-line banks, the line spacing, handle access and lead angle to the winch all need to be considered before drilling the deck.

Spinlock Rope Clutch

Maintenance, service parts and replacement

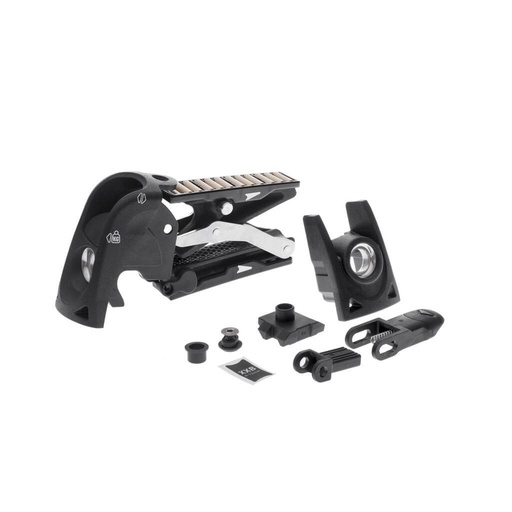

Rope clutches are serviceable components. Cams, bases, handles, springs, labels and upgrade kits are available for many models, allowing a worn clutch to be restored without replacing the entire unit. Regular inspection is especially important on halyards and reefing lines, where clutch failure or slip can affect sail control.

A clutch should be inspected if the handle becomes difficult to operate, the line slips under load, the rope cover shows localised damage, or the cam teeth appear polished or worn. Salt, dirt and rope fibres can also accumulate inside the mechanism, so periodic cleaning and inspection should be part of normal deck hardware maintenance.

Replacing the clutch may be the better option if the body is damaged, the model is undersized for the current rope package, or the deck layout has changed. Upgrading halyards to smaller-diameter high-performance ropes is a common trigger for reviewing clutch specification.

Selecting the right rope clutch

When choosing from this category, start with the line function: halyard, reefing line, furling line or control line. Then check rope diameter, expected working load, rope construction, number of lines, mounting type and compatibility with existing deck hardware. For a simple retrofit, matching the footprint and fixing pattern can save installation time. For a performance upgrade, holding load and rope compatibility should take priority.

This category includes single, double and triple rope clutches, plus service parts and replacement components from specialist sailing hardware brands. Use the product filters to narrow the selection by rope diameter, safe working load, number of leads, mounting format and brand.

Rope clutches FAQ section

What size rope clutch do I need?

Choose a rope clutch based on the actual rope diameter, expected working load and rope construction. The rope should sit within the manufacturer’s recommended range, but avoid choosing a clutch that is too large for the line, as this can reduce holding power.

Why is my halyard slipping through the clutch?

Halyard slip is usually caused by an undersized rope, an oversized or worn clutch, a polished rope cover, excessive load, poor rope-to-clutch compatibility or worn cam/base components. It is especially common after upgrading to smaller-diameter low-stretch halyards.

Can rope clutches be used with Dyneema ropes?

Yes, but the clutch must be suitable for the rope diameter, load and cover construction. The clutch grips the rope cover, so Dyneema or HMPE-core ropes with unsuitable or worn covers may slip under load.

What is the difference between a rope clutch and a jammer?

A rope clutch is normally used where a line needs to be held, adjusted and released as part of normal sailing operation. A jammer is generally used for higher-load applications where the line is normally unloaded onto a winch before release.

When should I replace or service a rope clutch?

Service or replace a clutch if the line slips, the handle is stiff, the cam or base is visibly worn, the rope cover is being damaged, or the clutch is no longer correctly sized for the rope. Many models can be rebuilt with replacement cams, bases and service kits.
