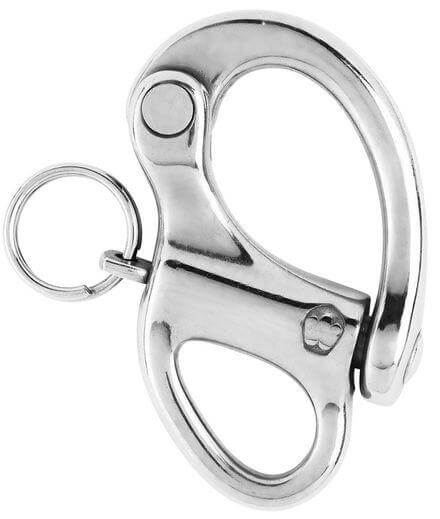

Specifications for Wichard HR Snap shackle - With fixed eye - Length: 50 mm
| Boat | |
|---|---|
| Style | Fixed Bail |
| Load | |
| SWL (kg) | 960 |
| NBL (kg) | 2000 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 10 |
| Total length (mm) | 50 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Weight (g) | 42 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
