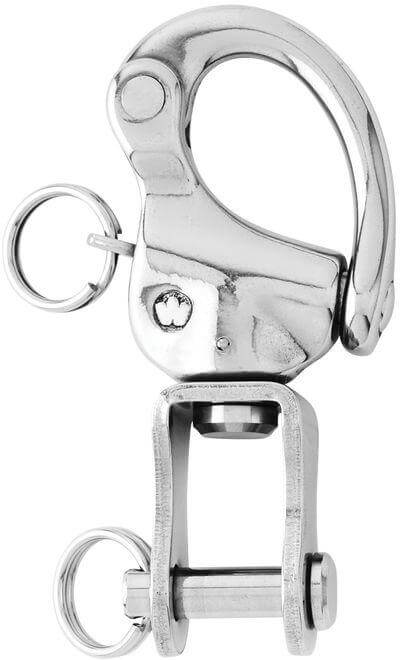

Specifications for Wichard HR snap shackle - With clevis pin swivel - Length: 70 mm
| Boat | |
|---|---|
| Style | Swivel Clevis Bail |
| Load | |
| SWL (kg) | 800 |
| NBL (kg) | 1600 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 15 |
| C (mm) | 12 |
| D (mm) | 6 |
| Pin Ø (mm) | 12 |
| Total length (mm) | 70 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Weight (g) | 71 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat | |
|---|---|
| Style | Swivel Clevis Bail |
| Load | |
|---|---|
| SWL (kg) | 800 |
| NBL (kg) | 1600 |
| Dimensions | |
|---|---|
| A (mm) | 16 |
| B (mm) | 15 |
| C (mm) | 12 |
| D (mm) | 6 |
| Pin Ø (mm) | 12 |
| Total length (mm) | 70 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
|---|---|
| Weight (g) | 71 |
