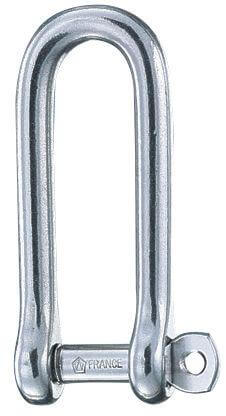

Specifications for Wichard Captive pin long D shackle - Dia 6 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 680 |
| NBL (kg) | 2200 |
| Dimensions | |
| A (mm) | 46 |
| B (mm) | 12 |
| C (mm) | 7 |
| D (mm) | 14 |
| E (mm) | 6 |
| F (mm) | 63 |
| G (mm) | 32 |
| Pin Ø (mm) | 7 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Weight | |
| Weight (g) | 40 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
