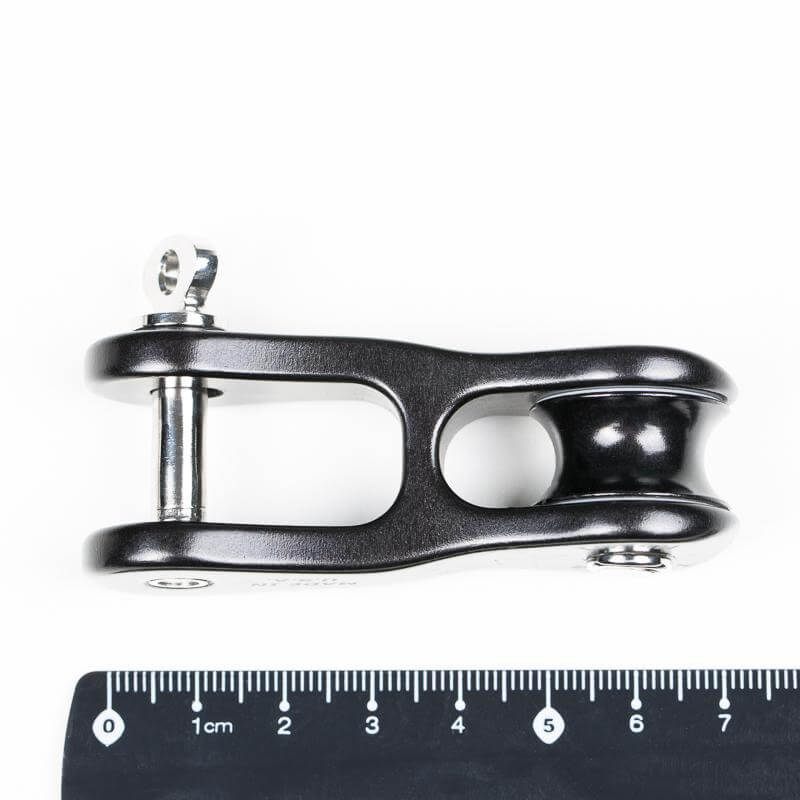

Specifications for Tylaska H5 2:1 Aluminum Halyard Shackle
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Boat | |
| Recommended Boat size - Max (ft) | 30 |
| Recommended Boat size - Min (ft) | 20 |
| Load | |
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
| A (mm) | 74.4 |
| B (mm) | 25.4 |
| C (mm) | 4.6 |
| D (mm) | 35.6 |
| E (mm) | 23.1 |
| F (mm) | 16.1 |
| G (mm) | 13 |
| H (mm) | 19.1 |
| I (mm) | 25.1 |
| J (mm) | 6.6 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Weight (g) | 65 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
