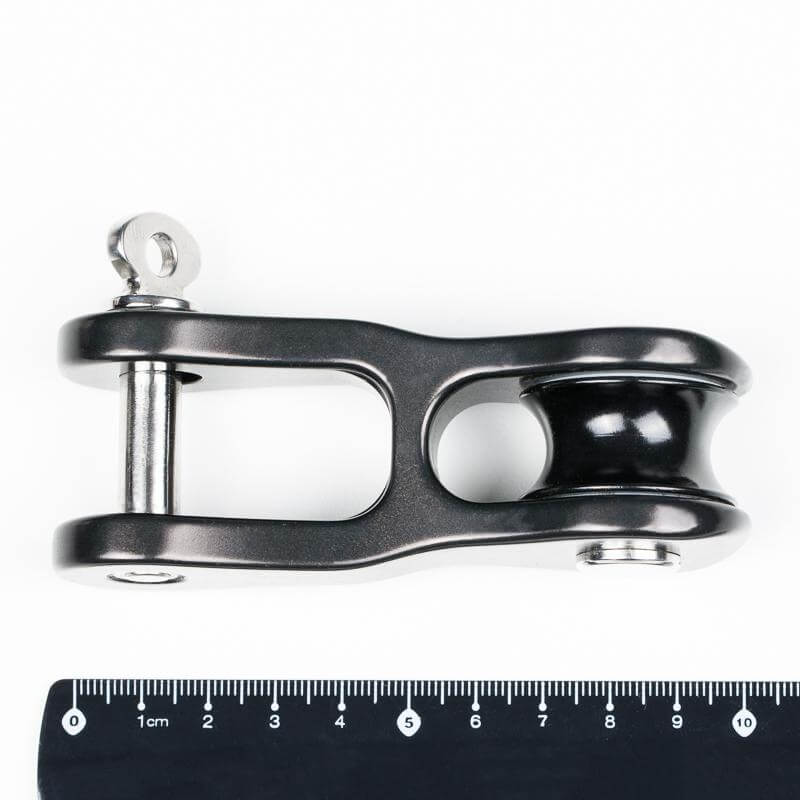

Specifications for Tylaska H12 2:1 Aluminum Halyard Shackle
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Boat | |
| Recommended Boat size - Max (ft) | 45 |
| Recommended Boat size - Min (ft) | 30 |
| Load | |
| SWL (kg) | 2727 |
| NBL (kg) | 5454 |
| Dimensions | |
| A (mm) | 103.6 |
| B (mm) | 38.2 |
| C (mm) | 8 |
| D (mm) | 50.8 |
| E (mm) | 30.5 |
| F (mm) | 22.4 |
| G (mm) | 18.3 |
| H (mm) | 30.1 |
| I (mm) | 36.6 |
| J (mm) | 9.5 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Weight (g) | 179 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
