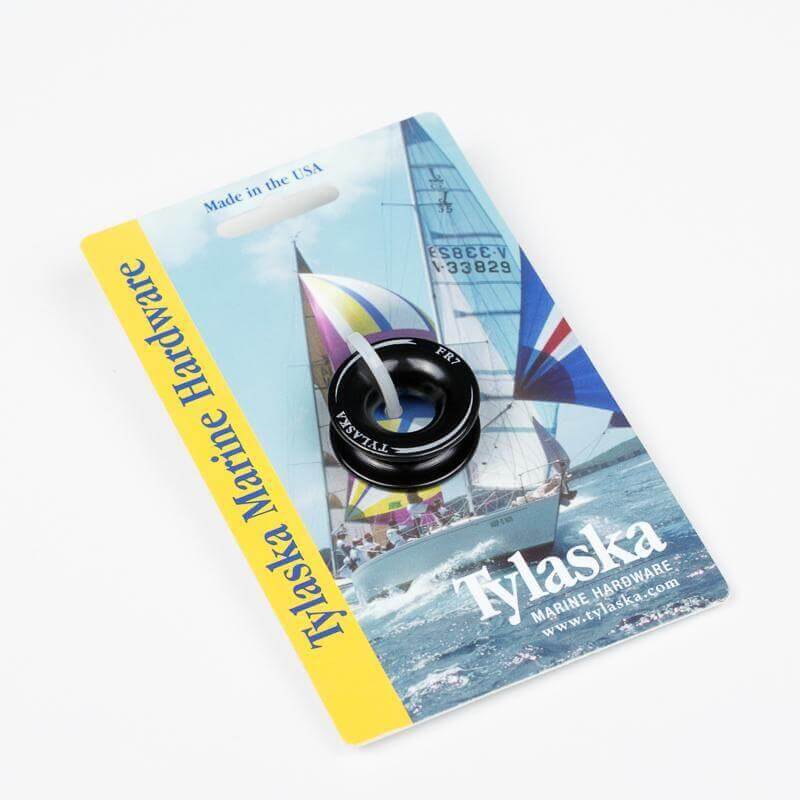

Specifications for Tylaska FR7 - Aluminium Low Friction Ring
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 7 |
| Boat | |
| Load | |
| SWL (kg) | 860 |
| NBL (kg) | 1720 |
| Dimensions | |
| A (mm) | 11.1 |
| B (mm) | 7.7 |
| C (mm) | 28 |
| D (mm) | 11.2 |
| E (mm) | 5.6 |
| Inside Ø (mm) | 11.1 |
| Outside line max Ø (mm) | 7 |
| Outside Ø (mm) | 28 |
| Total width (mm) | 11.2 |
| Weight | |
| Weight (g) | 8.5 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
