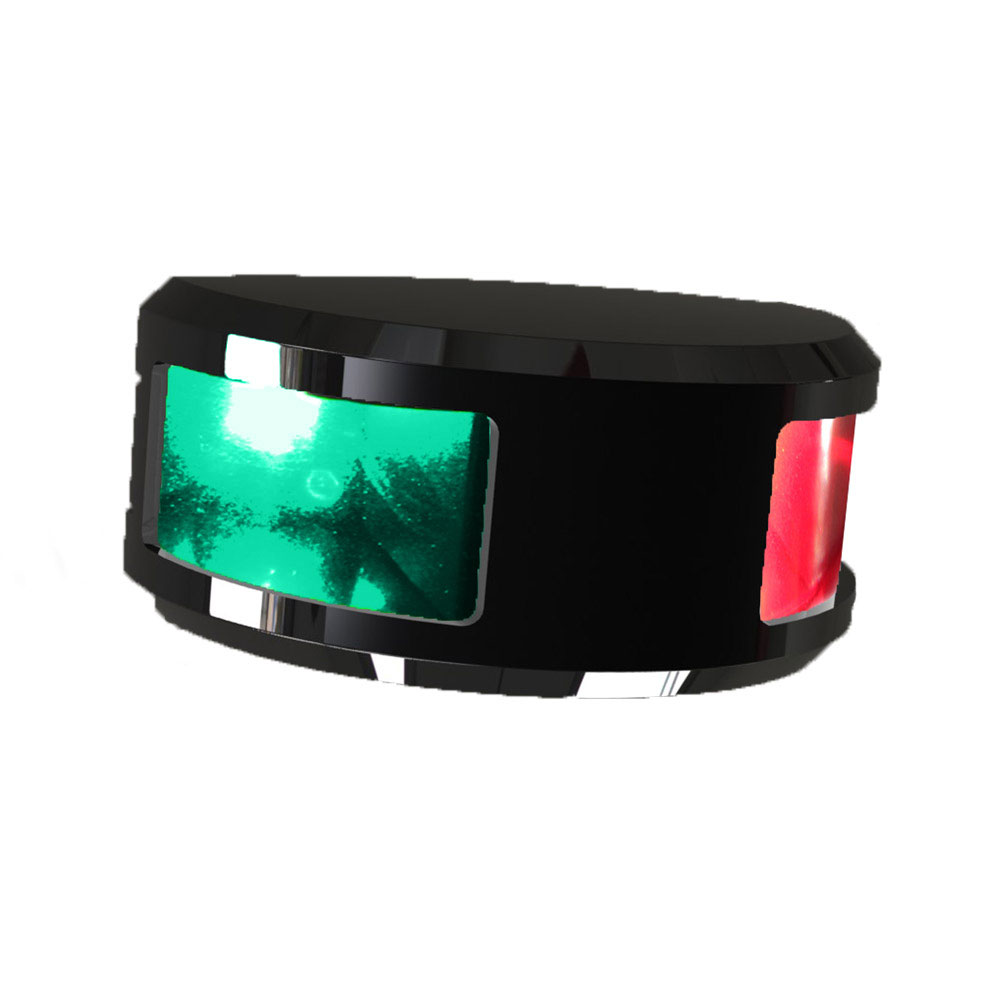

Mantagua NAVISLIM 2NM Combined Sidelight (Red & Green 112.5°) – Horizontal Mount (Black or White Housing)
The Mantagua NAVISLIM 2NM Combined Sidelight is a compact, ultra-slim LED navigation light designed for horizontal mounting on sailing yachts. Combining both port (red 112.5°) and starboard (green 112.5°) sectors within a single housing, it provides correct COLREG 72 sidelighting for vessels up to 20 metres in length.
This configuration is ideal for bow mounting on yachts where a single central unit is preferred over separate port and starboard lights.
Certified 2 Nautical Mile Visibility
The combined unit delivers a 2 nautical mile range with luminous intensity exceeding 5.4 candela per sector, meeting international navigation lighting standards for vessels under 20m LOA.
The precisely defined 112.5° red and green sectors ensure accurate beam separation and correct night-time identification when underway. Certified to recognised marine standards including MED/Wheelmark and UK approvals, NAVISLIM lights are suitable for both coastal cruising and offshore use.
UV-Resistant PC + ASA Marine Housing
The housing is manufactured from UV-stabilised PC + ASA, a high-performance engineering polymer blend developed for harsh outdoor environments.
Polycarbonate (PC) provides excellent impact resistance and structural strength, while ASA ensures superior UV and weather resistance. This combination delivers a durable, colour-stable housing that resists:
-
UV degradation and fading
-
Saltwater exposure
-
Temperature cycling
-
Surface brittleness over time
For yachts exposed year-round, this ensures long-term reliability without the deterioration associated with lower-grade plastics.
IP67 Sealed and Energy Efficient
The NAVISLIM combined light is fully sealed to IP67 standards, protecting the internal LED system against water ingress in demanding marine conditions.
Operating on 10–30V DC, it is compatible with both 12V and 24V onboard systems. With low power consumption (2.76W total), it provides efficient operation during extended night sailing without placing unnecessary load on the battery bank.
LED technology offers:
-
Immediate full brightness
-
High resistance to vibration
-
Long service life
-
No bulb replacement
Ultra-Slim Horizontal Mount Design
With compact dimensions (H34 x L85 x W58mm), the NAVISLIM horizontal mount format maintains a clean, low-profile appearance on the bow. It avoids the bulk of traditional combined sidelights while remaining fully compliant with navigation regulations.
Each unit is supplied with a 2m pre-wired cable and stainless M4 mounting screws for straightforward installation.
Part of the NAVISLIM Horizontal Range
This combined 2NM sidelight forms part of the wider Mantagua NAVISLIM horizontal series, which includes:
-
Individual port and starboard sidelights
-
2NM and 3NM masthead lights
-
Stern light
-
Port and starboard twin kits
Together, they allow yacht owners to install a fully matched, certified navigation lighting system with consistent styling and dependable marine-grade construction.
The Mantagua NAVISLIM 2NM Combined Sidelight (Red & Green 112.5°) – Horizontal Mount is an ideal solution for sailors seeking a certified, space-saving bow light with modern LED performance and durable UV-resistant housing.
