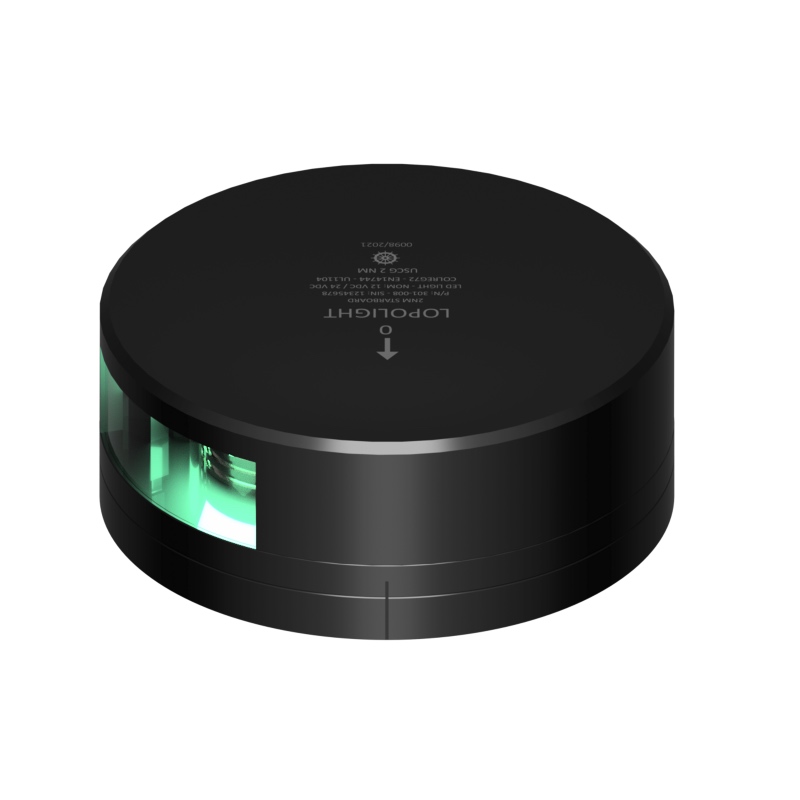

Lopolight 2NM 112.5° Starboard Sidelight – Horizontal Mount, 2.5m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Starboard Sidelight in horizontal mount configuration is designed for vessels under 20 metres, providing a precise 112.5° green beam visible to 2 nautical miles. This model is ideal for deck, coaming, or cabin roof installations where a horizontal footprint is preferred.
Crafted from anodised aluminium, the light is available in Silver or Black finishes to match the vessel’s design. Rated IP68, the sealed housing and epoxy-filled electronics deliver long-term durability against saltwater, vibration, and UV exposure.
The 2.5-metre marine-grade cable provides a standard-length connection suitable for most installations.
Key Features:
- Suitable for vessels under 20 metres
- 112.5° green beam, visible to 2NM
- Horizontal mount – ideal for deck, coaming, or cabin installation
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available with 6m cable connection
Specifications
| Boat size (m) | 20-50M or 12-20M or Under 12M |
| Colour* | Black or Silver |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane or Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 2.5m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 110 |
| Current draw (mA @ 24VDC) | 60 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.4 |
| Operating voltage (V) | 10-32 |
| Warranty (yrs) | 5 year limited warranty |
| Water resistance | IP68 |
| Weight (g) | 570 |
