Understanding Mast Sheaves and Block Sheaves

Mast sheaves and block sheaves play a central role in modern sailing rigging systems. They act as the rotating elements that guide halyards, control lines, or running rigging over mastheads and through blocks, enabling smooth and efficient load transfer. The design and material composition of these sheaves directly affect the efficiency, wear resistance, and longevity of the entire system.

A mast sheave is typically mounted at the masthead or in the boom, where it redirects halyards or reefing lines. A block sheave, on the other hand, is found within a block assembly—used to change the direction of running rigging and provide mechanical advantage. Both types of sheaves experience significant loads, and their construction must balance strength, weight, and friction characteristics.

Materials and Manufacturing Techniques

Modern mast and block sheaves are engineered using advanced materials that minimize friction and maximize durability:

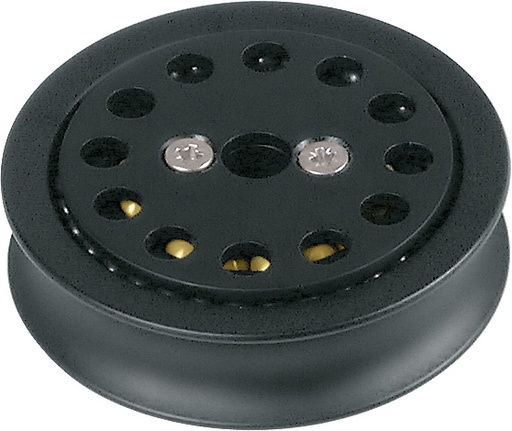

1. High-Grade Aluminium Alloys

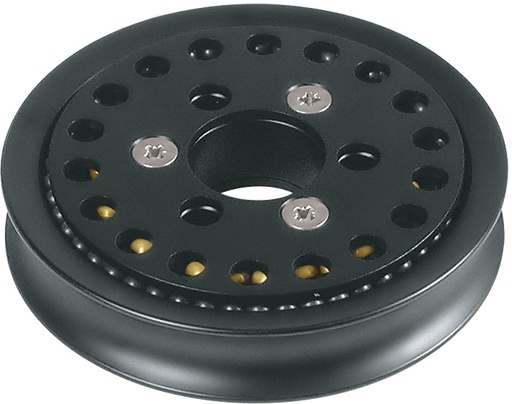

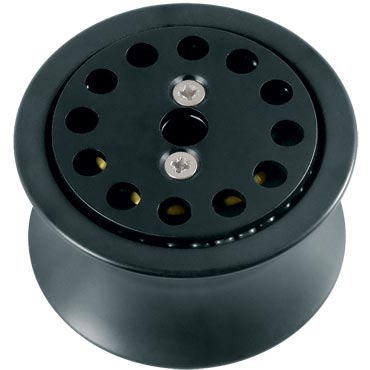

o Used extensively by Antal and Harken, machined aluminium sheaves offer exceptional strength-to-weight ratios.

o Anodized surfaces provide corrosion resistance, particularly beneficial in saltwater environments.

o Precision CNC machining ensures concentricity and reduced bearing wear, maintaining smooth operation even under extreme loads.

2. Composite and Polymer Sheaves

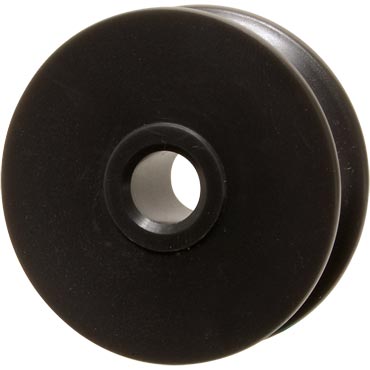

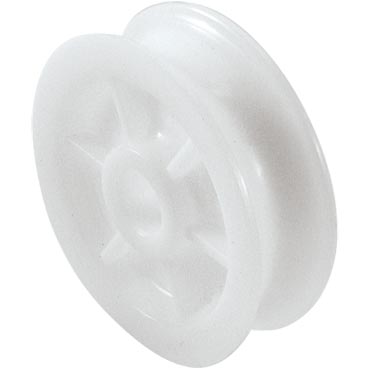

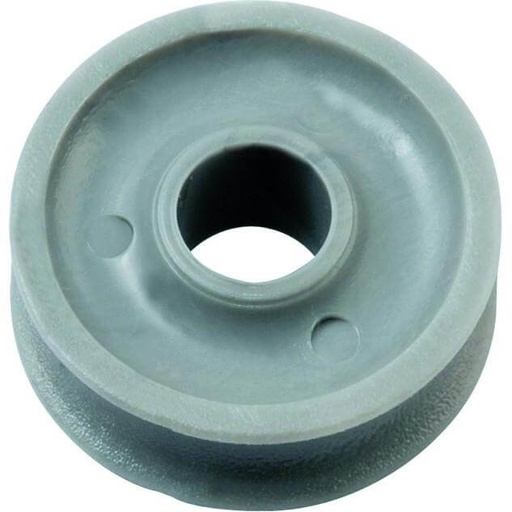

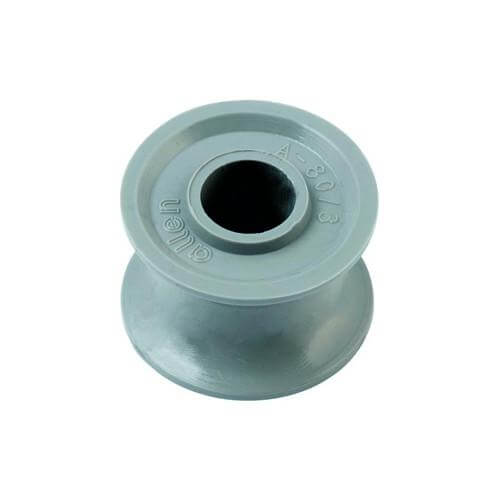

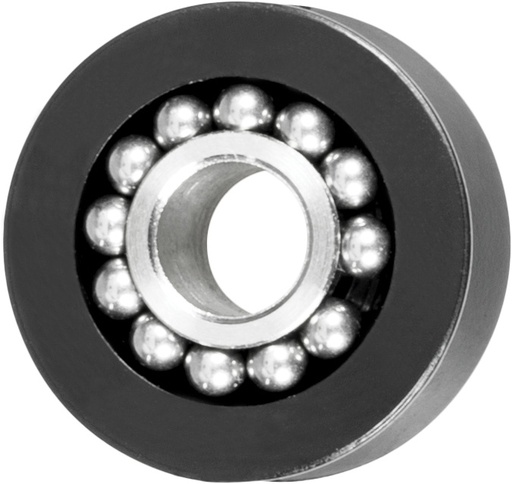

o Ronstan and Allen Brothers integrate engineering-grade polymers such as acetal (Delrin®) and fibre-reinforced nylon.

o These materials deliver self-lubricating properties, reducing maintenance and line wear.

o Composite sheaves are lightweight and ideal for smaller yachts or applications where reduced mass is a priority.

3. Stainless Steel Sheaves

o Typically used in heavy-duty masthead configurations or high-load halyard applications.

o Offer superior compressive strength and longevity but come with a slight weight penalty.

o Common in traditional or offshore setups where reliability outweighs minimal friction gains.

Bearing Systems and Friction Management

The efficiency of a mast sheave or block sheave largely depends on the bearing system design. Key bearing technologies include:

• Plain Bearing Sheaves:

o Simple and robust, using direct polymer or bronze interfaces.

o Ideal for static or slow-turning applications such as reefing or topping lift lines.

• Ball Bearing Sheaves:

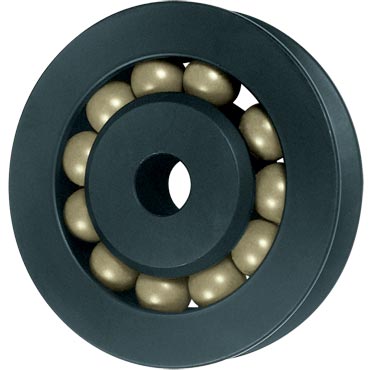

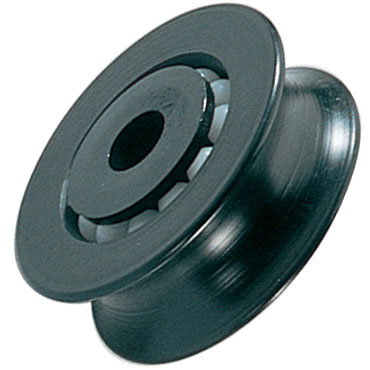

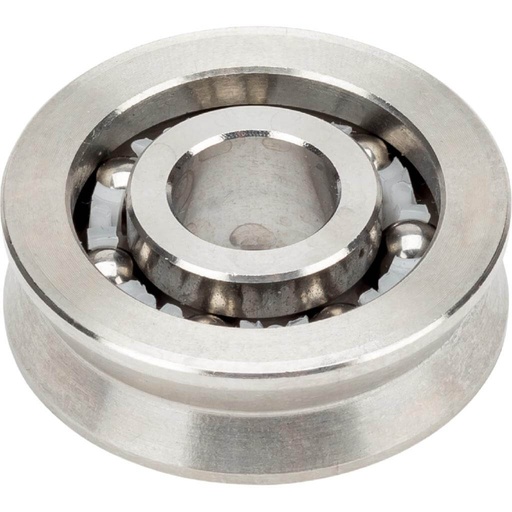

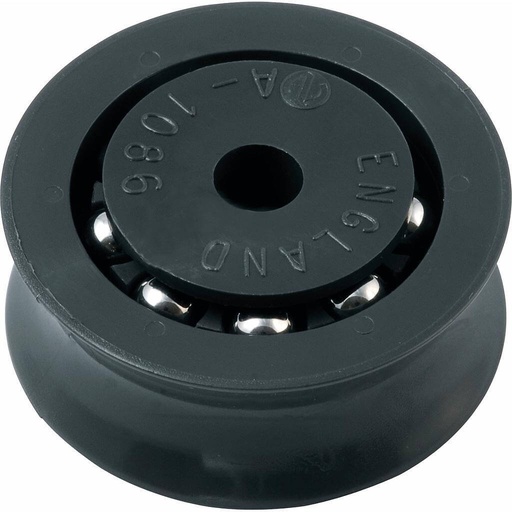

o Utilise Delrin® or stainless steel ball bearings for low-friction, high-efficiency operation.

o Perfect for halyards or control lines subject to frequent adjustments.

o Found in performance models from Harken and Antal, where load-to-friction ratios are critical.

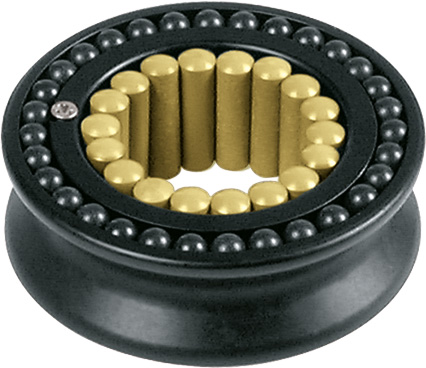

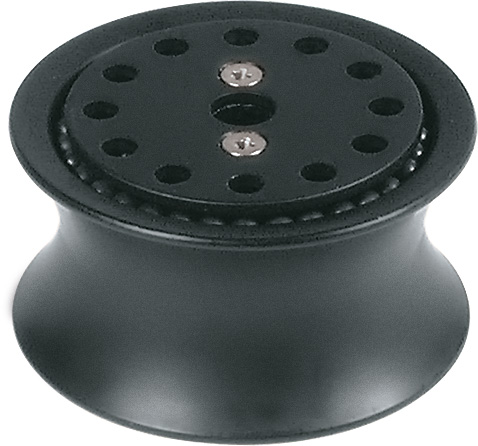

• Roller Bearing Sheaves:

o Designed for extreme compression and load conditions.

o Common in high-performance racing yachts where halyards or sheets run under high dynamic load.

Efficient bearing selection not only enhances sail control but also reduces wear on both lines and mast fittings.

Design Features Across Leading Brands

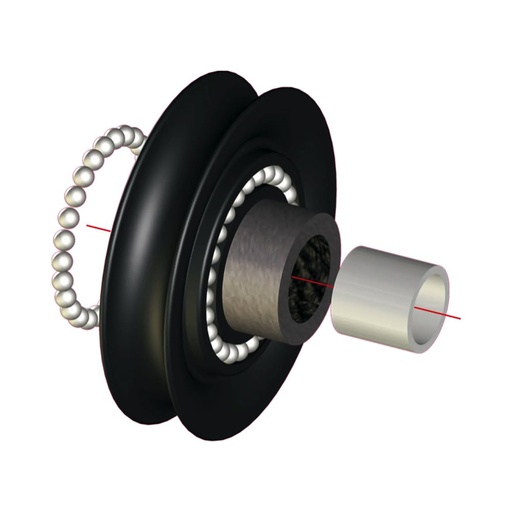

• Antal sheaves are engineered with precision-machined aluminium or resin composites, featuring hard-anodised surfaces and advanced bearing systems. Their design focus is on minimal friction and longevity under high line loads, often found in performance rigging systems.

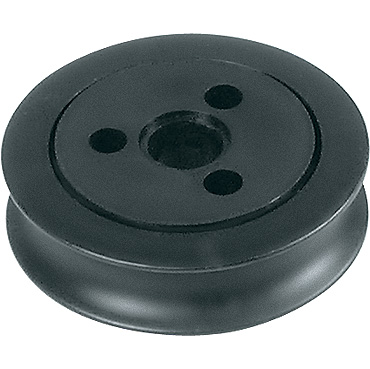

• Harken integrates composite or aluminium sheaves with Torlon® or Delrin® ball bearings, optimised for high load capacity and minimal weight. Harken sheave geometry and groove design ensure smooth rope engagement and reduce flattening under load.

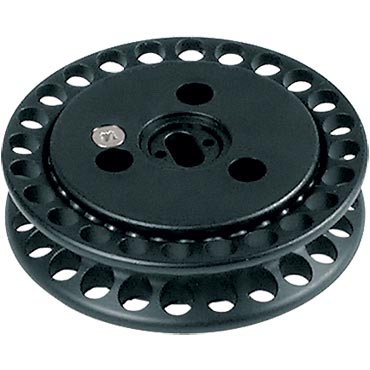

• Ronstan offers a broad range of mast sheaves and block sheaves, from polymer plain-bearing models for cruising yachts to high-performance ball-bearing sheaves used in professional racing circuits. Their focus on efficient load distribution and low friction ensures consistent performance.

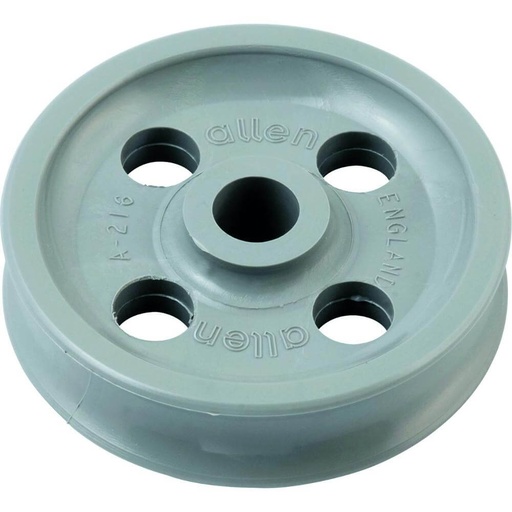

• Allen Brothers specialise in precision-machined composite and aluminium sheaves designed for lightweight and compact block assemblies. Their designs cater to both dinghy and keelboat applications, offering high strength with reduced rotational resistance.

Applications and System Integration

Mast sheaves and block sheaves are used throughout a sailing vessel’s rigging system, including:

• Masthead sheaves for halyards (main, genoa, spinnaker, code zero).

• Boom-end sheaves for reefing or outhaul systems.

• Deck organisers and turning blocks using compact sheaves to redirect control lines to the cockpit.

• Vang and mainsheet systems utilising multiple sheaves for mechanical advantage.

Proper sheave sizing, material selection, and bearing type ensure optimal performance, minimal friction, and reduced line wear. A well-chosen sheave can significantly improve sail handling efficiency, particularly under high loads or when reefing in heavy conditions.

Maintenance and Replacement Considerations

Routine inspection of mast sheaves and block sheaves is vital to maintaining rig efficiency and safety. Key maintenance checks include:

• Bearing condition: Ensure smooth rotation under load.

• Groove wear: Replace if rope grooves show flattening or excessive scoring.

• Corrosion: Particularly on stainless or aluminium sheaves exposed to saltwater.

• Alignment: Misalignment can accelerate bearing and rope wear.

Replacing worn sheaves before a major refit or rig inspection prevents costly mast disassembly and ensures peak performance when it matters most.

Conclusion on Mast Sheaves and Block Sheaves
