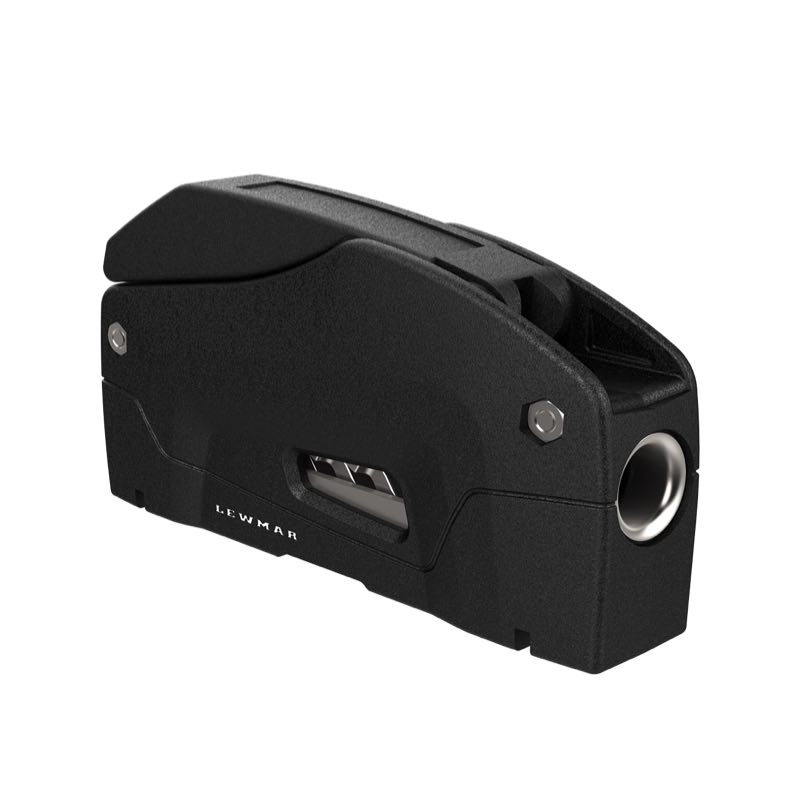

The Lewmar DC1 Single Rope Clutch (8-10mm) is a high-performance, compact clutch designed for securely holding and managing a single line within the 8mm to 10mm diameter range. With a Safe Working Load (SWL) of 400kg, it offers exceptional holding power while ensuring minimal rope wear, thanks to Lewmar’s innovative Domino Cluster technology. This makes it an ideal solution for halyards, reefing lines, and other high-load applications where precise control is essential.
Key Features:
-
Domino Cluster Mechanism: Unlike conventional cam-based clutches, the DC1’s Domino Cluster system tilts and flexes the line rather than crushing it, providing maximum grip while protecting rope integrity.
-
Smooth & Controlled Release: The pull-back handle design and patented clutching system enable gradual and precise line release, even under full load, giving sailors greater control in demanding conditions.
-
Compact & Durable Construction: Designed with stainless steel fairleads to reduce friction and extend lifespan, the clutch is lightweight yet robust, ensuring reliable performance in high-load environments.
Specifications:
- Line Size Compatibility: 8mm to 10mm (5/16" to 3/8")
- Safe Working Load (SWL): 400kg (882 lbs)
- Dimensions:
- Length: 126mm (5")
- Width: 32mm (1 5/16")
- Height: 72mm (2 13/16")
The Lewmar DC1 Single Rope Clutch (8-10mm) is the perfect choice for sailors looking for a compact yet powerful solution for securing and controlling a single high-load line. With its rugged construction, innovative grip technology, and smooth operation, it is a trusted addition to any sailing deck.
