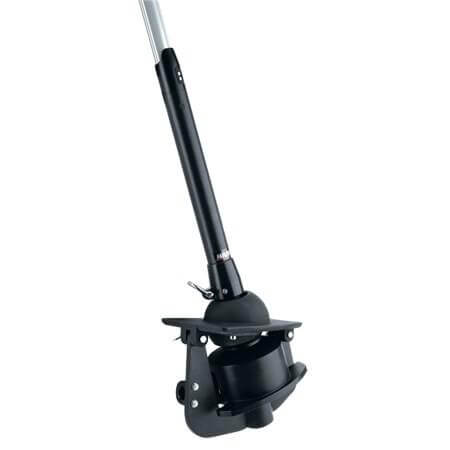

Specifications for Harken MKIV Unit 0 Underdeck Furling System
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 30 |
| Recommended Boat size - Min (ft) | 22 |
| Dimensions | |
| A (mm) | 175 |
| B (mm) | 30.4 |
| J (mm) | 23 |
| K (mm) | 26 |
| Drum Ø (mm) | 30.4 |
| Wire Ø Max (mm) | 6 |
| Furling | |
| Extrusion length (mm) | 2130 |
| Extrusion Ø (mm) | 23 |
| Extrusion reference | 7410.30 |
| Extrusion weight (g/m) | 424.4 |
| Headstay length Max (mm) | 13800 |
| Headstay length Std. (mm) | 11700 |
| Luff groove (Single/Double) | Double |
| Luff rope Ø (mm) | 6 |
| Rigging | |
| Rod dash size Max | -6 |
| Rod Ø Max (mm) | 5.03 |
| Weight | |
| Weight (g) | 10886 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
