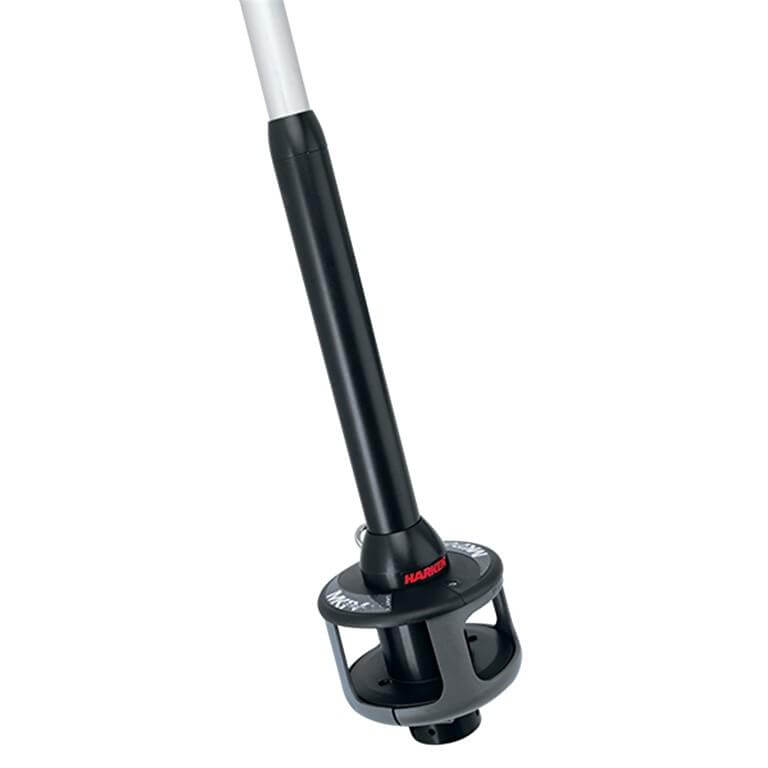

Specifications for Harken MKIV Ocean Unit 1 Furling System
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 36 |
| Recommended Boat size - Min (ft) | 28 |
| Dimensions | |
| A (mm) | 120 |
| B (mm) | 178 |
| C (mm) | 51 |
| D (mm) | 167 |
| E (mm) | 78 |
| F (mm) | 1073 - 1175 |
| G (mm) | 247 - 305 |
| H (mm) | 222 - 280 |
| I (mm) | 71 - 129 |
| J (mm) | 35 |
| Drum Ø (mm) | 167 |
| Pin Ø (mm) | 15.9 |
| Wire Ø Max (mm) | 8 |
| Furling | |
| Extrusion length (mm) | 2130 |
| Extrusion Ø (mm) | 35 |
| Extrusion reference | 7511.30 |
| Headstay length Max (mm) | 16120 |
| Headstay length Std. (mm) | 13990 |
| Luff groove (Single/Double) | Single |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Rod dash size Max | -12 |
| Rod Ø Max (mm) | 7.14 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
