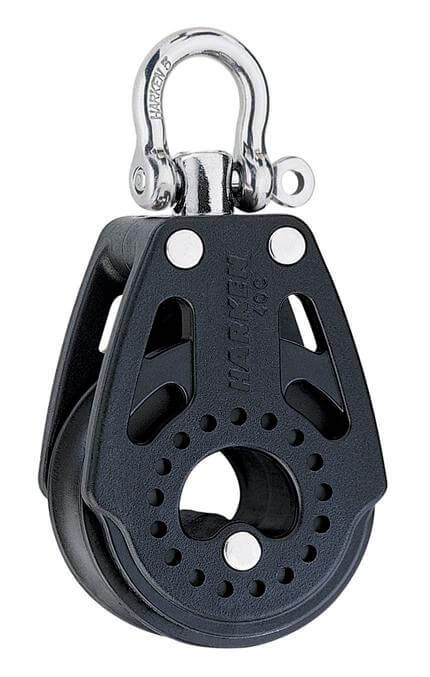

Specifications for Harken 40mm Carbo Air Block - Swivel head, single
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Boat | |
| Load | |
| SWL (kg) | 220 |
| NBL (kg) | 735 |
| Blocks | |
| Bearing type | Ball bearing |
| Ratchet | No |
| Dimensions | |
| A (mm) | 40 |
| B (mm) | 86 |
| C (mm) | 4 |
| Pin Ø (mm) | 4 |
| Sheave Ø (mm) | 40 |
| Furling | |
| Undefined | |
| Colour* | Black |
| Compatibility | |
| Weight | |
| Weight (g) | 44 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
