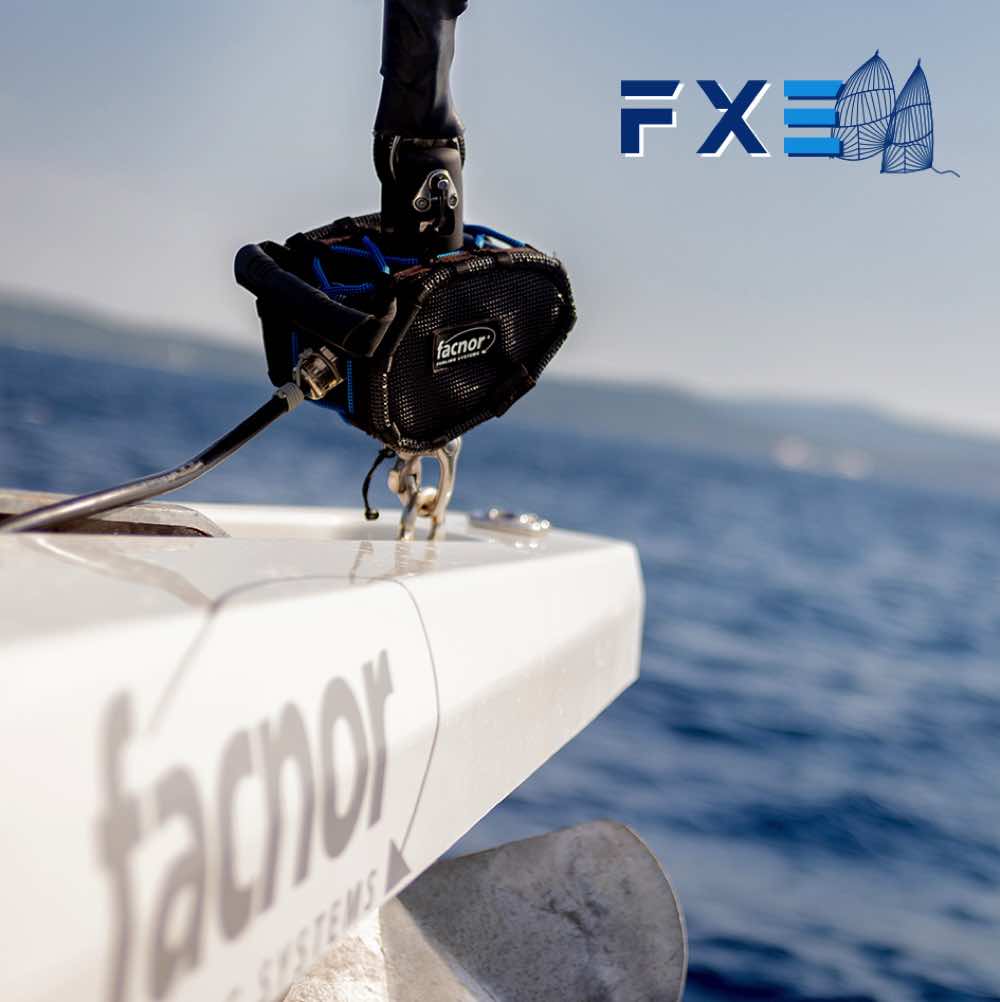

Facnor FXe 2500 Standard Kit – Electric Code Sail Furler
Compact, Efficient Electric Furling for Code Sails on Mid-Size Yachts
The Facnor FXe 2500 Standard Kit is a compact and reliable electric code sail furler, designed specifically for sailing yachts between 9.5 and 12.5 metres (32′–42′). Built on Facnor’s proven and thoroughly tested furling technology, the FXe 2500 delivers smooth, controlled electric furling for code sails up to 90 m², offering comfort, safety and simplicity when handling flying sails.
Available exclusively in 12V, this system is optimised for low energy consumption while maintaining dependable performance, making it an ideal solution for modern cruising and performance yachts.
Key Features
-
High-Efficiency 12V Electric Drive: Low power consumption of approximately 20–25Ah during sail use, ideal for mid-size onboard electrical systems.
-
“In / Out” Flying Sail System: Designed specifically for code sails and gennakers, ensuring controlled furling and unfurling.
-
Maintenance-Free Drive Unit: Fully sealed motor unit requiring no routine servicing.
-
Unique Captive Quick-Release Pin: Simplifies installation, removal and deck handling.
-
Asymmetric Spinnaker Compatibility: Can be converted for top-down furling with the optional FAST 2500 top-down thimble.
What’s Included in the Standard Kit
The FXe 2500 Standard Kit is supplied as a complete, turnkey electric furling solution:
-
Electric Continuous Line Drum: Anodised aluminium drum, CNC-machined from a solid block, sealed and low-profile, supplied with electric wiring and deck plug connection.
-
Top Furling Swivel: Anodised aluminium, CNC-machined from solid, fitted with a neoprene anti-impact cover featuring high-visibility markings.
-
Bottom Snap Shackle: For secure attachment of the drum to deck fittings (optional SSH+2500 solid friction sheave available as an alternative).
-
Top Shackle: For swivel attachment (optional LB3T 2:1 block available as an alternative).
-
Relay Box: Manages safe and efficient power delivery.
-
Circuit Breaker: Provides electrical protection for system safety.
-
Storage Bag: Durable bag for protecting and organising components when not in use.
Specifications
-
Recommended Boat Length: 9.5–12.5 m (32′–42′)
-
Maximum Sail Area: Code sails up to 90 m² (964 ft²)
-
Voltage: 12V only
-
System Type: Electric “in / out” flying sail furler
-
Construction: Anodised aluminium and marine-grade components
Why Choose the FXe 2500 Standard Kit?
The FXe 2500 offers an exceptional balance of performance, efficiency and ease of use for mid-size yachts. Its compact, lightweight design makes installation straightforward, while electric operation allows fast and comfortable furling — a 90 m² code sail can be furled in approximately 45 seconds at the push of a button. With Facnor’s proven engineering and upgrade options for asymmetric spinnakers, the FXe 2500 is a future-proof investment in sail-handling comfort.
