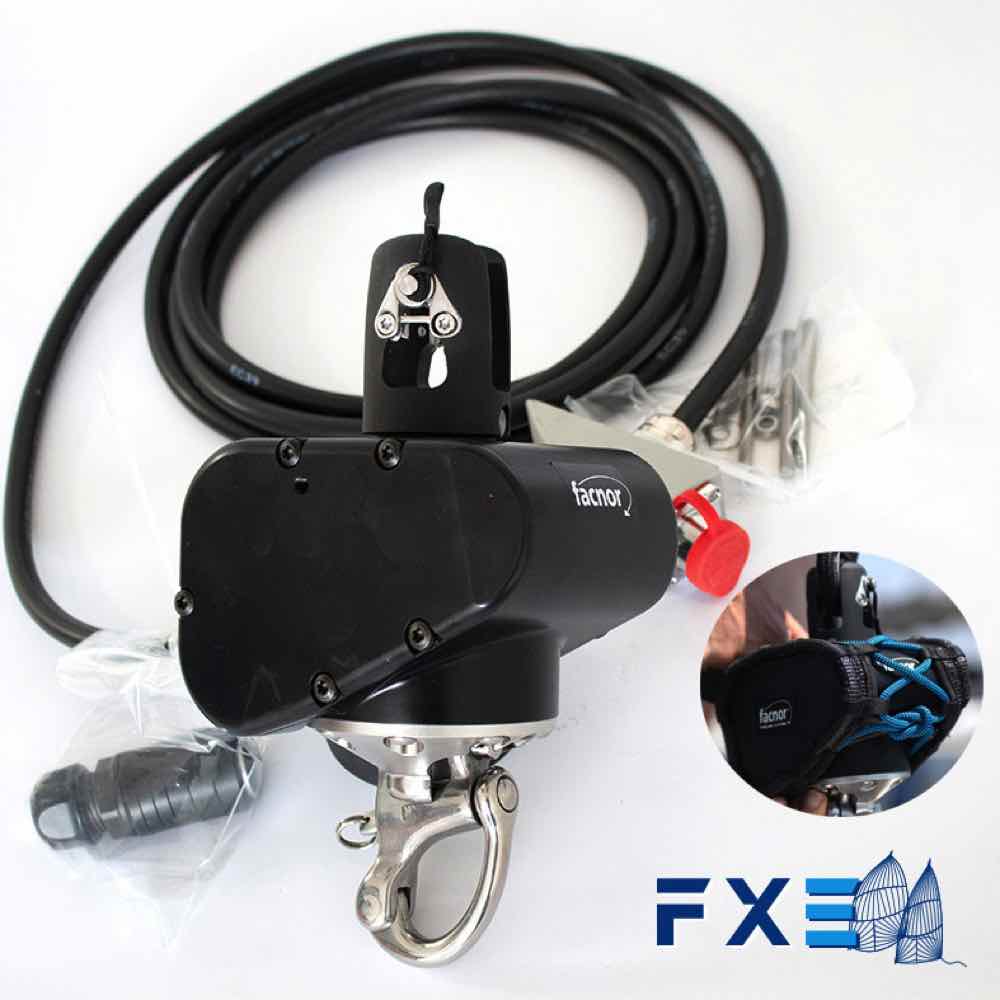

Facnor FXe 2500 Motorising Kit (Top Swivel NOT Included)
Electric Upgrade Kit for Existing FXe 2500 Furlers
The Facnor FXe 2500 Motorising Kit provides a simple and cost-effective way to upgrade an existing FX 2500 or compatible manual furling system to electric operation. Designed for sailing yachts between 9.5 and 12.5 metres and code sails up to 90 m², this 12V-only motorising kit delivers the same smooth and efficient furling performance as the complete FXe 2500 Standard Kit, while allowing you to retain your existing top furling swivel.
Built around Facnor’s sealed, maintenance-free electric drive, the motorising kit is ideal for owners looking to enhance sail-handling comfort without replacing the full furler assembly.
Key Features
-
12V Electric Motor Unit: Efficient, low-consumption drive system optimised for mid-size code sails.
-
Modular Upgrade Solution: Supplies all components required for electric furling, excluding the top swivel.
-
Maintenance-Free Design: Fully sealed drive unit for long-term reliability.
-
Flying Sail “In / Out” System: Designed specifically for code sails and gennakers.
-
Asymmetric Spinnaker Conversion: Compatible with the optional FAST 2500 top-down thimble.
What’s Included in the Motorising Kit
The FXe 2500 motorising kit includes all essential components for electric furling, excluding the top furling swivel:
-
Electric Continuous Line Drum / Drive Unit: Anodised aluminium, CNC-machined from solid, sealed low-profile design with wiring and deck plug connection.
-
Bottom Snap Shackle: For secure attachment to deck fittings (optional SSH+2500 solid friction sheave available).
-
Relay Box: Ensures safe and efficient power management.
-
Circuit Breaker: Electrical protection for reliable operation.
-
Wiring and Connectors: Marine-grade, pre-configured for straightforward installation.
-
Mounting Hardware: Required fittings and accessories for installation.
-
Storage Bag: For protection and organised storage of components.
Specifications
-
Recommended Boat Length: 9.5–12.5 m (32′–42′)
-
Maximum Sail Area: Code sails up to 90 m²
-
Voltage: 12V only
-
System Type: Electric “in / out” flying sail motorising kit
Why Choose the FXe 2500 Motorising Kit?
The FXe 2500 Motorising Kit is ideal for sailors who already own a compatible top swivel and want to upgrade to electric furling with minimal changes. Compact, lightweight and easy to install, it delivers fast, comfortable furling at the push of a button while retaining Facnor’s proven reliability and upgrade flexibility.
