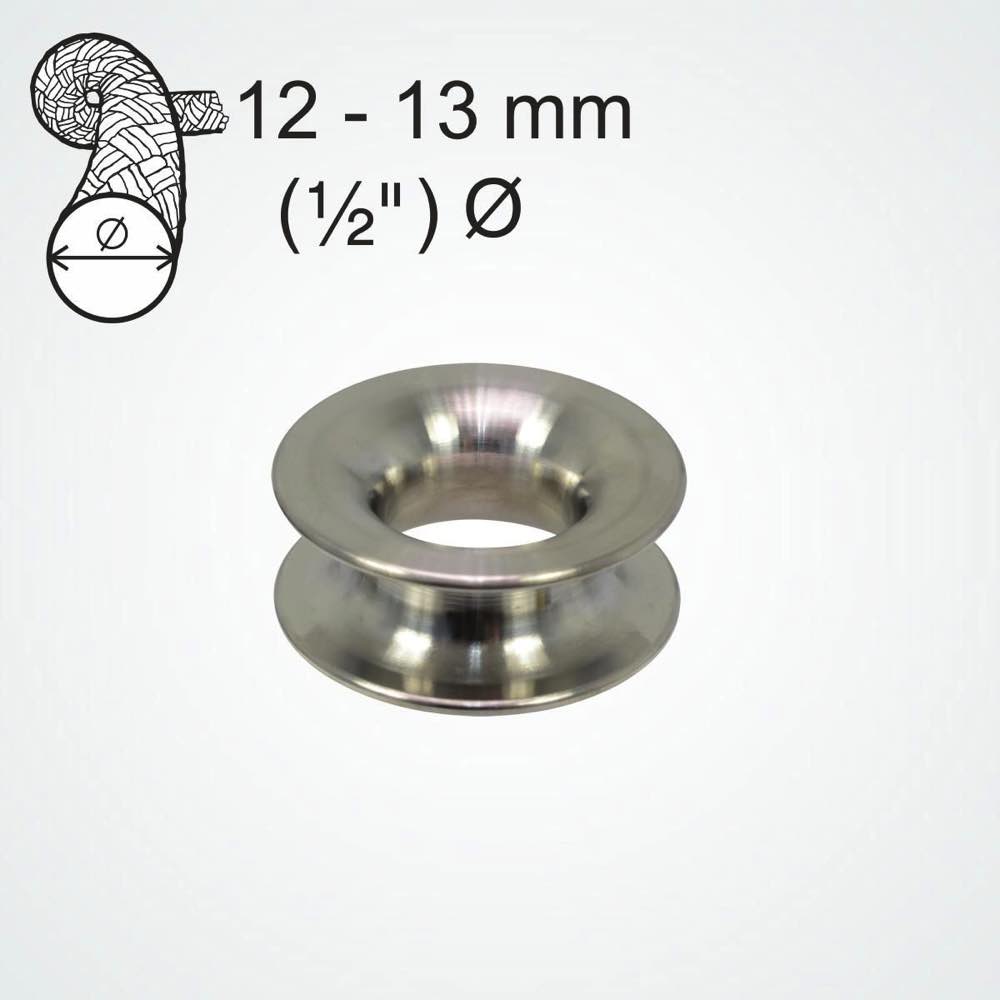

Clamcleat TITAN High Load Thimble – 12–13 mm Lines
Maximum load capacity in a compact titanium body
The largest in the TITAN range, this 12–13 mm thimble is built for serious loads — up to 3000 kg working load — while maintaining the lightweight, corrosion-proof advantages of titanium. Ideal for high-performance yacht rigging and custom Dyneema® terminations in standing or running rigging applications.
Key features
- Designed for 12–13 mm lines
- Grade 5 titanium
- Working load: 3000 kg
- Compact and lightweight
- Suitable for both static and dynamic high-load systems
Typical applications
- Forestay and backstay lashings
- High-load sheet and halyard attachments
- Custom Dyneema® standing rigging
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 13 |
| Recommended line - Min Ø (mm) | 12 |
| Inside Ø (mm) | 20 |
| Outside Ø (mm) | 45 |
| Material | Titanium |
| SWL (kg) | 3000 |
| Weight (g) | 32 |
