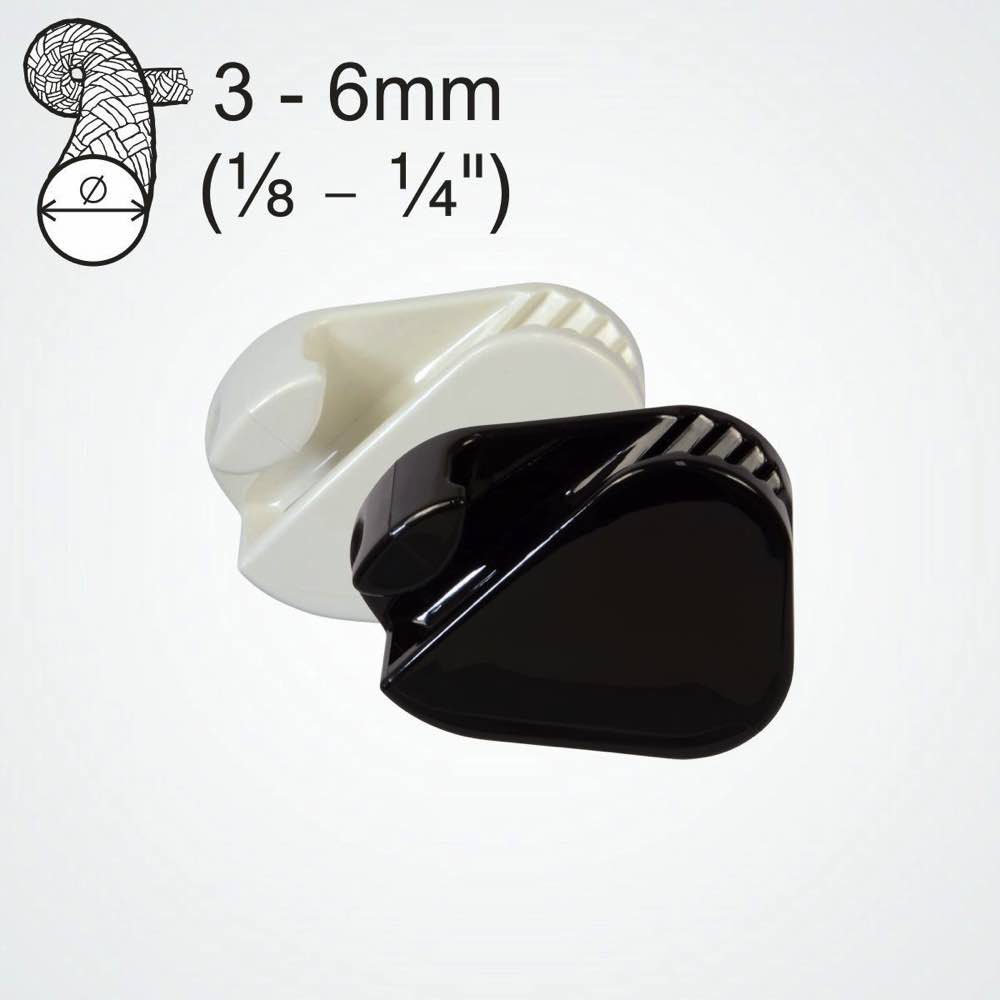

Clamcleat CL223 Nylon Loop Rope Cleat for 3–6mm Lines

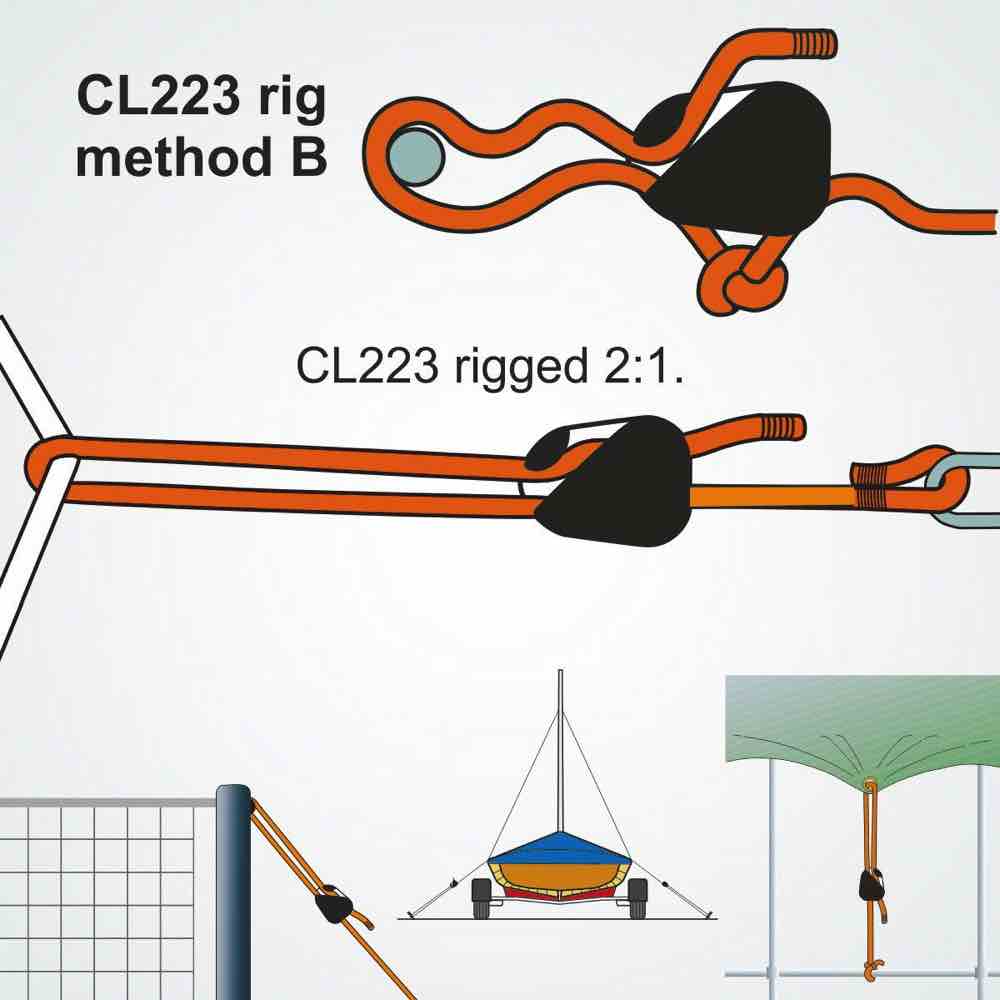

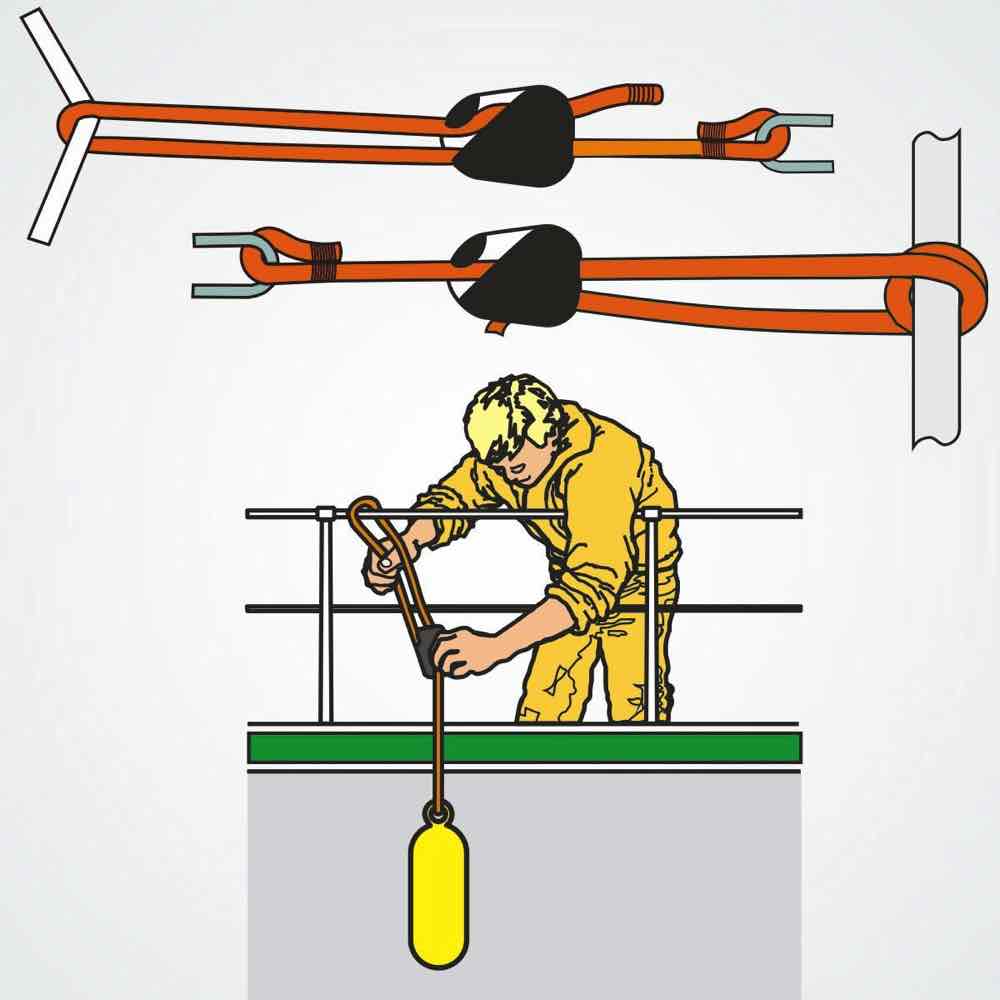

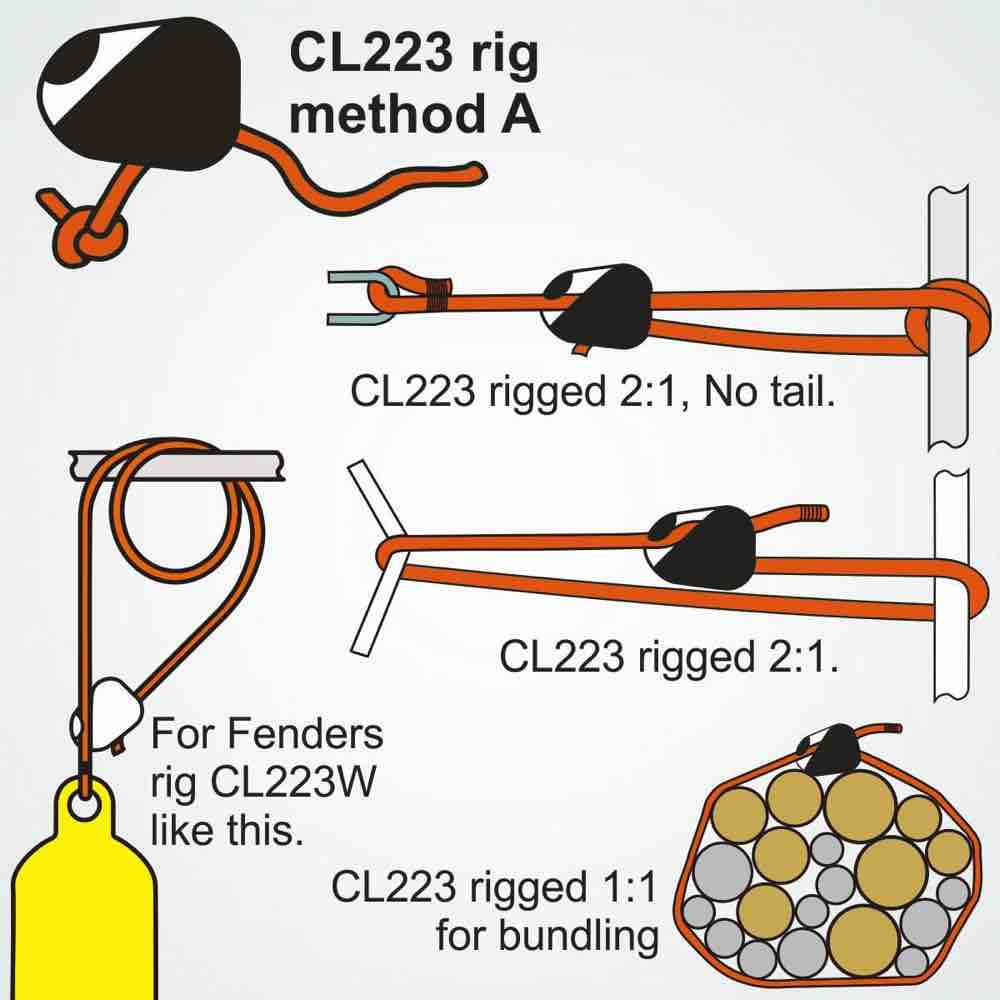

The Clamcleat CL223 Nylon Loop Rope Cleat is a lightweight, corrosion-proof cleat designed for quick and easy rope tensioning. Rigged directly onto a rope, it provides a secure hold that’s simple to adjust and release — ideal for use aboard small boats, for covers, control lines, and general-purpose tensioning.
Recently re-engineered, the updated CL223 design is:
- Slightly shorter and higher for improved ergonomics.
- No heavier, but with increased strength in key areas.
- Featuring a wider tooth opening for easier rope entry.
- More comfortable in hand, with smoother edges and better rope access.
- Offering deeper clearance beneath the cleat for knot seating and easier threading.

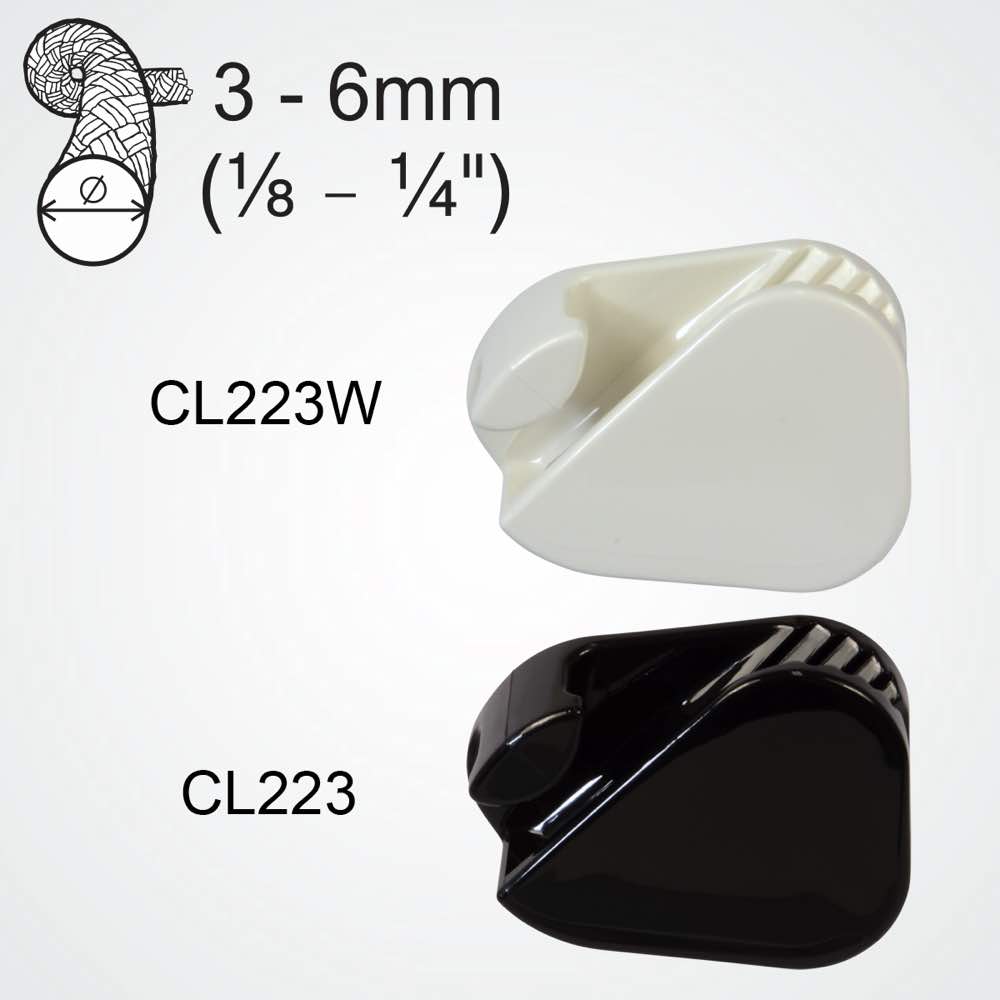

Made from UV-stable, outdoor-grade nylon, the CL223 is completely corrosion resistant and available in two standard colours:
- CL223 – Black Nylon
- CL223W – White Nylon

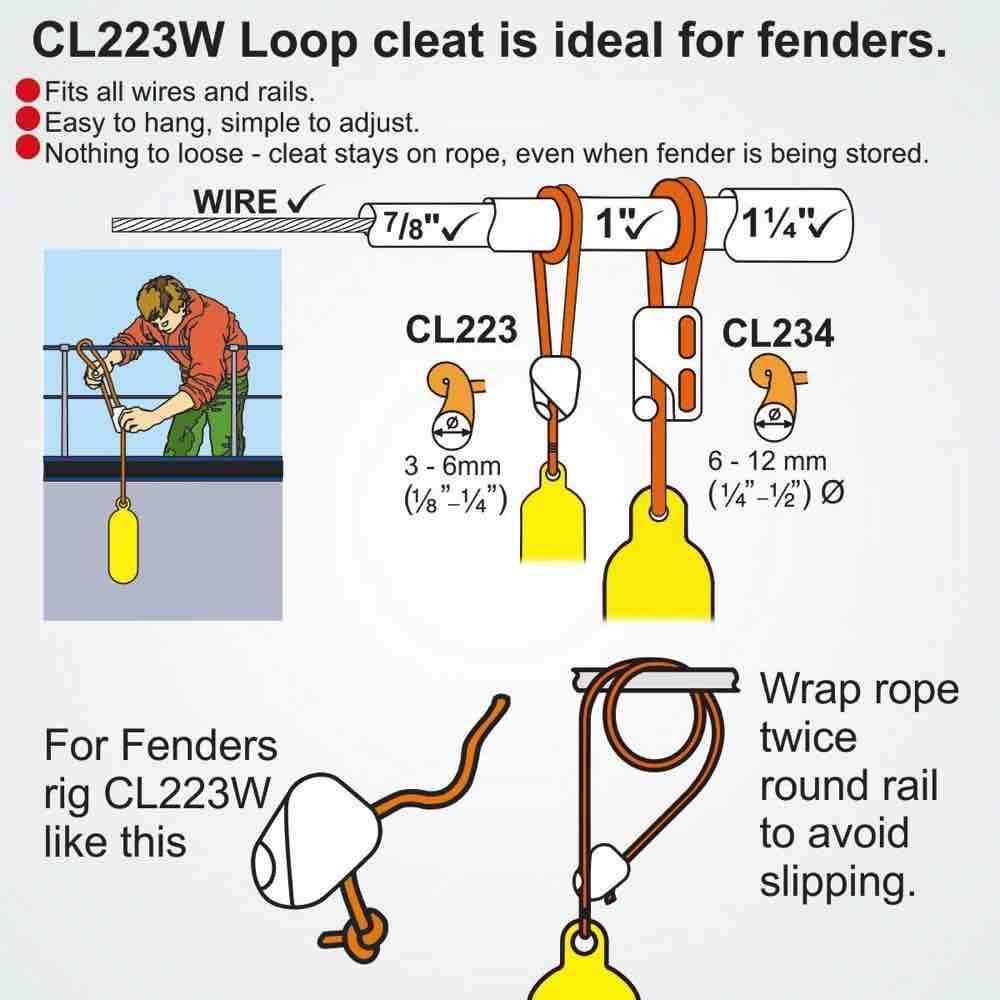

Perfect for tensioning lines on sail covers, awnings, and onboard canvas structures, or for lightweight rope systems on sailing dinghies and yachts.
Related models:
- CL276 – Similar size cleat with a different rigging configuration.
- CL826-72 – Closed-fairlead version for 4–6mm ropes.
- CL234 – Larger nylon cleat for thicker lines.
- CL253 – Aluminium cleat alternative for higher load applications.
Compact, reliable, and easy to handle, the CL223 Loop Rope Cleat offers fast, precise line tensioning and long-lasting performance in all marine environments.
Specifications
| Colour* | Black or White |
| Width (mm) | 16 |
| Length (mm) | 52 |
| Recommended line - Max Ø (mm) | 6 |
| Recommended line - Min Ø (mm) | 3 |
| Material | Nylon |
| Height (mm) | 39 |
| Weight (g) | 18 |
