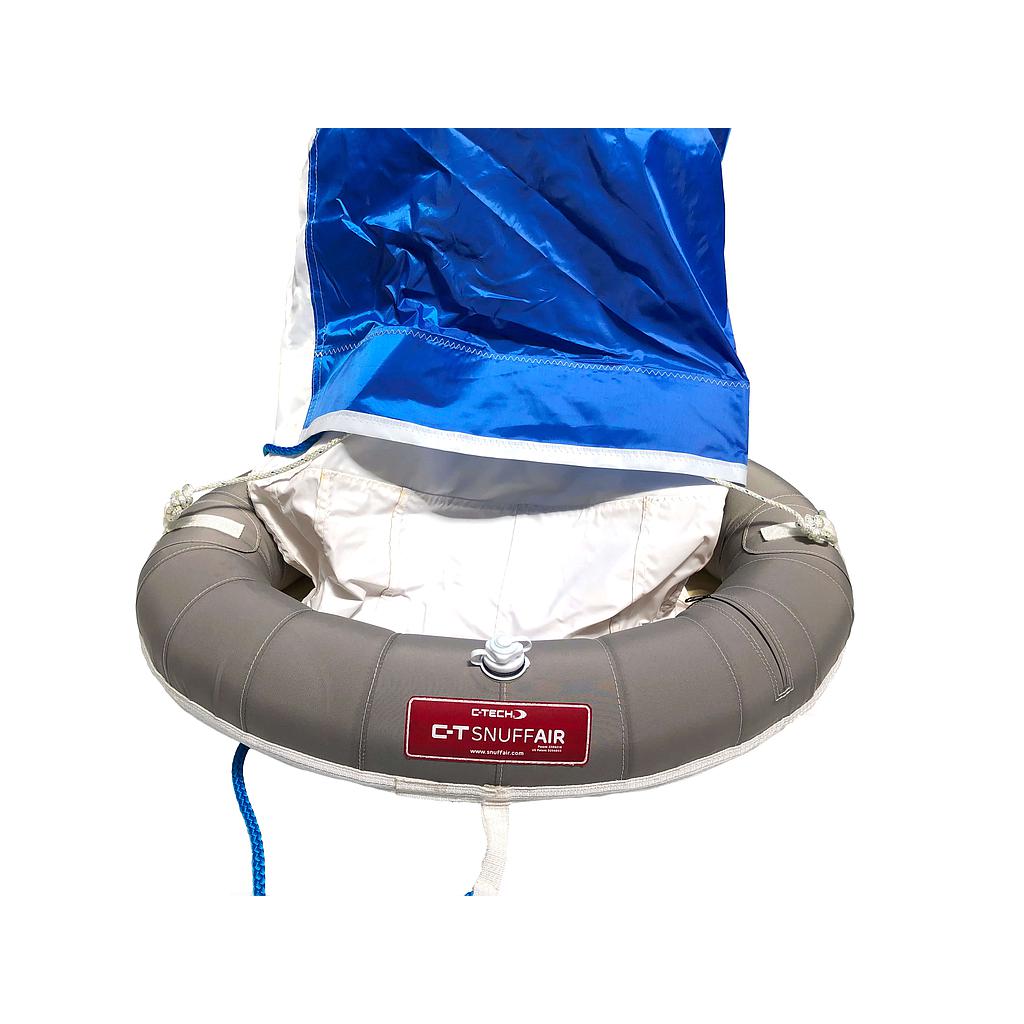

C-Tech SnuffAir Spinnaker Snuffer – Size 01D (21–25m)
The C-Tech SnuffAir Size 01D is a high-capacity inflatable spinnaker snuffer developed for larger sailing yachts and bigger asymmetric spinnakers. Designed for spinnaker areas from 200–399m² and leech lengths up to 24m, this system delivers controlled, safe sail handling without the weight, bulk or risk associated with traditional rigid hoop systems.
At the core of the design is a soft inflatable ring that replaces hard structures entirely. This dramatically reduces the risk of damage to rigging, sails, deck hardware and crew, while also making the system significantly easier to handle on deck—especially in demanding conditions or short-handed sailing scenarios.
Why Choose the SnuffAir System?
The SnuffAir stands apart from conventional snuffers thanks to its inflatable construction. Lightweight and flexible, it is easy to manoeuvre during hoists and drops, and packs down to approximately five times smaller than traditional hoop systems—freeing up valuable storage space onboard.
The system inflates quickly using a universal Boston valve and can be powered by a manual pump or onboard compressed air system. A built-in pressure relief valve ensures safe operation by preventing over-inflation and maintaining consistent working pressure.
Key Features and Benefits
- Inflatable soft ring eliminates hard edges for maximum onboard safety
- Ideal for larger spinnakers on cruising and performance yachts
- Lightweight construction improves handling and reduces crew effort
- Compact storage – up to 5x smaller than rigid hoop systems
- Fast inflation and rapid deflation for efficient sail handling
- Pressure relief valve protects against over-inflation
- Compatible with onboard air systems or standard pumps
- Leaves deck clear when stowed for improved safety and organisation
Advanced Sock & Chafe Guard Design
The Size 01D features an advanced chafe guard system that performs two key roles: protecting the inflatable bladder and creating a smooth, low-friction entry point for the spinnaker during hoists and drops.
The spinnaker sock is constructed from breathable polyester with excellent heat resistance, helping to manage friction and airflow when the sail is contained. A coloured sightline along the length of the sock allows crew to quickly identify twists—an essential feature for efficient handling, particularly in racing environments.
A modular zip system connects the chafe guard to the bladder and sock, allowing quick access for inspection, servicing or replacement of internal components.
Bladder & Inflation System
The inflatable bladder is engineered for reliability, ease of use and straightforward maintenance:
- Universal Boston valve for rapid inflation and deflation
- Recommended working pressure: 6 PSI
- Integrated pressure relief valve releases at approx. 10 PSI for safety
- Zip access for easy servicing or bladder replacement
This ensures consistent performance across a wide range of conditions while minimising maintenance downtime.
Rigging & Handling
Each SnuffAir system is supplied ready-to-use with all key components included:
- Inflatable ring with chafe guard and bridles
- Spinnaker sock with integrated control system
- Dyneema head strop with neoprene protection
- Up/down control line
The load-tested Dyneema head strop features an integrated dogbone for fast, secure connection to the spinnaker. On versions with a rope pocket, a control block is integrated into the strop for smooth and efficient operation.
The system is designed to prevent sock prolapse and enables controlled hoisting and snuffing using only the supplied control lines.
Sizing Guidance (Important)
The Size 01D is specified for:
- Spinnaker area: 200–399m²
- Maximum leech length: 24m
- Available snuffer lengths: 21m to 25m (1m increments)
Sock tube circumference: 1400mm
Bladder internal dimensions: 575 x 300mm
As with all snuffers, best practice is typically to select a length slightly shorter than the spinnaker leech. The extended size range allows flexibility for different sail plans and rig geometries, but selecting a length close to the working leech length will deliver the best handling performance.
A Safer, Smarter Solution for Larger Spinnakers
The C-Tech SnuffAir Size 01D provides a modern, high-performance alternative to traditional snuffers for larger yachts. By combining inflatable technology with robust materials and intelligent design, it delivers safer handling, reduced deck clutter and reliable performance—whether cruising offshore or racing at the highest level.
