Scout

Scout marine antennas are made by Scout srl in Carpi, near Modena in Italy, where the company has built antennas for professional and leisure boats since 1982. We stock three of its VHF antennas, from the 18 cm KM-10 to the 1.5 m KS-22, plus the nylon antenna bases and PL-259 plugs to mount and connect them. Read more below.

Scout marine antennas: made in Carpi since 1982

Scout srl was founded in 1982 in Carpi, in the province of Modena, as a small workshop making marine antennas for professional use. It still manufactures its antennas in Italy, at its Modena headquarters. Many retailers list its products under the name Scout Telecomunicazioni. Its range covers VHF antennas for boats from RIBs to yachts, together with the bases, mounts and connectors needed to fit them.


Choosing between the Scout VHF antennas we stock

All three work on the marine VHF band (156–162 MHz) at 50 ohm impedance with 3 dB gain, as Scout rates them, so the choice comes down to length, construction and where the antenna will go.


KM-10KM-3AKS-22
Length0.18 m1 m1.5 m
ConstructionFibreglass, UV-resistant glossStainless steel whipFibreglass, UV-resistant gloss
Weight160 g230 g390 g
Mounting1" × 14 threadStainless mast holder1" × 14 thread
SuppliedAntenna only, or as a set with 20 m RG58U cable, PL-259 and stainless bracketSet with 20 m RG58U cable, two PL plugs and mast holderAntenna

Which Scout marine antennas for which boat

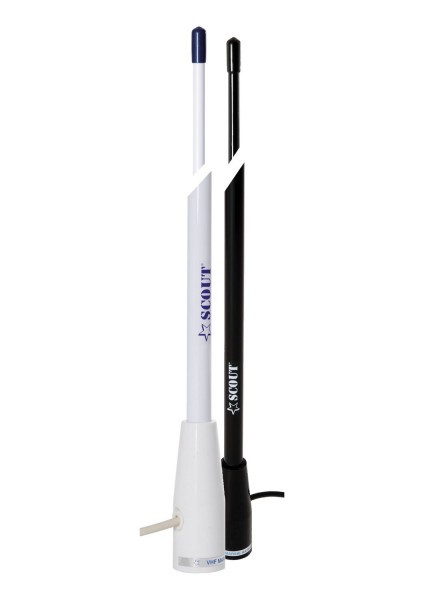

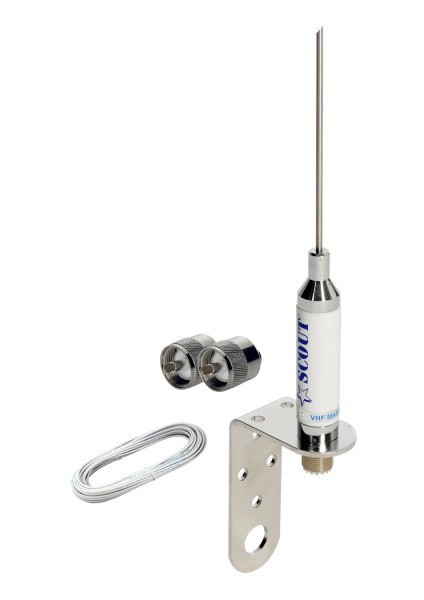

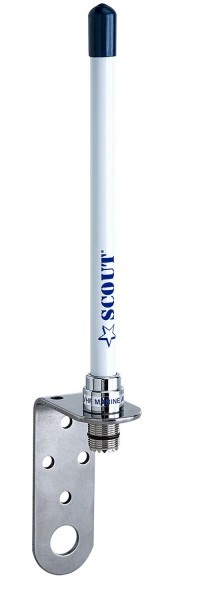

The 1 m KM-3A is the usual choice for a sailing yacht's masthead: light, with a stainless whip and its own mast holder. The 1.5 m KS-22 suits a motorboat's radar arch or a sailing yacht's pushpit, where a longer fibreglass antenna stands clear of the deck. The 18 cm KM-10 is for RIBs, tenders and consoles where a long whip is impractical, and as a backup antenna on a yacht. Many offshore events require a backup for when the masthead antenna fails.


Height, gain and cable

VHF works by line of sight, so the height of the antenna matters more than its length. As a rule of thumb, an antenna 2 m above the water reaches a horizon of about 5 miles, and one at 15 m about 10. A 3 dB antenna keeps a broad pattern that still reaches the horizon when a sailing yacht heels; higher-gain antennas flatten the pattern and suit stable motorboats. Cable losses add up: RG58, as supplied in the KM-3A and KM-10 sets, is fine for short runs, so cut it to the length you need rather than coiling the surplus. For a long masthead run, consider a lower-loss cable such as RG8X or RG213.


Mounting: antenna bases and PL-259 plugs

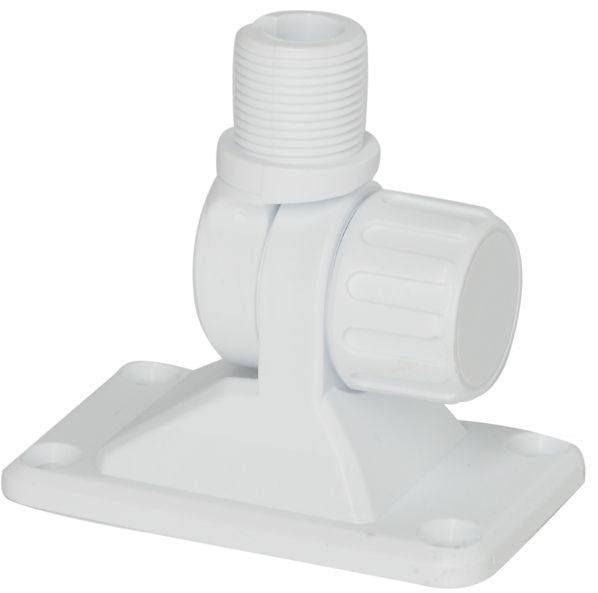

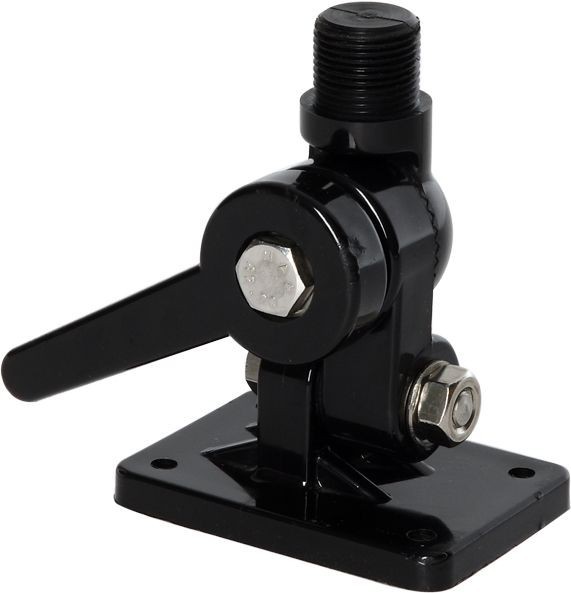

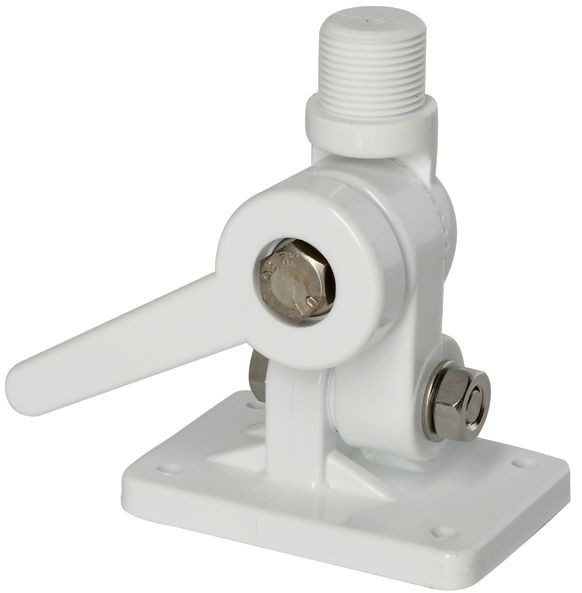

The KM-10 and KS-22 screw onto a standard 1" × 14 thread, used by most marine antenna mounts. Scout's nylon antenna bases are made from UV-resistant nylon and come with a mounting kit: the PA-3, in white or black, adjusts four ways and the PA-3C two ways. The PL-259 plug connects RG58 cable to the radio.


Beyond the Scout marine antennas we stock

Scout also makes TV, GPS and other antennas for boats, and a wider range of mounts. Upffront stocks the VHF antennas, bases and plug listed here. For other makes and antenna types, see our marine antennas category; to go with them, see our VHF radios.


Scout FAQ

Who makes Scout antennas, and where?

Scout srl, founded in 1982 in Carpi, near Modena, which manufactures its antennas in Italy.


Is Scout Telecomunicazioni the same company?

Yes. It is the name many retailers use for Scout srl's antennas.


Which Scout products does Upffront sell?

The KM-10, KM-3A and KS-22 VHF antennas, the KM-10 as a set with cable, the PA-3 and PA-3C antenna bases, and the PL-259 plug.


Will a Scout antenna fit my existing mount?

The KM-10 and KS-22 use the standard 1" × 14 thread found on most marine antenna mounts. The KM-3A comes with its own stainless mast holder.
