The Pauger carbon vang is a rigid boom vang moulded in carbon fibre, with a gas spring that holds the boom up and an internal 5:1 or 7:1 purchase that pulls it down. Size M is for yachts of roughly 25 to 38 ft and size L for larger yachts, and each vang is cut to the length you specify. Pauger Carbon Composites builds it in Hungary. Read more below.

$ 2,307.94
5% Off
$ 2,429.41
$ 2,808.42
5% Off
$ 2,956.23
$ 2,481.18
5% Off
$ 2,611.76
$ 2,654.42
5% Off
$ 2,794.12

The Pauger carbon vang: a rigid boom vang in carbon fibre


A rigid vang does two jobs. Under load it pulls the boom down to control leech tension, which matters most when the mainsheet is eased on a reach and the boom would otherwise lift. At rest, its spring pushes the boom up, so the boom stays at height when the mainsail is lowered or reefed. On many yachts, that lets a rigid vang replace the topping lift.

The Pauger carbon vang does this with a carbon fibre tube, a gas spring with 100 mm of stroke, and an internal purchase led along the tube. The tackle sits inside, so there are no external blocks to snag sheets or crew. Pauger finishes the outer surface in clear coat varnish and states that the carbon vang needs less maintenance than a metal one.


Choosing a Pauger carbon vang: size M or size L


Choose the size by yacht size and boom load, then specify the length. Pauger builds two sizes, which differ in spring force, purchase, rope and fittings:


Size MSize L
Typical boat size (Pauger)25–38 ft38–50 ft
Gas spring return force1,200 N2,500 N
Gas spring stroke100 mm100 mm
Internal purchase5:17:1
Control line diameter6 mm8 mm
Fitting pin diameter10 mm14 mm
Complete weight2–2.4 kg4–4.4 kg
Lengths at Upffront800–1,795 mm and 1,796–2,000 mm1,300–1,780 mm and 1,781–2,200 mm

Spring force and purchase: matching the vang to the boom


The return force has to hold up the weight of the boom, the furled or flaked mainsail and the mainsheet system, without fighting you when you trim. On a yacht near the size boundary, or with a heavy boom, in-boom furling or a large stack pack, size L's 2,500 N spring and 7:1 purchase are the safer choice. On a lighter boom, size M's 1,200 N spring and 5:1 purchase are easier to trim. The purchase also sets the line: 6 mm for M and 8 mm for L, so check that your vang clutch or cleat takes that diameter.


Ordering a Pauger carbon vang: length and fittings


Each vang is cut to order, so the exact length has to be given when you order. Each size is listed in two length bands; pick the band that contains your length. Measure between the pin centres of the mast fitting and the boom fitting, with the boom where you want it held at rest. Then check the fitting dimensions against your gooseneck and boom: the upper fitting takes a 10 mm pin on size M and a 14 mm pin on size L, and Pauger lists the width and depth of both end fittings on its specification sheet. If your vang tangs differ, ask us before ordering.


pauger carbon vang

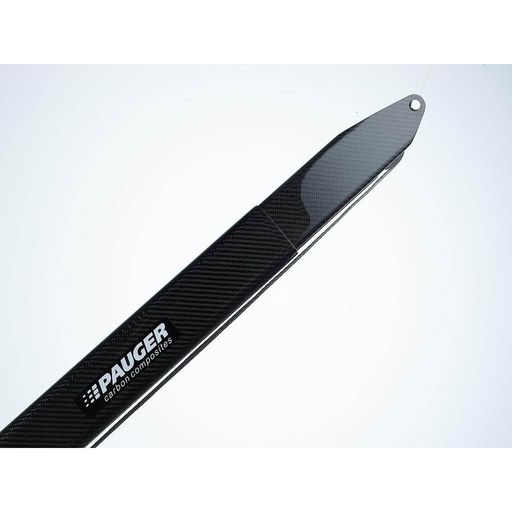

Pauger carbon rigid boom vang


Rigid carbon vang or soft kicking strap?


A soft vang, or kicking strap, is a block-and-tackle between the mast foot and the boom. It is lighter and cheaper, but it only pulls down, so the boom needs a topping lift. A rigid vang adds boom support and keeps the boom off the coachroof and the crew's heads when the main is down. Metal rigid vangs do the same job. Among the rigid boom vangs we stock, the Pauger is the carbon option, chosen where weight aloft and a clean deck layout matter.


Installation and use


The lower fitting attaches at the mast near the gooseneck and the upper fitting to the boom tang, and the control line runs from the vang to a cleat or clutch. Before relying on the spring, check that the vang angle to the boom is close to the one the length was cut for: a shallower angle reduces the effective support. Ease the vang before hoisting so the spring does not fight the halyard.


Gas spring and maintenance


Rinse the vang and its fittings with fresh water after salt water sailing. Check the end fittings and pins for wear and the control line for chafe at its exit. A gas spring slowly loses pressure over the years: if the boom starts to sag at rest, the spring needs replacing. Ask us for a replacement rather than fitting a spring of a different force.


About Pauger Carbon Composites


Pauger was founded in Hungary in 1990 by Dénes Paulovits. It started in composite boatbuilding before concentrating on carbon composites and mast production. Pauger builds carbon masts, booms, standing rigging, vangs and spinnaker poles from pre-preg carbon in female moulds. At Upffront the Pauger range is the carbon vang. For more on how it performs on board, read our blog post "Vang-on!" with Pauger Performance and Style.


Pauger carbon vang FAQ


What size Pauger carbon vang do I need?

Pauger gives size M for yachts of about 25 to 38 ft and size L for about 38 to 50 ft. Near the boundary, or with a heavy boom or in-boom furling, choose size L for its 2,500 N spring and 7:1 purchase.


Can a rigid vang replace the topping lift?

On many yachts, yes: the gas spring holds the boom up when the mainsail is lowered. Check that the spring force suits your boom weight, and keep a way to support the boom if the spring fails.


How do I measure for a Pauger carbon vang?

Measure pin centre to pin centre between the mast and boom fittings, with the boom at its resting height, and give that length when ordering. The vang is cut to it.


Is a carbon boom vang worth it over aluminium?

It saves weight and has no external tackle, and Pauger states it needs less maintenance than a metal vang. An aluminium rigid vang does the same job for less money if weight is not a priority.


Does Upffront sell Pauger masts?

No. Pauger builds carbon masts and booms to order, but the Pauger range at Upffront is the carbon vang.
