What is Hella Marine Known for in Sailing Applications?

Hella Marine is primarily recognised for its LED navigation light systems, developed to meet international collision regulations (COLREG 72) and relevant certification standards such as USCG and ABYC compliance where applicable. Within the sailing segment, the brand is commonly selected for installations where electrical efficiency, sealed construction, and defined optical performance are key requirements.

Unlike legacy incandescent navigation lights, Hella Marine units are based on integrated LED modules, removing the need for bulb replacement and reducing susceptibility to filament failure under vibration or shock loading.

LED Technology and Electrical Performance

A defining feature of Hella Marine navigation lights is the use of fully sealed LED electronics combined with multivolt circuitry. Most units operate within a 9–33V DC range, allowing direct compatibility with both 12V and 24V onboard systems without additional converters.

Key electrical characteristics include:

- Low current draw, supporting reduced onboard energy consumption

- Stable light output under voltage fluctuation

- No inrush current associated with filament bulbs

- Long service life, typically rated in the tens of thousands of operating hours under controlled conditions

For offshore and cruising yachts, this reduction in power consumption is particularly relevant when running navigation lights for extended periods under sail.

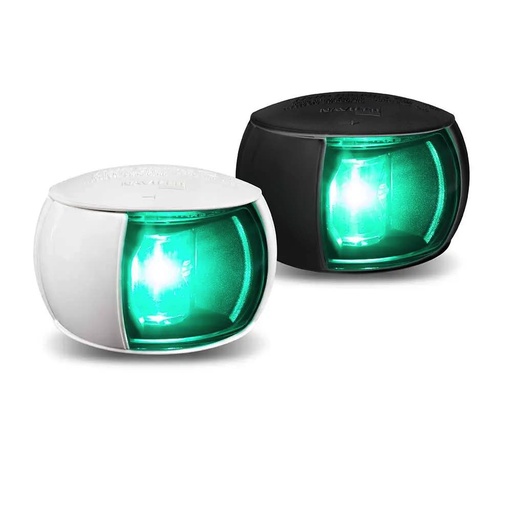

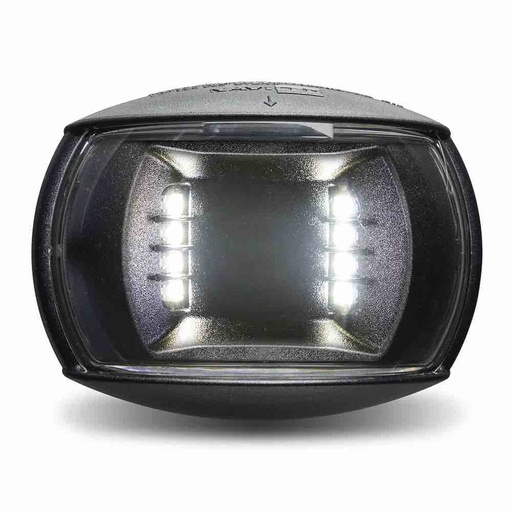

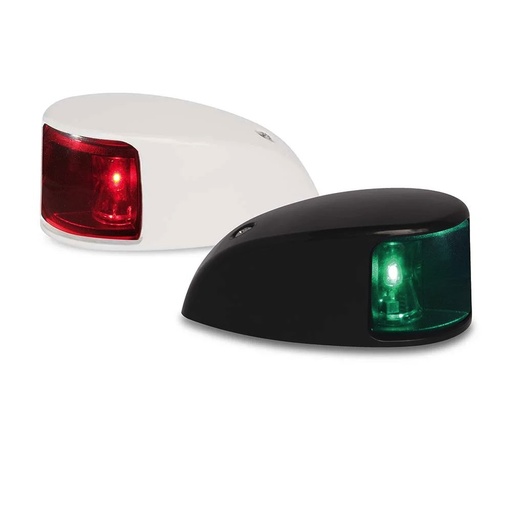

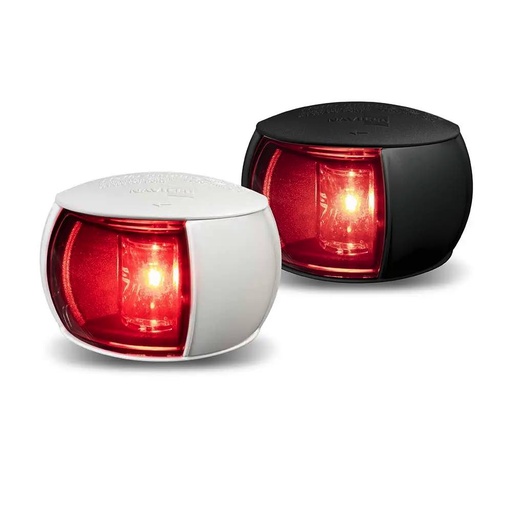

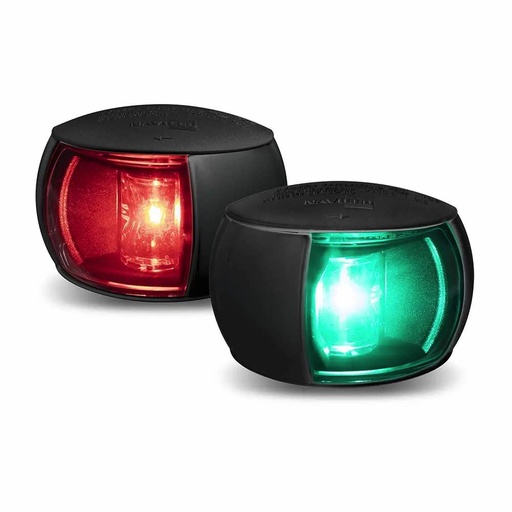

Hella Marine NaviLED Compact Lights

Are Hella Marine Navigation Lights COLREG Compliant?

Hella Marine navigation lights are designed to meet COLREG 72 requirements, including:

- Defined sector angles (e.g. 112.5° sidelights, 135° stern, 225° masthead)

- Certified visibility ranges (commonly 2NM or 3NM depending on vessel size and model)

- Consistent light intensity across the required arc

Compliance is achieved through controlled optical design, combining precision lens geometry with calibrated LED output. This ensures that visibility is maintained without over-illumination or sector distortion, which can occur in non-compliant lighting systems.

Optical Performance and Visibility

From a technical standpoint, Hella Marine lights are engineered to deliver uniform light distribution and stable colour output. LED sources are matched with UV-stabilised lenses to maintain clarity over time, reducing the risk of yellowing or optical degradation.

Important performance factors include:

- Accurate colour rendering for red, green, and white sectors

- Consistent intensity across the full visibility arc

- Resistance to UV exposure and saltwater-induced degradation

These characteristics are critical for maintaining compliance over the lifecycle of the installation, particularly on vessels operating offshore.

Installation and Integration

Hella Marine navigation lights are designed for straightforward installation across a range of sailing yacht configurations. Common mounting formats include:

- Surface-mounted sidelights for pulpits and pushpits

- Masthead units, including tri-colour and anchor combinations

- Compact all-round lights for stern or anchor use

All units feature sealed cable entry systems and are typically rated to high ingress protection standards such as IP6K7 or equivalent, ensuring resistance to water ingress in exposed positions.

The sealed design means there are no serviceable internal components, so installation quality—particularly cable sealing and mounting alignment—is critical to long-term reliability.

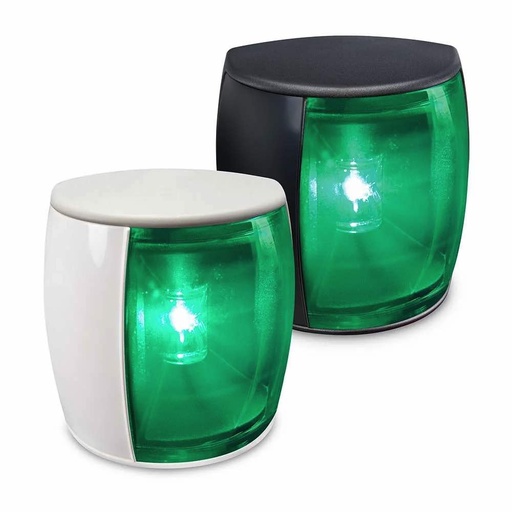

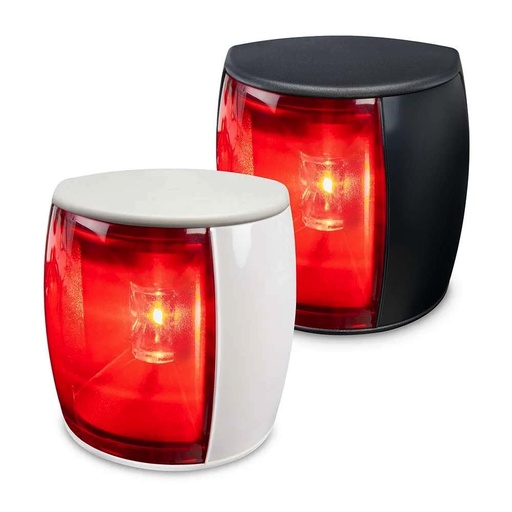

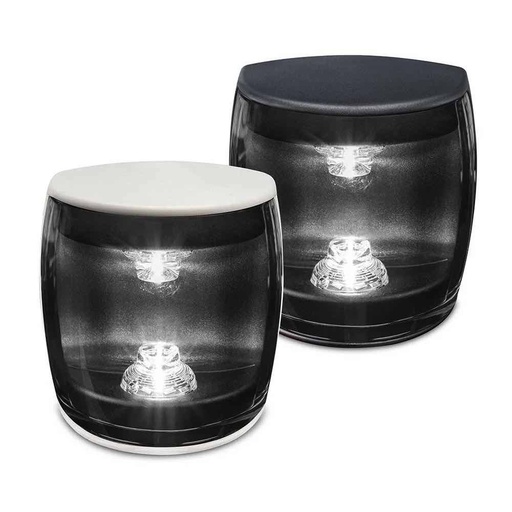

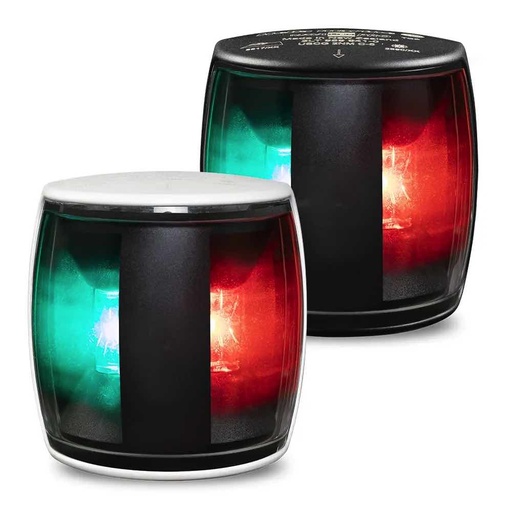

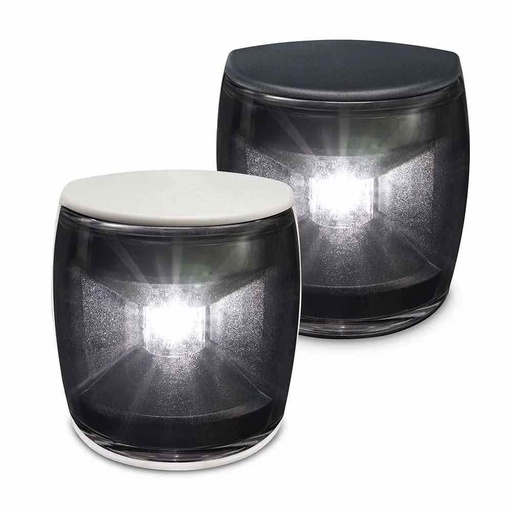

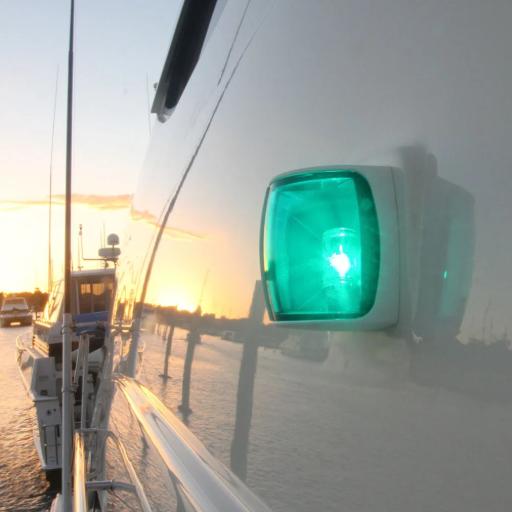

Hella Marine NaviLED Pro Lights

Durability in Marine Environments

A core requirement for navigation lighting is long-term resistance to saltwater, UV exposure, and mechanical stress. Hella Marine lights are constructed using:

- UV-resistant polymer housings

- Impact-resistant lenses

- Fully sealed electronic assemblies

This construction minimises common failure modes such as corrosion, condensation inside the unit, or seal degradation. As a result, these lights are suited to offshore sailing, racing yachts, and long-distance cruising applications where reliability is a priority.

Typical Applications on Sailing Yachts

Hella Marine navigation lights are used across a range of standard sailing configurations:

- Bi-colour bow lights for smaller yachts and coastal vessels

- Separate port and starboard sidelights for larger installations

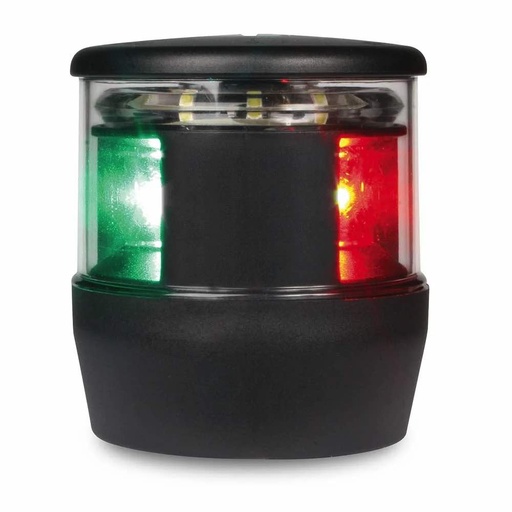

- Tri-colour masthead lights, reducing deck-level power consumption when under sail

- All-round white and anchor lights for compliance at rest

The choice of configuration depends on vessel size, rig type, and operational profile, particularly whether the yacht is primarily sailing offshore or operating in coastal waters.

Reliability, Maintenance, and Lifecycle Considerations

One of the main differences compared to traditional navigation lighting is that Hella Marine products use sealed LED units with no replaceable bulbs. This has several implications:

- Reduced maintenance requirements

- Elimination of filament-related failures

- Lower likelihood of water ingress due to sealed construction

However, in the event of electronic failure, units are typically replaced rather than repaired. This makes correct initial specification and installation important for long-term performance.

Summary on Hella Marine Lights

Hella Marine navigation lights provide a technically focused solution for sailing yachts requiring COLREG-compliant, low-power, and maintenance-free lighting systems. By combining sealed LED modules, multivolt electrical design, and controlled optical performance, these lights are suited to both offshore and coastal applications where reliability and compliance are essential.
