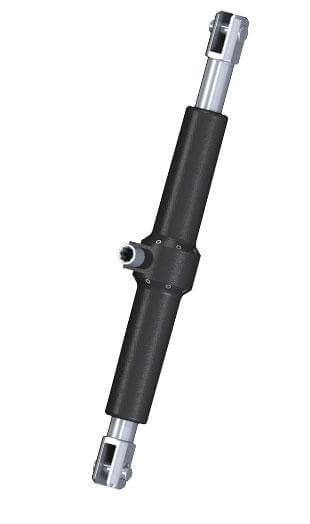

Specifications for Bamar BTM handle stay adjuster ø10 - 900 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Dimensions | |
| A (mm) | 89 |
| B Max (mm) | 900 |
| B Min (mm) | 600 |
| C (mm) | 27 |
| D (mm) | 16 |
| Pin Ø (mm) | 16 |
| Stroke (mm) | 300 |
| Wire Ø (mm) | 10 |
| Rigging | |
| Rod dash size | -17 |
| Undefined | |
| Size | 10 |
| Weight | |
| Weight (g) | 7000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
