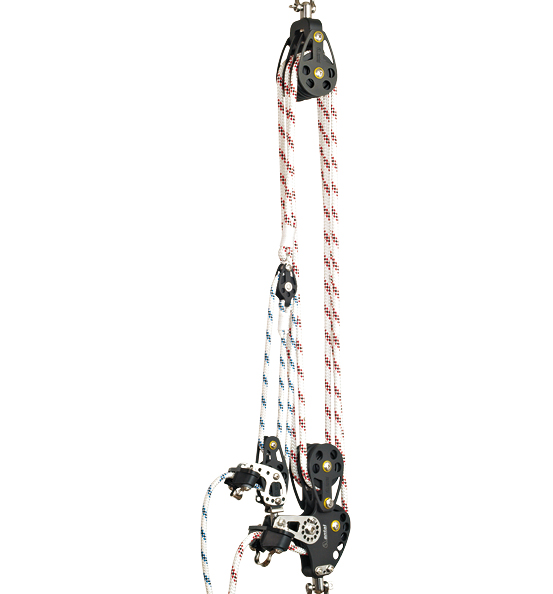

Antal F6 Two Speed Mainsheet Tackle – Complete

The Antal F6 Two Speed Mainsheet Tackle – Complete is a powerful and versatile mainsail control system designed for sailing yachts up to approximately 40 feet. Combining 6:1 and 18:1 mechanical advantages, this system delivers both strong primary trimming power and highly precise fine-tuning, making it ideal for larger boats and higher load applications.

Based on Antal’s twin-speed concept, the system operates with two independent control lines: a 10 mm line for the primary 6:1 purchase and a 6 mm line for the 18:1 fine-tune system. This configuration improves efficiency, reduces the overall sheet length required, and allows intuitive control across a wide range of sailing conditions.

System Configuration

This complete mainsheet system consists of three specialised components:

• Lower Block:
  Heavy-duty block with twin inline sheaves and two independent cam cleats, allowing separate control of the 6:1 and 18:1 systems from a single compact unit.
• Boom Block:
  A triple block (Ø60 mm sheaves) mounted on the boom, providing the primary reeving for the 6:1 system and ensuring smooth load distribution.
• Fine-Tune Block:
  A single web block (Ø34 mm) with becket, spliced into the fine-tune line. This creates an additional 3:1 purchase on the 6:1 system, resulting in a total 18:1 fine-tune ratio.

Key Features

• Dual-Speed Functionality (6:1 & 18:1)
  • 6:1 for powerful primary trimming
  • 18:1 for precise adjustment under high load
• Independent Control Lines
  Two separate lines allow seamless transition between speed and precision without reconfiguring the system.
• Enhanced Fine-Tune Capability
  The additional 3:1 stage delivers exceptional control, ideal for larger yachts and higher loads.
• Optimised Sheave Configuration
  Large diameter sheaves improve efficiency, reduce friction, and enhance overall system performance.
• Reduced Sheet Length
  The twin-speed layout minimises rope requirements compared to traditional high-purchase systems.
• Excellent Block Alignment
  Ensures smooth articulation and effective operation from either side of the cockpit.
• Independent Cam Cleats
  Two separate cam cleats provide secure, intuitive handling of both control lines.
• Marine-Grade Construction
  Manufactured from anodised aluminium and stainless steel for durability and corrosion resistance.

Specifications

• Mechanical Advantage: 6:1 and 18:1
• Sheave Sizes: 60 mm (main system), 34 mm (fine-tune block)
• Control Lines:
  • 10 mm (primary 6:1 system)
  • 6 mm (18:1 fine-tune system)
• Safe Working Load (SWL): 1000 kg
• Recommended Boat Size: Up to 40 ft (12 m)

The Antal F6 is the most powerful option in the two-speed range, offering exceptional control and load-handling capability while maintaining a compact and efficient system layout—ideal for sailors who demand maximum precision and performance on larger yachts.
